How Do You Select Suitable Gold Leaching Equipment for Different Leaching Methods?

What Are the Main Gold Leaching Methods Used in the Industry?

How Do Different Gold Leaching Methods Work?

Gold leaching forms a vital stage in gold extraction. It dissolves gold from ore with a chemical solution. The most common approach is cyanidation. This leaching technique proves highly effective and is broadly applied for pulling out gold. Cyanidation works by dissolving gold in a cyanide solution. It often uses oxygen to aid the process. Experts prefer it due to its strong performance on oxide and free-milling ores.

For tough ores that cyanide struggles with, like those rich in copper, thiosulfate leaching serves as a solid option. This approach employs ammonium thiosulfate along with copper as catalysts to dissolve gold. It presents a greener choice in places where cyanide faces bans.

Sometimes, operators apply gravity concentration before chemical leaching. This targets larger gold particles with tools such as jiggers and shaking tables. After recovering the coarse gold, they process the leftover material through leaching to get the smaller particles.

Cyanidation comes in two primary styles: heap leaching and tank leaching. Heap leaching suits low-grade ores best. It stacks crushed ore on pads and drips the leach solution over it gradually. Tank leaching fits higher-grade materials better. It mixes slurry in big stirred tanks to boost gold recovery.

What Factors Influence the Choice of a Leaching Method?

The ore's mineral makeup stands as a top factor. Oxide ores with big gold grains process easily. They might just need gravity separation plus heap leaching. Refractory ores hold fine gold locked in sulfides. These often require roasting or pressure oxidation first before leaching.

Environmental rules matter a lot too. In spots with tight limits on cyanide, thiosulfate or other cyanide-free ways become essential. Capital costs and running expenses count as well. Heap leaching saves money for low-grade ores in far-off areas. Tank leaching costs more upfront but offers quicker and tighter control.

How Does Gold Leaching Equipment Vary by Method?

What Equipment Is Required for Cyanidation Processes?

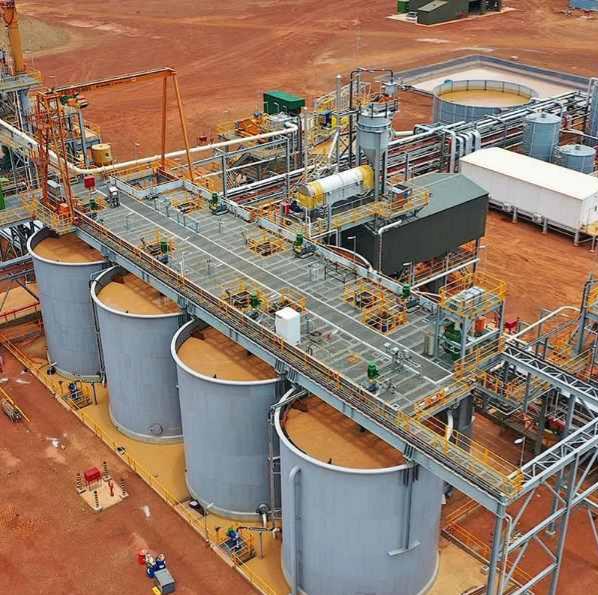

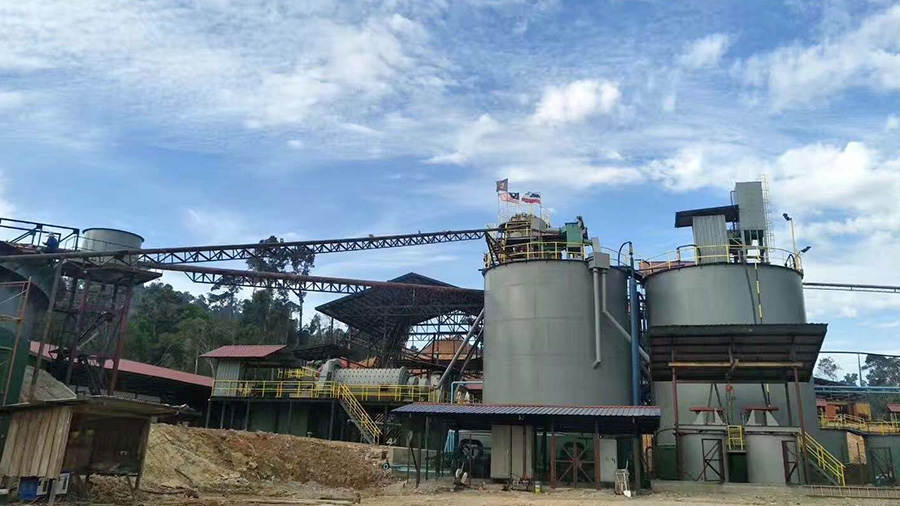

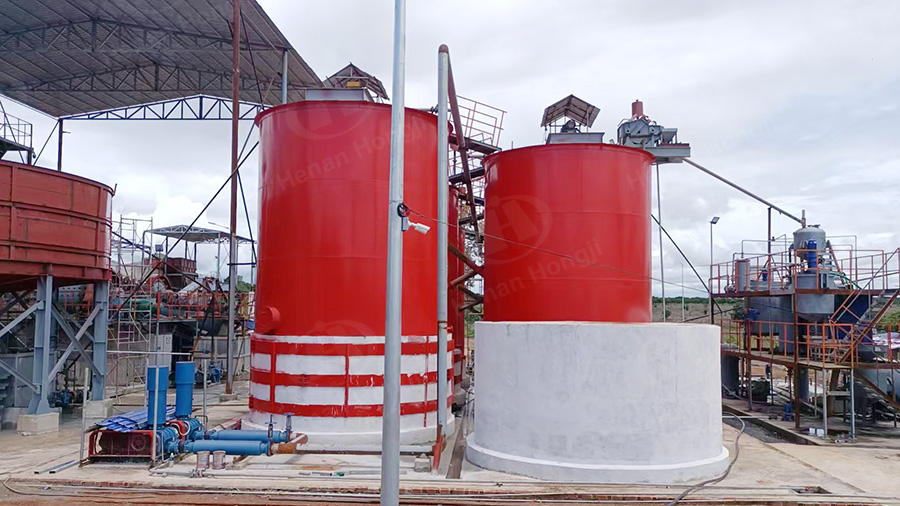

In cyanidation, agitation tanks play a key role. They ensure even mixing of the cyanide solution with ore pulp. The vertical mechanical stirring tank ranks as a popular choice in hydrometallurgical leaching. These tanks work under normal air pressure or higher pressure. The setup depends on the operation's size and ore type.

After leaching, thickeners and filters separate solid leftovers from the gold-rich solution. The gold recovery stage often uses carbon-in-pulp (CIP) or carbon-in-leach (CIL) setups. The cyanide pulp flows into the stirring adsorption tank, also called the carbon slurry tank. Operators add carbon to the leaching tank. Then, the carbon pulls in the gold from the pulp, forming gold-loaded carbon. The gold CIP process covers seven steps: preparing the leaching pulp, cyanide leaching, carbon adsorption, desorption of gold-loaded carbon, electrolysis for muddy gold, recycling de-gold carbon, and handling the leaching pulp.

The last recovery step involves desorption and electrolysis systems. The desorption electrolysis system introduces anions that activated carbon easily grabs. These anions push out AU(CN)2- for desorption. Electrolysis then recovers the desorbed gold into ingots.

What Machines Are Used in Heap Leaching Operations?

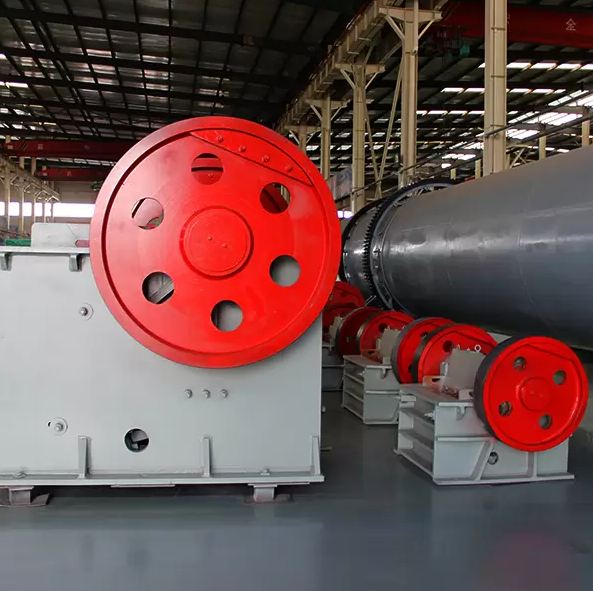

Heap leaching needs good ore prep through crushing gear. This keeps particle size right for water flow. Once crushed, conveyors move the ore to heap pads. There, it stacks in an orderly way. A smart sprinkler setup spreads the leach solution evenly across the heap.

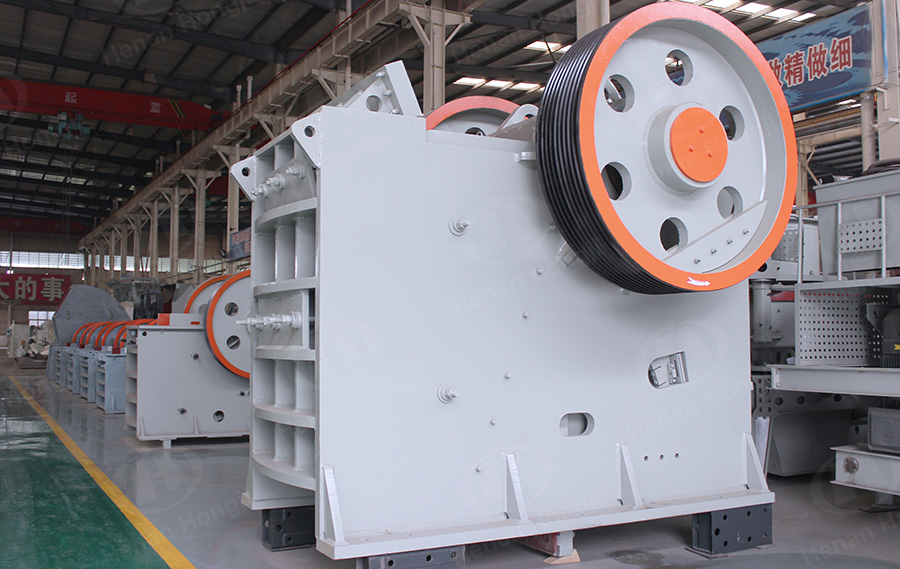

At Hongji Mine Machinery, our heap leaching tools include tough crushers, stacking conveyors, and rust-proof solution spreaders. We build them for lasting strength in harsh outdoor spots. Our product list covers special crushing gear, transport systems, and leaching tools fit for heap leaching jobs.

How Is Equipment Adapted for Thiosulfate or Alternative Leachants?

Thiosulfate chemistry sets it apart from cyanidation. So, it calls for custom gear. Operators must control pH and redox levels with reactors made for this. Rather than activated carbon, resin-in-pulp (RIP) systems take over. That's because thiosulfate sticks poorly to carbon.

Hongji Mine Machinery provides tailored engineering to fit gear for non-cyanide routes. Our setups guarantee top results, no matter if you pick thiosulfate or new tech.

How Do You Choose Suitable Gold Leaching Equipment Based on Ore Characteristics?

What Role Does Ore Type Play in Equipment Selection?

Oxide ores handle simply. They often work with basic setups like heap leaching, using plain crushing and stacking systems. Refractory ores with sulfides or organic carbon need pre-treatment. Roasting or pressure oxidation comes first to make leaching work well.

This shapes equipment picks directly. Refractory ores might demand autoclaves, extra filters, and upgraded CIP/CIL systems for better recovery. For leaching pulp prep, grind the gold-bearing material to a size fit for cyanidation. Usually, aim for under 28 mesh.

How Do Throughput Requirements Affect Equipment Sizing?

Large-scale mining needs gear matched to the volume. Think bigger agitation tanks, stronger thickeners, and solid filters to keep things running smooth. Leaching tank sizes typically run 50-100m³. Now, they grow larger, with industrial units at 120-400m³ in use.

For small operations or outlying sites with slim setup options, modular gear adds ease. Hongji Mine Machinery supplies modular options that move easily and set up fast. These suit projects needing quick mobility and assembly.

Why Should You Consider Hongji Mine Machinery for Your Gold Leaching Needs?

What Types of Gold Leaching Equipment Does Hongji Mine Machinery Offer?

At Hongji Mine Machinery, we supply full gold leaching equipment for every process stage. Our cyanidation kits feature strong agitation tanks, complete CIP/CIL modules, thickening units, and desorption-electrolysis tools. We design them based on plant size and ore details.

Our lineup includes crushing equipment, feeder systems, stirring tanks, thickening machines, screening tools, and refining units. This gives total solutions for gold plants from beginning to end.

Our heap leaching systems have sturdy crushers for steady work, auto stacking conveyors for good pad shapes, and acid-resistant sprinklers. These keep solution flow steady over long runs.

How Does Hongji Mine Machinery Ensure Equipment Compatibility With Different Leaching Methods?

We know every ore deposit differs. For that reason, our engineers provide custom designs. They match gear specs to your ore profile and goals.

Plus, our integration help links crushing, leaching, solid-liquid split, and recovery smoothly. This creates one system that boosts output all the way.

What Are the Operational Considerations When Implementing Gold Leaching Systems?

How Can You Optimize Recovery Efficiency Through Equipment Design?

Agitation tanks need right impeller sizes and tank shapes. These maximize touch between ore bits and leach solution. Good stir speeds and tank forms boost that contact.

Solid separation via thickeners and filters cuts reagent use. It also yields clean pregnant solution for next steps.

What Maintenance Practices Prolong Equipment Lifespan in Gold Leaching Plants?

Check key parts often, like tank liners, mixer impellers, and pumps for harsh fluids. This spots issues early and skips surprise breakdowns. Routine checks on liners, impellers, and pumps stop stops from wear or chemical damage.

Our systems link with auto monitoring tech. It watches main performance stats live to catch problems fast. This cuts downtime and upkeep costs.

FAQ

Q: What Is the Difference Between CIP and CIL Systems?

A: CIP adds activated carbon after leaching in separate tanks. CIL blends both steps in one tank setup. CIL saves space but runs a bit more intricately.

Q: Can I Use the Same Equipment for Cyanide and Thiosulfate Leaching?

A: Not always. Thiosulfate needs unique chemical controls and often resin recovery over carbon. So, special reactors and RIP systems come into play.

Q: How Do I Know Which Type of Gold Leaching System Is Right for My Ore?

A: Start with thorough mineral study of your ore. Then, talk to suppliers like us at Hongji Mine Machinery. We give custom advice on ore traits, site setup, budget, and rules.
