Copper ore rarely arrives at a plant as a clean, uniform feed. Valuable copper minerals may be locked inside sulfide or mixed ore particles, while gangue minerals vary in hardness, density and surface properties. The copper concentrator process separates these materials by controlling liberation, particle size, pulp chemistry and bubble selectivity. A typical route includes crushing, grinding, classification, flotation and concentrate dewatering. The best circuit is selected from ore tests rather than copied from another mine.
A practical copper concentrator process starts with mineralogical information. The distribution of copper minerals, the degree of oxidation, the amount of clay and the texture of the host rock all affect the flowsheet. Sulfide-rich feed commonly responds to flotation after adequate liberation, while oxide or mixed zones may require different conditioning and reagent strategies. This is why a single standard copper concentrator cannot suit every deposit.
Liberation means reducing ore particles until copper-bearing minerals are sufficiently separated from gangue. If grinding is too coarse, copper remains locked and floats with waste. If grinding is too fine, valuable slimes can consume reagents and reduce selectivity. The target is therefore an ore-specific balance established through laboratory testing.

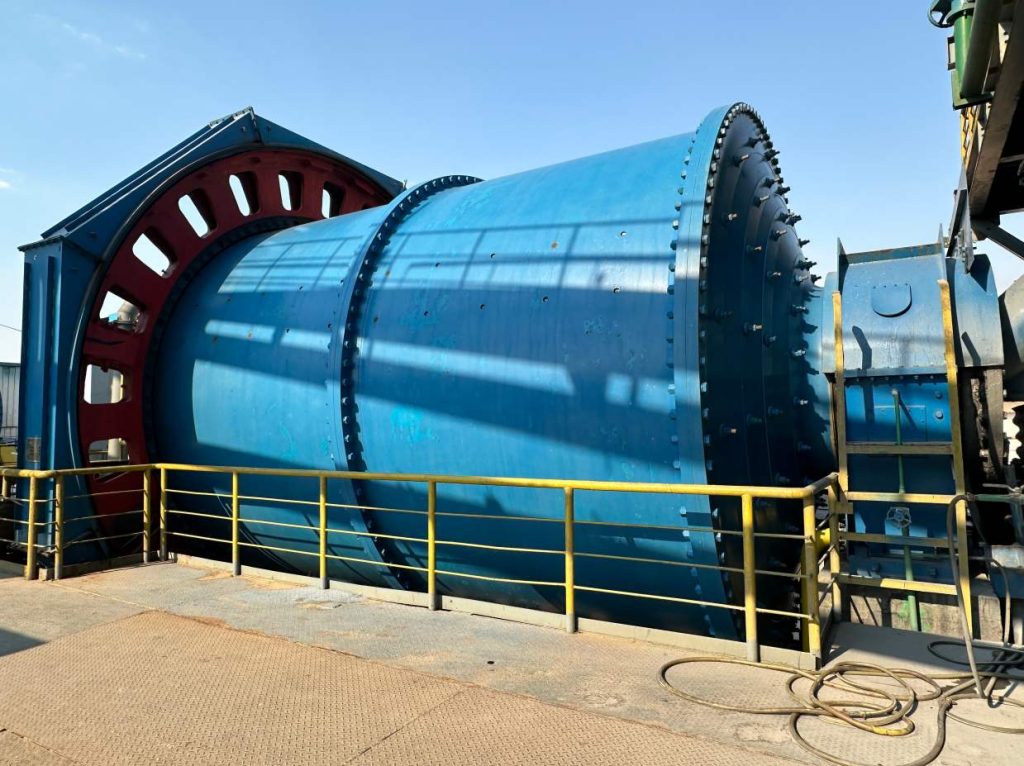

An Energy-Saving Ball Mill can provide the main grinding duty for non-ferrous ores. Its operating principle uses the impact and abrasion of steel balls and ore, while the discharge arrangement determines how pulp leaves the mill. Engineers can then adjust residence time, media and circuit arrangement to the tested liberation target.
A copper concentrator plant should be designed from representative samples. Beneficiation tests help determine the grind size, reagent scheme, flotation stages, water balance and concentrate handling requirements. Test results also support equipment selection and technical-economic evaluation. For buyers, this approach reduces the risk of over-sizing equipment or selecting a circuit that cannot handle variable ore.
The phrase concentrator plant mining covers more than a collection of machines. It includes sampling, process control, utilities, tailings handling and maintenance access. A test-led design connects these elements before construction begins.
The front end of the copper concentrator process converts run-of-mine material into a controlled pulp. Primary and secondary crushers reduce top size, while screens separate material by size and return oversize for further crushing. The crushed feed then enters grinding, where mineral liberation is developed.
Beneficiation Stages and Related Equipment
| Beneficiation Stage | Main Function | Related Equipment |
| Crushing | Reduce run-of-mine material size and prepare feed for downstream processing | Primary Crusher, Secondary Crusher |
| Screening | Separate material by size and return oversize for further crushing | Screen |
| Grinding | Develop mineral liberation by reducing particle size | Energy-Saving Ball Mill |
| Classification | Separate fine particles from coarse particles and control grinding product size | Spiral Classifier, Hydrocyclone |
| Flotation | Separate valuable copper minerals from gangue through selective recovery | SF/XJ Flotation Machine, BF Flotation Machine |
In concentrator mining, closed-circuit grinding keeps coarse particles in the mill until they reach the required size. A Spiral Classifier separates fine overflow from coarse sand and returns the coarse fraction for additional grinding. This arrangement limits unnecessary overgrinding and gives flotation a more stable feed.
A Hydrocyclone can provide compact hydraulic classification when high-capacity separation is required. The correct combination depends on ore density, viscosity, clay content and the selected mill. Operators normally monitor cyclone overflow or classifier overflow to maintain a consistent flotation feed.
There is no universal particle size for a copper concentrator. The target must be linked to mineral texture and flotation response. Coarse particles may remain locked; excessive fines may increase entrainment and water demand. Sampling and laboratory tests should identify a size range that provides acceptable liberation without excessive energy use.
The Energy-Saving Ball Mill and Spiral Classifier work as a controllable pair in this section. The mill supplies the grinding force, while the classifier determines which particles continue forward and which return for further size reduction.

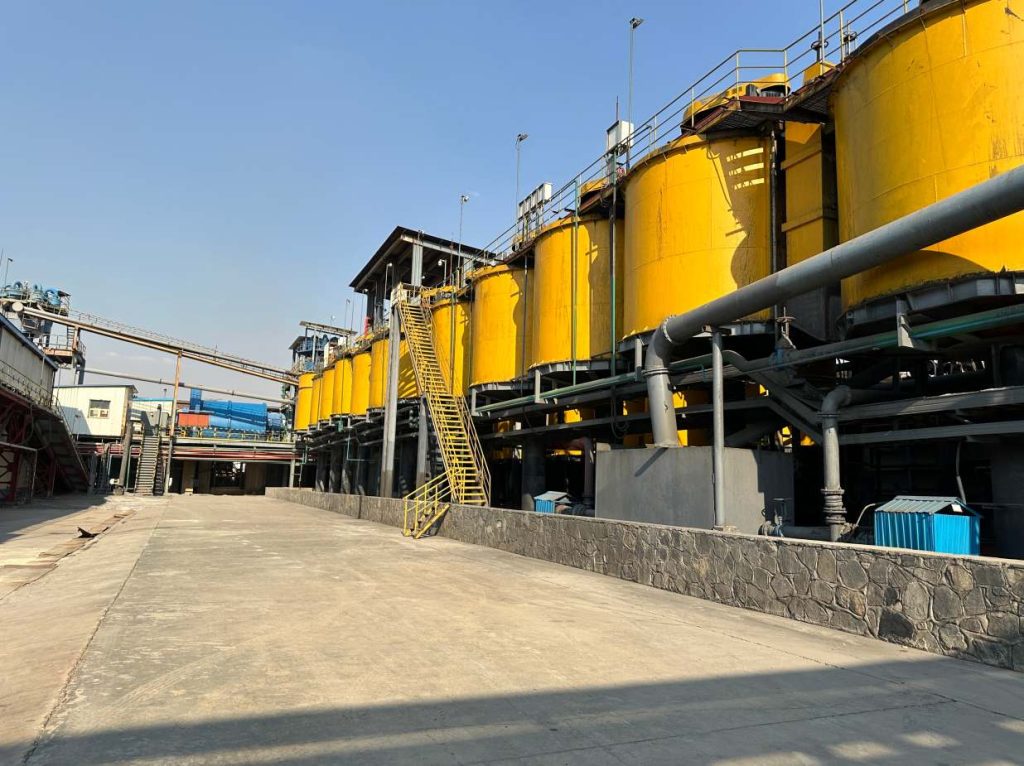

Flotation is the central separation step in many sulfide-focused circuits. After grinding, operators condition the pulp with water and selected reagents. Collectors make target mineral surfaces more hydrophobic, while modifiers adjust selectivity and pH. Air bubbles then attach to hydrophobic particles and carry them to a froth layer. The froth is removed as concentrate, while hydrophilic gangue reports mainly to tailings.
The SF/XJ Self-Priming Air Mechanical Stirring Flotation Machine draws air into the pulp through impeller action, disperses the air into bubbles and allows mineralized froth to overflow or be scraped. This design is used for roughing, cleaning and reverse flotation of non-ferrous minerals. A BF Flotation Machine is suitable for roughing and scavenging in medium and large plants. A dosing machine can improve reagent consistency where accurate addition is important.
This circuit balances concentrate grade against recovery. More cleaning can improve grade but may send some copper back to a recycle stream. More aggressive roughing can increase recovery but pull in additional gangue. Operators therefore use test data, froth observations and assays to set air rate, pulp density, reagent dosage and residence time.
When copper and gold occur together, the circuit must consider their mineral associations, surface behavior and liberation size. The phrase copper gold forming techniques is best interpreted as a search for copper-gold mineral formation or association concepts, not as a universal flotation method. A copper-gold circuit may use staged flotation, selective cleaning or separate concentrate streams, but the correct choice requires mineralogical and metallurgical testing.
SF/XJ or BF machines can be included where their operating roles match the tested circuit. No fixed recovery figure should be assumed simply because both metals are present.

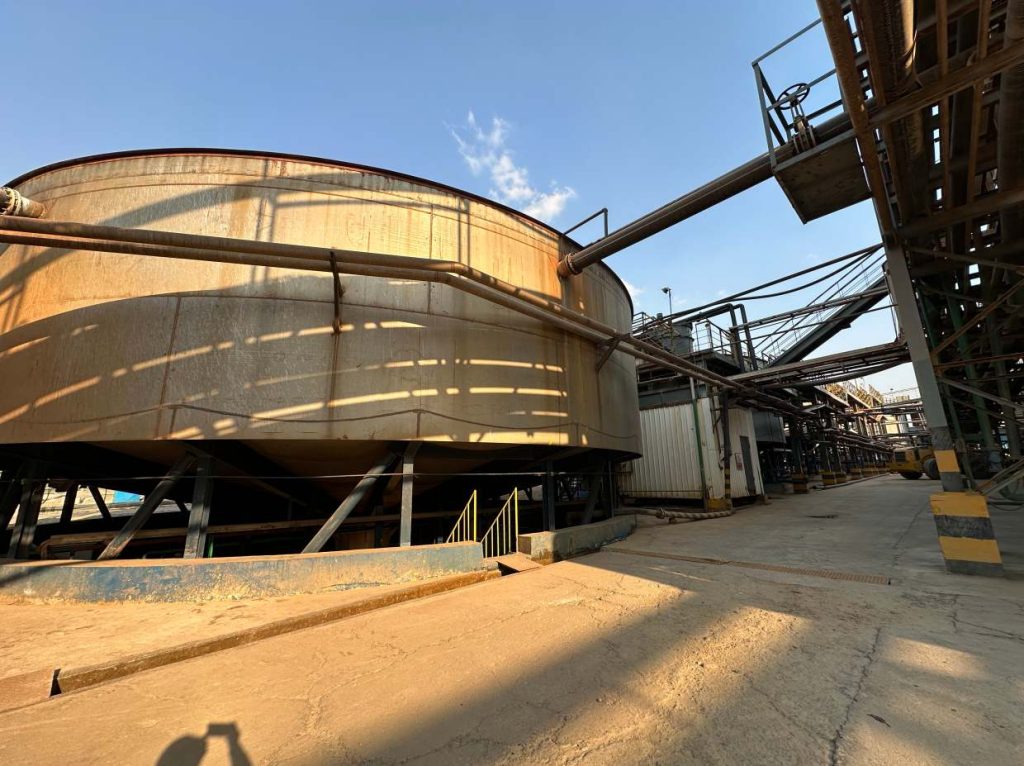

After flotation, the concentrate still contains substantial water. A Thickener uses gravity settling to separate clarified overflow from a denser underflow. Recovered water can return to the process, while underflow moves to filtration. This step stabilizes downstream handling and reduces the volume of water sent with the product.
A Disc Vacuum Filter continuously removes water from concentrate under vacuum. A Fully Automatic Hydraulic Box Filter Press applies pressure in cycles to form filter cakes. Selection depends on slurry properties, required moisture, operating schedule, washing needs and available automation. Final sizing should follow pilot or laboratory results rather than a generic equipment table.
In concentrator plant mining, thickener overflow can be collected for reuse after the water quality is checked. Recycle reduces fresh-water demand and helps keep pulp density stable. The actual water balance depends on evaporation, ore moisture, reagent chemistry and tailings conditions, so it must be calculated during engineering design.
At Hongji Mine Machinery, we connect tested process requirements with equipment for crushing, grinding, classification, flotation and dewatering. Our Energy-Saving Ball Mills, Spiral Classifiers, SF/XJ and BF flotation machines, Thickeners, Disc Vacuum Filters and Hydraulic Box Filter Presses can be evaluated as parts of an integrated circuit. We also provide beneficiation testing and process design so that equipment choices follow ore behavior.
Our typical mining concentrator sequence may include crushers for size reduction, a ball mill and classifier for liberation control, flotation machines for selective recovery, and a Thickener plus filter for concentrate dewatering. The exact arrangement, number of stages and recycle streams are set by test results and the project's operating objectives.
Our Zambia copper mineral processing case identifies copper ore as the raw material and lists crushers, a ball mill, classifier, flotation equipment and tanks. The case demonstrates how major unit operations can be combined into one plant concept.
A: It is an integrated beneficiation route that reduces ore size, liberates copper minerals, classifies pulp, separates valuable particles by flotation and dewaters the resulting concentrate.
A: Most circuits require crushing, grinding and classification equipment, followed by flotation machines. A Thickener and a filter are commonly added when the concentrate must be clarified, dewatered and transported.
A: Start with representative ore samples, beneficiation tests, design throughput, target grind size, flotation response, water balance and concentrate moisture requirements. Engineering design should convert these results into equipment capacities and a complete flowsheet.
