A complete set of system is applied to the treatment of gold-bearing charcoal in the coal pulp plant of gold mines, so that gold can be separated from the gold-bearing charcoal and precipitated into high-grade gold sludge. It consists of electrolysis equipment including desorption column and the electrodeposition tank.
SCOPE OF APPLICATION:
It is used to extract solid gold from gold-bearing carbon by cyanidation.
Product Description
In the Desorption electrolysis system, anions that are easily adsorbed by activated carbon are added to the elution system to replace Au (CN)2-and desorb gold. After loaded carbon elution process, the solid gold is recovered from pregnant liquid by ionization method.

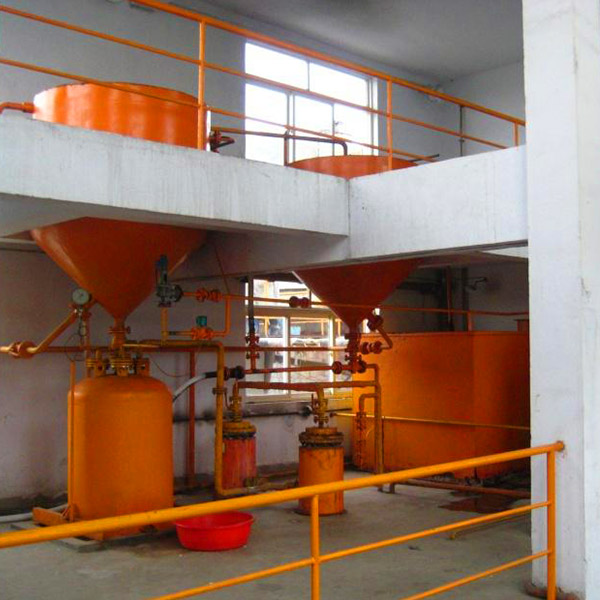

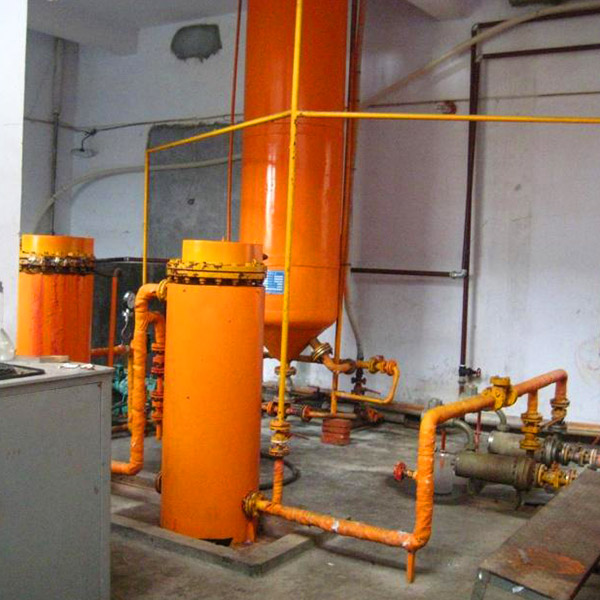

The high-efficiency, low-consumption elution and electrowinning device is mainly composed of two parts: elution and electrowinning, and the processes of them are separated. The solvent desorption is in elution column, and the precious liquid electrolysis is completed in a separate electrolytic cell. The four processes of elution, pregnant liquid heating, solvent condensation and solvent recovery are concentrated in the elution column. The pregnant liquid after desorbing the gold-loaded carbon by the solvent vapor is introduced into a separate electrolysis through a pipeline tor electrolysis to obtain crude gold, which then purified to get product gold.
Features
Parameter
| Model | Applicabie Scale | Operating Parameters | |
|---|---|---|---|
| Mine Scale (t/d) |
Raw Ore Grade (g/t) |
||
| GKJD-200 | <150 | 2-8 |
Working temperaure:150±2℃ Solution(NaOH)PH:≥13.5 Elution cell pressure:0.5(Mpa) Electrowinning cell pressure:0.45(Mpa) |
| GKJD-300 | 150-300 | 2-8 | |
| GKJD-500 | 300-500 | 2-8 | |
| GKJD-700 | 300-500 | 2-8 | |
| GKJD-1000 | 500-1000 | 2-8 | |
| GKJD-1500 | 500-1000 | 2-8 | |
| GKJD-2000 | 1000-2000 | 2-20 | |
| GKJD-2500 | 1000-2000 | 2-20 | |
| GKJD-3000 | 1000-2000 | 2-20 | |
| GKJD-3500 | 2000-3000 | 2-20 | |
| GKJD-4000 | 2000-3000 | 2-20 | |
| GKJD-5000 | 2000-3000 | 2-20 | |
| GKJD-8000 | 3000-5000 | 2-20 | |
