The trommel screen also knowns as a rotary screen, is a versatile screening machine that can size and separate feed materials in the mining, quarry, aggregate, and dirt industry. Hongji Trommel Screens can precisely classify materials into multiple sizes from one unit.
SCOPE OF APPLICATION:
Separate dry powder and granules or wet granules for the business of metallurgy, building material, chemical industry, material grinding, chemical and beneficiation industry, etc.
Product Description

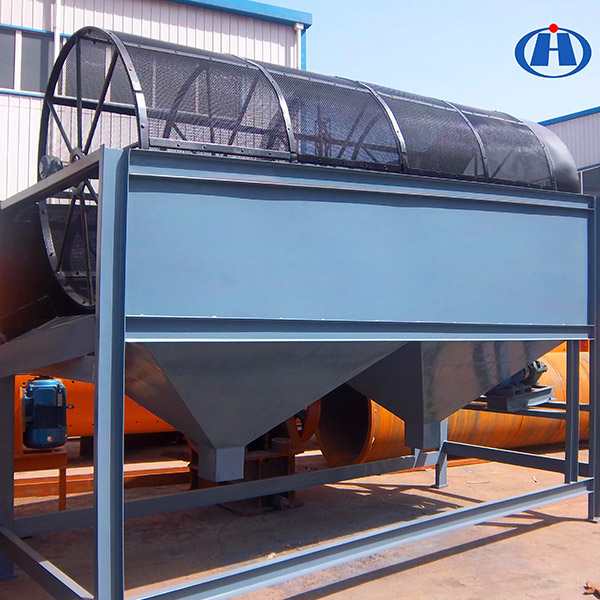

Trommel washing machine is a special screening equipment developed by our company for power plants, coking plants, building materials, metallurgy, chemical industry, mining, and other industries. It has the advantages of simple and reliable structure, stable operation, good sealing, no pollution, low noise, quick screen change, fine classification, large sorting ratio, high output, accurate sorting, low failure rate, and convenient maintenance.
Applied material：Ore, coal, sand, gravel, chemical, soil, coke, white ash, compound fertilizer, topsoil, etc.
Features
Parameter
| Model | Specification (mm) |
Stone Screening Capacity (t/h) |
Sand Screening Capacity (t/h) |
Motor Power (kw) |
Reducer | Gross Weight (t) |
|---|---|---|---|---|---|---|
| TSGT-1240 | 1200×4000 | 60 | 50 | 5.5-7.5 | 400 | 4.5 |
| TSGT-1540 | 1500×4000 | 120 | 80 | 11-15 | 400 | 5.8 |
| TSGT-1840 | 1800×4000 | 150 | 120 | 15-18 | 500 | 7 |
| TSGT-2040 | 2000×4000 | 200 | 150 | 18-22 | 650 | 10 |
| TSGT-2240 | 2200×4000 | 230 | 160 | 18-22 | 650 | 13 |
| TSGT-2640 | 2600×4000 | 260 | 180 | 37 | 750 | 15 |
