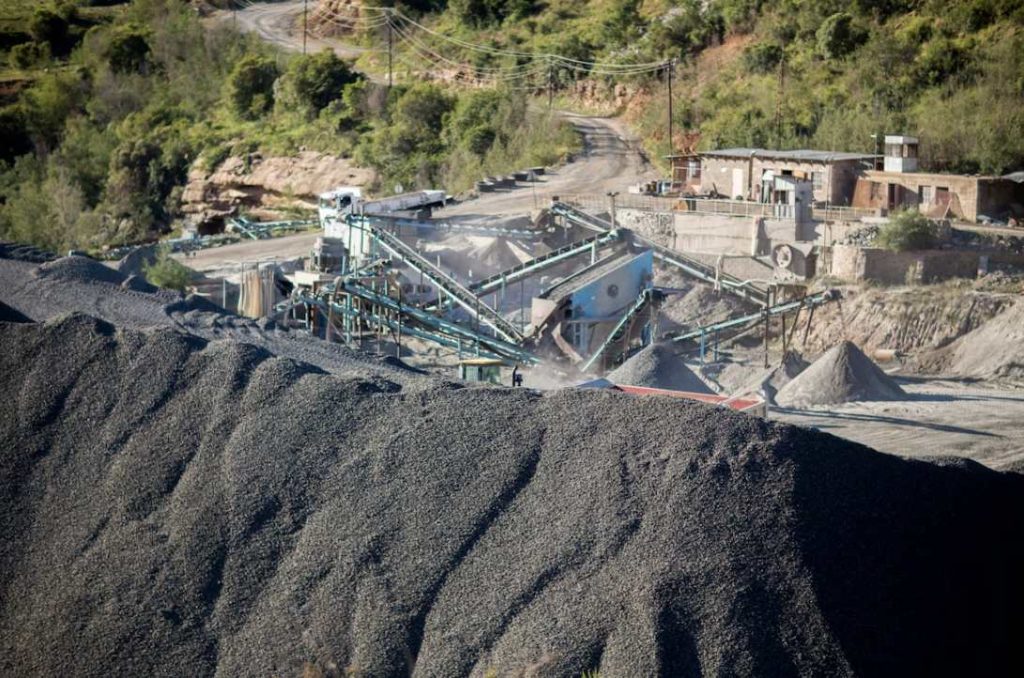

How Does the Iron Ore Beneficiation Plant Process Change for Magnetite and Hematite Ores?

What Differentiates Magnetite and Hematite in Iron Ore Beneficiation?

How Do the Physical and Chemical Properties of Magnetite and Hematite Affect Processing?

Magnetite (Fe₃O₄) and hematite (Fe₂O₃) show notable variations in their physical and chemical traits. These traits shape beneficiation approaches in direct ways. Magnetite carries a larger amount of iron, usually near 72.4% Fe. It shows solid magnetic features. Such features allow simple recovery through magnetic separation techniques. Hematite, by comparison, has no magnetic pull. Its iron level sits at around 69.9%. For that reason, it calls for tougher processing steps to gain strong concentrates.

The variations in weight, strength, and magnetic pull between these minerals set the choice of gear and process layout. Magnetite's firm magnetism permits quick pickup with low-intensity magnetic separators. Hematite's slight magnetic response, however, demands high-intensity tools or other sorting ways like gravity concentration or flotation.

Why Do These Differences Matter for Plant Design?

Plant setup has to fit the ore's mineral structure. With magnetite ores, magnetic separation stands as the top choice because of its firm magnetism. The key way to sort iron ore is magnetic separation. It breaks down into weak magnetic separation and strong magnetic separation. Weak magnetic separation chiefly serves to sort firm magnetic iron minerals like magnetite. Hematite, in turn, needs gravity or flotation-based steps. This is since it reacts weakly to usual magnetic fields.

Hematite beneficiation commonly blends several rounds of grinding, desliming, and flotation. These aim to hit target purity marks. The ore's mineral makeup in the end sets the plant's flow sheet plan. It could lean toward magnetic circuits for magnetite. Or it might favor gravity-flotation setups for hematite.

How Does the Iron Ore Beneficiation Plant Process Magnetite Ores?

What Are the Key Stages in Magnetite Ore Processing?

Magnetite beneficiation often sticks to a clear order of crushing, grinding, separation, and dewatering. The starting crushing and grinding steps shrink ore size. They free magnetite bits from gangue minerals. After that, the stuff faces magnetic separation. In this, particles drawn to magnets get picked up smoothly.

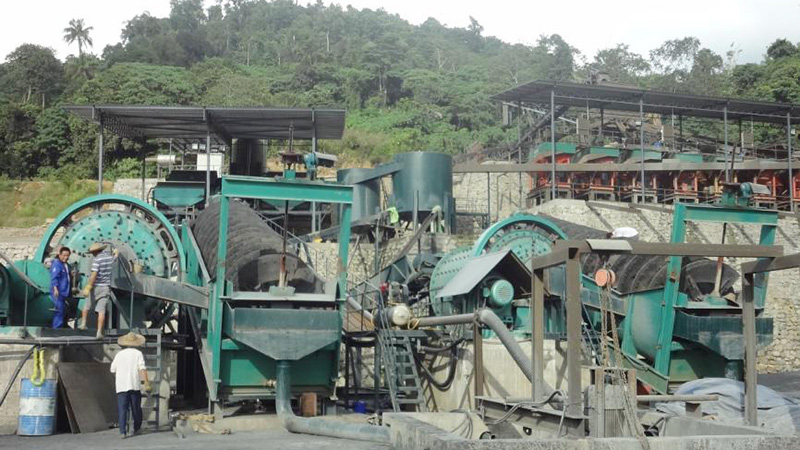

One real case shows up in the 3,500t/d Iron Mineral Processing Plant in Nigeria. That effort handled magnetite, hematite, and limonite ores. It ran them via a three-stage crushing circuit. Next came stage-grinding and stage-separation steps. Then, concentrate thickening and filtration took place. This occurred before pelletizing or smelting phases. The goal was to lock in prime product standards.

Which Equipment Is Commonly Used in Magnetite Processing Plants?

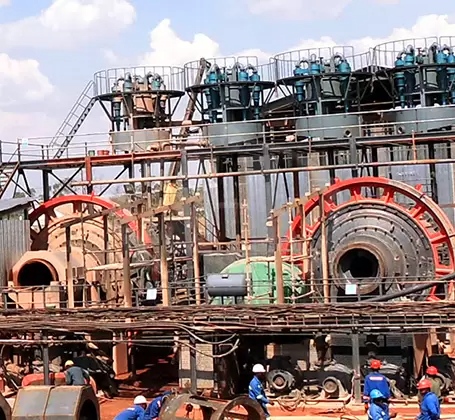

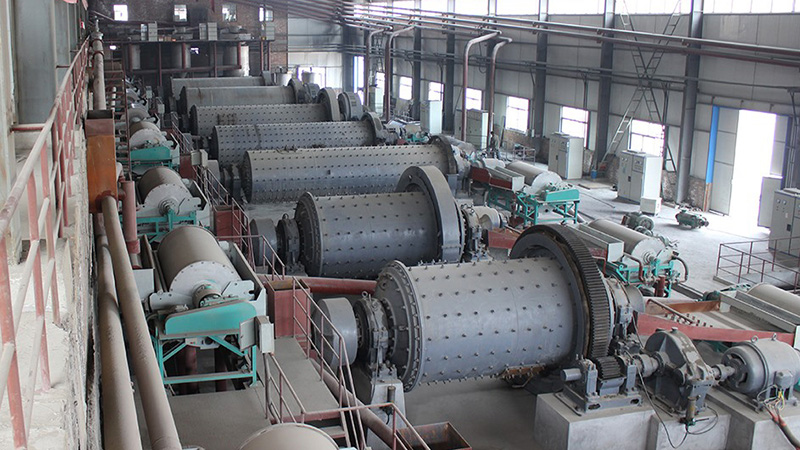

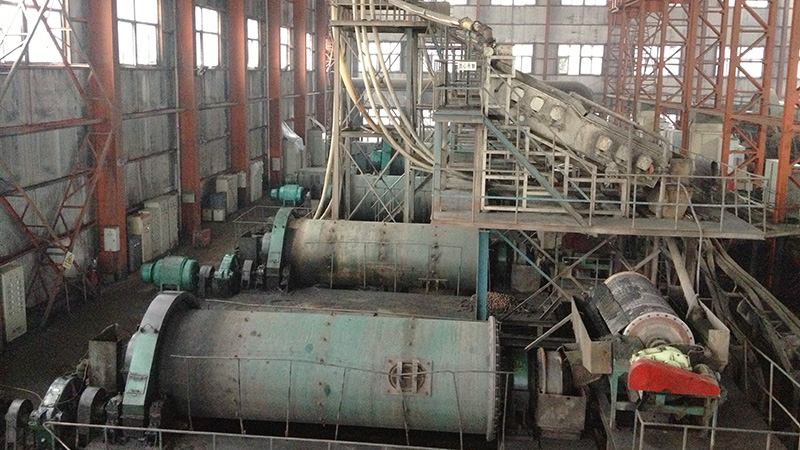

Magnetite beneficiation plants lean on targeted machines made for exact mineral pickup. The main equipment includes vibrating screen, ball mill, classifier, magnetic separator, and thickener. Magnetic separators at different strengths deal with rough to small portions well. Grinding setups like ball mills or vertical mills hit needed particle sizes. Those sizes matter for freeing minerals.

Dewatering setups such as thickeners and filter presses handle moisture levels. They do this ahead of concentrate movement or added steps.

How Does the Process Change When Treating Hematite Ores?

Why Is Hematite More Complex to Beneficiate Than Magnetite?

Hematite brings larger issues because of its faint magnetism and tight spread in gangue stuff. Strong magnetic separation chiefly works for sorting faint magnetic minerals led by hematite. Still, hematite fails to respond well even in high-intensity zones. So, extra steps like gravity concentration or flotation are needed.

Fine grinding grows key. This is because hematite bits often weave closely with flaws like silica or alumina. Multi-stage desliming aids in clearing tiny clays. Those clay blocks later recovery work.

What Methods Improve Hematite Recovery Rates?

To raise recovery from hematite ores, high-intensity magnetic separation grabs leftover iron bits after first stage. Flotation reagents boost choice between iron minerals and gangue. They do so by shifting surface makeup to help iron cling to air bubbles in flotation.

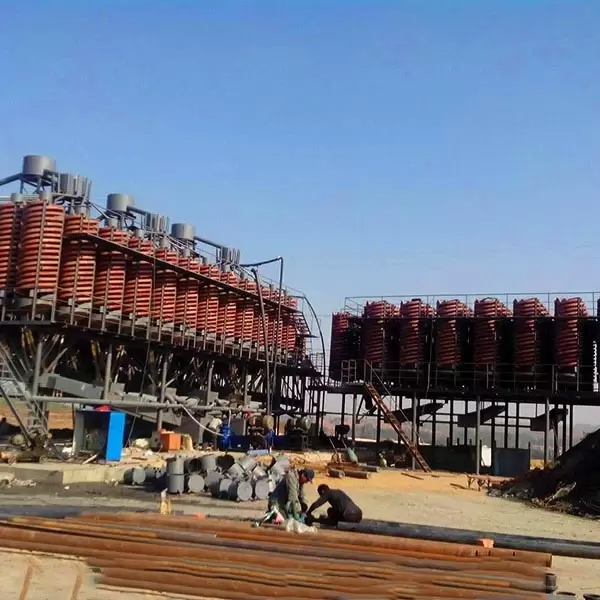

Modern gravity sorters—spiral concentrators or shaking tables—often step in at the end phases. They polish concentrates more. At Hongji Mine Machinery, our blended method ties these into flexible modular setups for diverse ore kinds.

How Do Process Flow Sheets Adapt for Different Ore Characteristics?

What Factors Influence the Selection of Beneficiation Techniques?

A few elements sway process picks: ore grade sets the work needed for upgrades, liberation size rules grinding demands, impurity counts shape reagent options, and environmental rules form water use and waste plans.

Pilot-scale testing is kept vital before full plant build. It checks process work in true setups. Our teams at Hongji Mine Machinery run full pilot checks. They see to it that each plant plan matches tech aims and green standards.

How Can Integrated Systems Enhance Efficiency?

Mixing several beneficiation ways in a single setup boosts total recovery over shifting feed mixes. Hybrid paths that blend magnetic separation with gravity concentration or flotation permit bendy runs. This holds true whether handling magnetitic or hematitic inputs.

Automation takes a core part here—auto controls steady feed speeds and holds steady product marks. At the same time, they trim energy draw across process steps.

Hongji Mine Machinery: Expertise in Iron and Copper Processing Solutions

What Makes Hongji Mine Machinery a Reliable Partner for Mineral Processing Projects?

At Hongji Mine Machinery, we craft full beneficiation plants fit just for magnetite and hematite ores. Our gear lineup spans crushers, mills, separators, thickeners, filters, dryers, and more.

For more than 10 years, the process design team has solid know-how in mineral processing, civil engineering, power, automation, general drawing, water supply and drainage, tailings, environmental protection and other aspects. This wide base lets us hand over full-range fixes—from feasibility checks through startup—for clients the world over.

Our modular plans ease setup. They also keep work flexibility over varied ore levels or builds.

FAQ

Q: What Is the Main Difference Between Magnetite and Hematite Beneficiation Processes?

A: Magnetite beneficiation primarily uses magnetic separation due to its strong magnetism; meanwhile hematite requires gravity or flotation methods because it is only weakly magnetic.

Q: Why Is Grinding So Critical in Iron Ore Beneficiation Plants?

A: Grinding liberates valuable iron minerals from gangue materials so that subsequent processes like magnetic or flotation separation can operate effectively on free particles rather than locked composites.

Q: Can a Single Plant Process Both Magnetite and Hematite Ores Efficiently?

A: Yes. Hybrid beneficiation plants designed by Hongji Mine Machinery combine flexible circuits integrating magnetic separation with gravity concentration or flotation—allowing efficient treatment of mixed feeds as demonstrated by our 3,500t/d Iron Mineral Processing Plant in Nigeria.
