Gold elution serves as a crucial step in the gold extraction sequence. This occurs especially in Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) methods. After workers leach gold from ore with cyanide, it mixes into the cyanide solution. Then, during the adsorption phase, they add activated carbon to the solution. This captures the gold and creates gold-loaded carbon. That is precisely when elution proves vital.

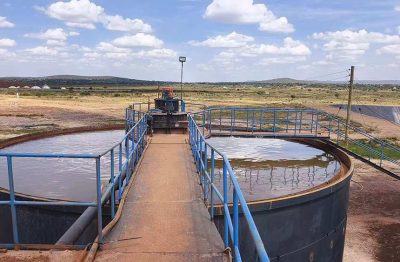

The gold CIP process features seven main operation stages. These include preparation of leaching pulp. They also cover cyanide leaching, carbon adsorption, gold-loaded carbon desorption, electrolysis to obtain muddy gold, de-gold carbon recycling, and treatment of leaching pulp.
In a closed system, operators can quickly desorb gold-loaded carbon. They also electrolyze it into muddy gold and lean carbon. This happens under high-temperature and high-pressure conditions. The desorption (elution) stage makes sure that the gold leaves the carbon efficiently. As a result, it can move forward to electrolysis and refining.
Elution allows the reuse of activated carbon several times. This greatly cuts operational costs. It does so by reducing the need for fresh carbon materials. Even more key, it ensures that almost all adsorbed gold gets recovered. Therefore, it boosts the overall yield to a maximum.
The desorption electrolysis system introduces anions. These anions easily stick to activated carbon in the desorption setup. Thus, they push out AU(CN)2- to achieve desorption. Workers then recover the desorbed gold through electrolysis. This produces gold ingots.
Hongji Mine Machinery possesses Desorption Electrolysis Equipment with rapid desorption and efficient electrolytic recovery capabilities, which greatly assists in the gold desorption process.
Moreover, elution readies the recovered gold for later processes. For instance, electrowinning turns it into a solid form. This closed-loop approach supports sustainable and highly efficient gold recovery.
Gold elution relies on thermodynamic and chemical equilibrium ideas. The adsorption of gold onto activated carbon is reversible. So, under changed chemical conditions—particularly high temperatures and reagent levels—the gold can desorb. This shift happens effectively.
The process takes advantage of variations in temperature, pressure, and chemical potential. These variations move the equilibrium toward desorption. Operators introduce sodium cyanide and caustic soda at raised temperatures. This breaks the connection between gold and carbon.
Desorption with acidic sodium cyanide solution under heating and pressure ranks as one of several techniques. Experts apply these to speed up the process.
Raised temperatures speed up the desorption kinetics. However, they require careful regulation to prevent harm to the activated carbon structure.
In a closed system, gold-loaded carbon desorbs rapidly. It also electrolyzes into muddy gold and lean carbon. High temperature and high-pressure conditions make this possible.
Typical temperatures fall between 110°C and 130°C. This depends on whether the system uses atmospheric or pressurized setups.
The selection and strength of reagents directly influence the efficiency and pace of elution.
Four methods exist today for Desorption. First is hot caustic sodium cyanide solution desorption. Second involves low concentration caustic sodium cyanide solution plus alcohol desorption. Third is desorption with acidic sodium cyanide solution under heating and pressure conditions. Fourth is desorption of high concentration caustic sodium cyanide solution.
Optimal concentrations guarantee full desorption. At the same time, they prevent wasteful reagent use.
Operators must optimize flow rates. This ensures sufficient contact between the eluent solution and loaded carbon. Poor contact might lead to incomplete gold recovery. On the other hand, too much flow could heighten equipment wear.
Modern elution systems include several vital parts. These are elution columns for carbon loading. They also feature heat exchangers to hold steady temperatures, pumps for fluid movement, and reagent dosing units for chemical oversight.
Automation holds an important role. It watches variables like temperature, pressure, and flow rate. This keeps performance steady. Such automated setups cut down on human mistakes. They also boost safety.
The Zadra system employs either atmospheric or pressurized setups. It combines these with a hot caustic-cyanide solution to remove gold from activated carbon. The warm solution severs the ionic bonds between gold and carbon. This allows for strong recovery.
The AARL method uses a two-step process. First, it soaks the gold-loaded carbon in acid to remove impurities. Next, it elutes using hot caustic-cyanide solution under pressure. This method improves elution efficiency. It suits large-scale operations well.
At Hongji Mine Machinery, we provide advanced gold elution systems. Engineers design them for sturdiness and thermal efficiency. Our products handle both Zadra and AARL setups. They include automated control features for exact management.
We build systems with strong thermal efficiency and tough construction. This supports ongoing operation. These qualities mean our elution systems work reliably. They handle tough conditions without issue.
Our customers enjoy lower energy use. This comes from our improved heat recovery technologies. Better gold recovery rates arise from even temperature spread in elution columns. Such improvements help maximize profits.
Plus, our modular design options allow easy integration with current CIP/CIL plants. This makes upgrades smooth. Clients get better performance with little interruption.
Over time, mineral buildup can gather inside heat exchangers. This lowers heat transfer efficiency. Consequently, it causes longer processing times or unfinished elution cycles. Regular cleaning routines are key to address this problem.
Human mistakes or faulty pumps might create wrong reagent amounts or uneven flow rates. These problems can lead to partial desorption or overuse of chemicals. Automation greatly lowers this danger. It keeps tight control over dosing.
Wrong handling of activated carbon during moves can cause attrition or loss of tiny particles. This reduces recovery rates. It also brings operational waste. Special handling tools are needed to keep carbon intact.
Real-time monitoring systems aid in better control of main variables. These include temperature and flow rate. Routine checks further cut down on surprise breakdowns or stoppages.
Staff training matters just as much. It ensures operations run under ideal settings. Trained workers spot problems early. They also keep the system running well.
A: The temperature commonly ranges between 110°C to 130°C depending on whether it’s an atmospheric or pressurized system.
A: Yes, activated carbon can be reused multiple times after proper reactivation through thermal treatment if necessary.
A: Yes, modern systems like those offered by Hongji Mine Machinery come with automation features that manage temperature, pressure, flow rate, and reagent dosing for consistent performance.
