Flotation gold recovery works as a physical and chemical separation method. It relies on air bubbles together with reagents to pull out valuable minerals. This approach suits ores that hold gold in fine form or inside sulfide minerals. The method sets up froth flotation conditions. Hydrophobic particles stick to the bubbles and move upward. They form a rich foam layer on top. The same steps apply in graphite flotation, froth flotation of copper, and other mineral work.

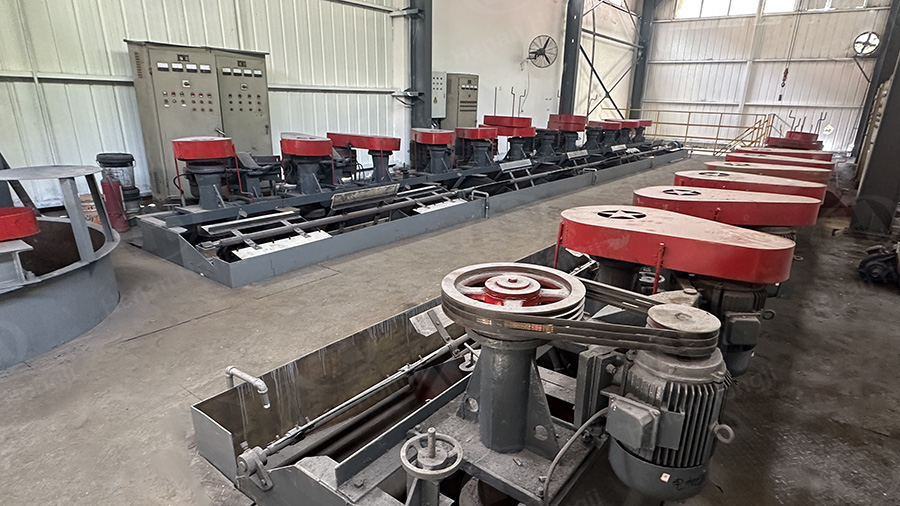

Inside the flotation machine, the ore feeder sends material to the center of the cover plate. The impeller spins and creates centrifugal force. This force pulls in the ore pulp. At the same time, a low-pressure zone forms between the impeller and the cover plate. Outside air enters through the inlet pipe on its own. The impeller stirs the mixture hard. Pulp and air blend well. The air breaks into many small bubbles. Mineralized bubbles rise to the foam layer. The scraper removes them as a foam product. This idea supports modern flotation plant design and helps recover gold-bearing minerals from complex ores.
Operators must watch pH, reagent amount, and airflow closely. These factors decide how well flotation runs. New flotation frother agents and better froth flotation chemicals market mixes improve how well gold particles are picked out. They also cut down on gangue that gets carried along. Hongji Mine Machinery’s SF/XJ Self-Priming Air Mechanical Stirring Flotation Machine raises concentrate grade by 4–6 percent. Recovery rate goes up by 8 percent. Output increases by 12 percent. The machine shows strong results in real plant work.
Cyanidation follows another idea. It dissolves gold into a solution with cyanide ions. The gold forms a soluble gold–cyanide complex. The cyanidation method extracts gold on a wide scale. The gold ore carbon-in-pulp (CIP) production line fits ores that are mainly argillaceous oxidized material. It also works with flotation gold concentrates and gravity tailings. The process suits free-milling ores where gold appears as separate particles that grinding frees easily.
Chemically, cyanide leaching turns metallic gold into Au⁺ ions. These ions join with CN⁻ ions and create Au(CN)₂⁻ complexes. The gold CIP process runs through seven stages. Workers prepare the leaching pulp first. Cyanide leaching comes next. Carbon adsorption follows. Then, the gold-loaded carbon is desorbed. Electrolysis produces muddy gold. De-gold carbon is recycled. Finally, the leaching pulp is treated. Detoxification systems stay necessary. Cyanide compounds carry real environmental risks. Wastewater treatment must remove leftover cyanide before any discharge.
The main differences between flotation and cyanidation are summarized below:
| Aspect | Flotation | Cyanidation |
| Principle | Gold-bearing minerals attach to air bubbles and rise as froth. | Gold dissolves in cyanide solution. |
| Best for | Sulfide-rich and fine-grained gold ores. | Oxidized and free-milling ores. |
| Product | Gold concentrate. | Gold-bearing solution. |
| Main concern | Reagent, pH, and airflow control. | Cyanide toxicity and wastewater treatment. |
These differences help determine which method is more suitable for a specific type of gold ore.
Ore mineralogy decides which method gives better results. Sulfide-rich ores respond well to flotation. Their surface chemistry helps bubbles attach. Flotation is used to process sulfide-bearing gold ores with high floatability. Sulfide ores mainly include sulfide gold ores, which are often quartz vein type or hydrothermal alteration type. They also include multi-sulfide gold ores and multi-metal sulfide-bearing gold ores. Oxidized or free-milling ores work better with direct cyanidation. Their surfaces dissolve readily in alkaline cyanide solutions.
Mixed or refractory ores often need combined steps. Dry flotation treatment comes first, then leaching follows. This sequence raises total metal recovery. In some cases, types of flotation devices such as aerated columns or mechanical cells are chosen according to particle size or ore texture.
From an economic view, flotation usually uses less water. It still needs more energy because of the stirring parts. Cyanidation reaches higher overall recovery. It also requires strict environmental controls because of toxicity risks. Reagent costs, such as collectors or depressants, in froth flotation chemicals market studies affect project plans. Tailings detoxification costs matter just as much for cyanidation plants.
Many current operations use sequential steps. First froth flotation concentrates high-grade material. Cyanidation then finishes the extraction. Flotation can enrich gold into sulfide minerals to the greatest extent with low beneficiation cost. Removing most gangue early through selective separation in a flotation plant makes later leaching more efficient. Chemical use drops as well.
Hongji Mine Machinery has applied this combined route in several projects. One example is the Ghana 50TPH Gold Processing Plant. Crushing, screening, ball milling, thickening, and flotation tanks run as one continuous system before later treatment. These setups improve recovery from refractory or low-grade deposits. They also keep reagent use at a good level.
Pre-flotation lowers cyanide consumption. Most sulfides that would otherwise react with cyanide are taken out first.
Combining the two processes brings some challenges. Reagent compatibility between stages needs attention. Leftover collectors or depressants from graphite flotation or other circuits can slow leach kinetics if not handled well. Careful adjustment of parameters keeps valuable minerals from being lost early while still supporting later dissolution reactions.
Equipment layout must fit both mechanical separation and chemical leaching needs. Slurry transfer systems move material between cells and tanks. The tanks must handle aerated mixing and controlled pH at the same time.

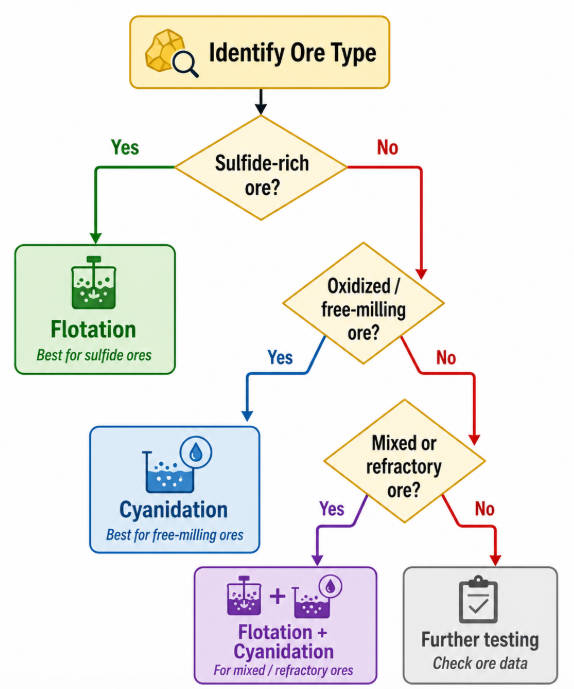

Choosing the right gold recovery method starts with the ore’s mineral composition. Flotation is generally more suitable for sulfide-rich ores in which gold is finely distributed or locked inside sulfide minerals. Direct cyanidation is better suited to oxidized and free-milling ores because the exposed gold can dissolve more readily in an alkaline cyanide solution.
For mixed or refractory ores, a combined process is often more effective. Flotation first concentrates the gold-bearing sulfides and removes much of the gangue, after which cyanidation completes the extraction. This route can improve overall recovery and reduce cyanide consumption. Water use, energy demand, reagent costs, and cyanide detoxification requirements should also be considered when selecting the final process.
At Hongji Mine Machinery, we focus on advanced equipment for high-efficiency flotation gold recovery across many ore types. Our SF/XJ self-priming machines give steady air spread. They raise mineral attachment through controlled impeller rotation as described earlier. The GF series machines handle coarser particle feeds. They suit medium-scale plants that need flexible solutions for non-ferrous metals and precious elements like gold.
We also add dosing automation. The XHGY-B series numerical control dosing machine works for precise control of flotation dosing for black, non-ferrous, and precious metals. It removes the low recovery that once came from manual dosing errors.
Hongji Mine Machinery supplies complete turnkey solutions. These cover the full circuit design from crushing through refining. Automation controls keep performance steady across worldwide operations. Our teams support clients from layout planning through installation, commissioning, and operator training. The Peru 150t/d CIL project shows this support in practice.
We keep long-term partnerships through technical service agreements. These agreements help plants maintain good results even when feed conditions change in global mining work with mixed sulfides or oxide materials.
A: Flotation works best with sulfide-rich ores. In these ores, gold is finely spread or locked inside other minerals. Selective separation through reagents and air bubbles becomes possible. The same froth flotation systems appear in graphite flotation sectors around the world.
A: Yes. Many concentrators use sequential treatment. Fine-grained metallics often remain after primary separation. Leaching stages such as CIP/CIL circuits finish the job. Hongji Mine Machinery equipment lines support these stages with electrolytic analysis systems that raise full metal extraction.
A: Advanced designs from Hongji Mine Machinery improve bubble–particle contact. They use better impeller–stator geometry. Automated reagent control lowers cost per ton. Higher-grade outputs result across various types of flotation devices in both small units and large industrial installations.
