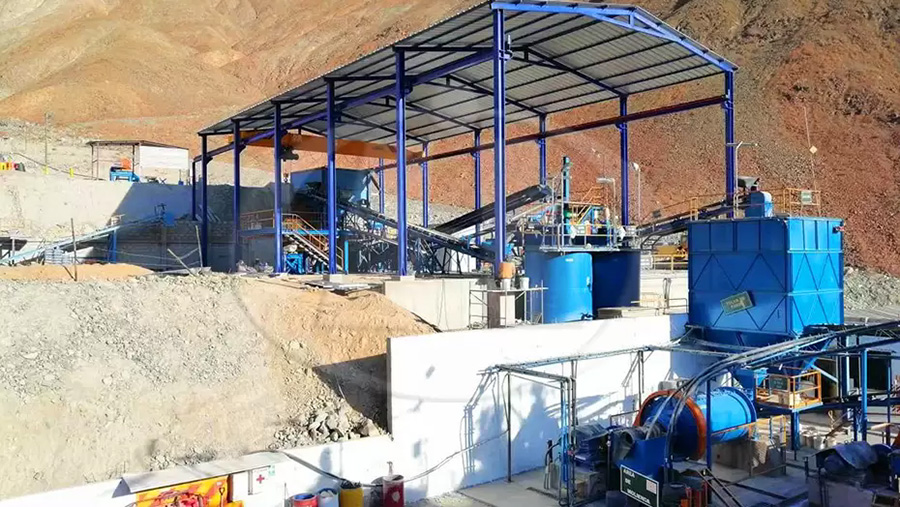

A CIL gold processing plant serves as an advanced metallurgical setup. It combines leaching and adsorption inside one group of tanks. This approach helps improve gold recovery from ore. Cyanide solution breaks down gold from crushed ore. At the same time, activated carbon pulls the dissolved gold out of the liquid. These combined steps cut processing time. They also raise recovery rates better than older methods, where leaching and adsorption take place in separate stages.
Leaching works well as a common way to pull gold from ore. This idea supports both CIL and CIP methods. They form part of the wider CIL CIP gold processing group. The mix of these steps handles both oxidized and refractory ores with good results. It raises the final yield through steady chemical reactions.

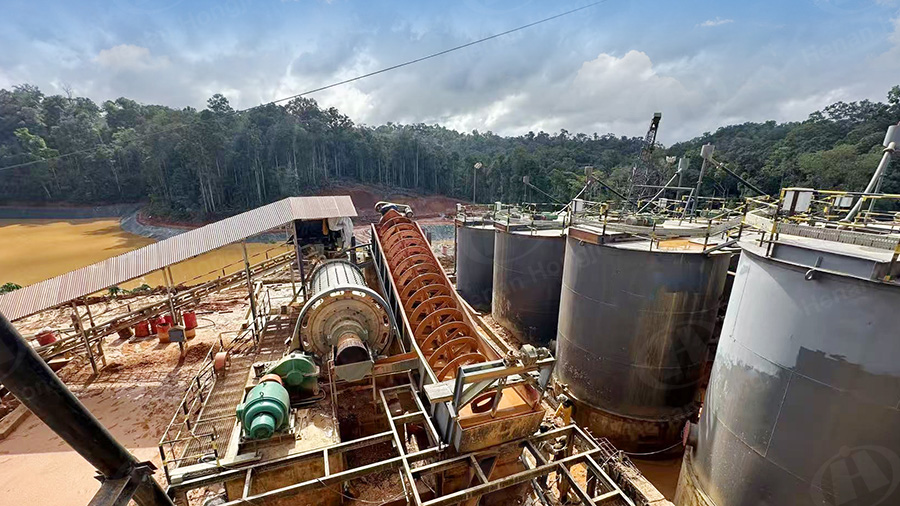

A full CIL plant needs several main parts. Crushing and grinding machines prepare the ore. They increase surface area, so leaching works better. The gold-bearing material is ground to a size fit for cyanidation, usually under 28 mesh. Leaching tanks then hold cyanide solution and activated carbon. This setup lets dissolution and adsorption happen together. The cyanide pulp flows into the stirred adsorption tank, also called the carbon slurry tank. Carbon is added to the leaching tank. The carbon then takes up the gold from the pulp and becomes loaded carbon. Later units, such as carbon stripping columns, electrowinning cells, and smelting furnaces, recover the gold metal from the loaded carbon.
Inside a CIL gold processing plant, sodium cyanide reacts with gold-bearing minerals. It forms soluble complexes such as [KAu(CN)₂]. Oxygen enters the leaching tanks to speed up the reactions. An alkaline pH is kept steady. This stops cyanide loss through gas escape or unwanted side reactions with base metals. These steady conditions let dissolution finish well before adsorption starts.
This matches the usual cyanidation method. It often uses 5 to 8 mixing tanks. The layout supports steady flow between tanks. Leaching and adsorption therefore run at the same time.
Activated carbon plays a key part in catching dissolved gold from the liquid. Its many tiny pores give a large surface area for adsorption. Gold-cyanide complexes stick to these surfaces through electrochemical forces. Steady stirring keeps the particles moving, so contact stays even during each gold CIL tank refurbishment cycle. Over time, the process creates loaded carbon that holds plenty of gold ions and is ready for desorption.
Ore type affects recovery rates a great deal. Refractory ores with sulfides or organic matter often need pre-treatment like roasting or pressure oxidation before they enter the CIL CIP gold processing circuit. Particle size also changes reaction speed. Finer particles give more surface area but can make later filtration harder if they become too small.
The right cyanide level must be held steady. This lets dissolution finish without wasting extra reagent. A stable pH between 10 and 11 cuts hydrogen cyanide formation. It also keeps active cyanide ready for the needed reactions.
Fresh activated carbon gives higher adsorption power because its surface stays more active. In a typical CIL circuit, the activated carbon concentration is maintained at about 10–15 g/L. A total retention time of about 24 to 48 hours across 5 to 8 tanks, or roughly 3 to 10 hours per tank, lets dissolved gold ions and carbon surfaces approach equilibrium. This step raises recovery before the carbon moves to the stripping circuit.
After loading with gold, activated carbon goes through desorption under controlled heat and pressure. In a closed system, the gold-loaded carbon can be desorbed and electrolyzed quickly into gold mud and lean carbon. High temperature and high pressure help the process. Hot caustic sodium cyanide solution serves as one common elution method. The choice depends on plant needs.
The resulting eluate then moves through electrowinning cells. Electric current deposits metallic gold onto cathodes. The muddy gold can be smelted into ingots after simple cleaning to remove impurities.
Sludge collected from electrowinning is dried and melted with flux. It is then cast into doré bars. These bars hold high-purity metal ready for sale or further refining at special plants.

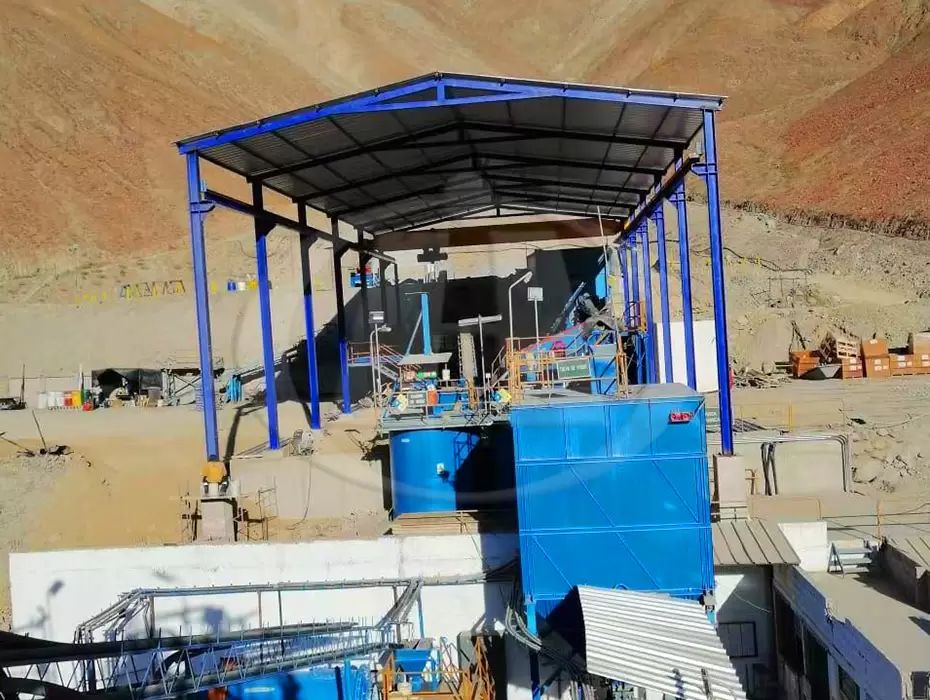

At Hongji Mine Machinery, we build complete CIL plant solutions that fit each client’s site conditions. Our systems include real-time control modules. These modules watch the leaching parameters and keep performance steady. We use modular layouts that allow fast setup.
In 2026, we applied an upgraded modular CIL design to our Peru 150 t/d gold project, adding real-time control and optimized agitation. These improvements stabilized operation under changing ore grades while reducing reagent and energy consumption.
Our tank shapes improve slurry mixing and cut energy use during agitation. Precise reagent dosing systems add to the savings. These features often lower running costs compared with standard CIP-only plants when CIL vs CIP results are checked.
We offer full training on safe operation, routine care, and process tweaks. Periodic audits help keep equipment reliable at sites worldwide. Our technical staff stays available during startup and can give remote checks when needed.
A: CIP keeps leaching and adsorption in separate tanks, one after the other. CIL brings both steps together in one system. This combined layout often raises efficiency and lowers capital cost. The contrast shows up clearly when CIL vs CIP setups are compared.
A: Total residence time inside a CIL plant usually runs from 24 to 48 hours. The exact length depends on ore type, temperature, reagent strength, and tank layout. This window helps reach the best possible extraction.
A: Yes. The combined nature of CIL CIP gold processing works well even with low-grade feed. Concurrent leaching and adsorption keep recovery high without big increases in reagent use or power draw. Modern plants built by Hongji Mine Machinery show this advantage in daily operation.
