How Does the Gold Flotation Process Improve Gold Recovery?

What Is the Gold Flotation Process in Modern Mining?

How Does Flotation Separate Gold from Ore?

The gold flotation process is a modern mineral separation method. It uses chemical agents and air bubbles to pull out valuable gold-bearing minerals from waste rock. These methods are part of modern hydrometallurgy techniques. In this method, water-repelling bits stick to air bubbles. These bits then float up to the top. They create a foam layer. Workers can skim off this layer for more cleaning. Later, this foam undergoes smelting or the leaching process to extract the final gold. In some cases, cyanide leaching is applied to maximize gold extraction efficiency. These methods fall under modern hydrometallurgy techniques.

Flotation is the preferred method for improving gold recovery. It offers strong separation power. Plus, it handles tiny scattered ores well. Flotation performs well even with ores of complex composition. It suits sulfide gold rocks that float easily. This step plays a key role in many current gold ore processing plant setups. It fits best for deposits full of sulfides. These methods ensure maximum gold recovery. Combining flotation with hydrometallurgy approaches ensures high extraction rates.

Key Components of a Gold Flotation System

In a standard gold flotation setup, things start with a grinding phase. A proper process design ensures that each stage is optimized for efficiency. Here, workers crush and grind the rock. They use tools like ball mills or rod mills to free small gold bits. Next is the conditioning phase, where reagents such as collectors, frothers, and modifiers are added to prepare the slurry for separation. Proper operator training ensures these steps are executed efficiently. At last, in flotation cells, air enters the mix. This creates bubbles that pick out water-repelling minerals.

A laboratory flotation test used 1000 g of milled ore in a 3-liter cell, with solids adjusted from 67% to 33%. Flotation lasted 15 minutes across three rougher stages, using 1200 rpm impeller speed and 6 L/min air flow. The pH was adjusted with 20% lime and sulfuric acid, while PAX and MIBC were used as collector and frother. Concentrate and tailing were then analyzed to calculate gold recovery.

What Factors Influence the Efficiency of the Gold Flotation Process?

Physical and Chemical Conditions in Flotation Cells

The flotation method's success relies a lot on keeping the right physical and chemical settings in each cell. The mix's thickness changes how bubbles meet particles. pH values shape how agents work. Heat affects speed and foam strength. The right amount of agents makes sure gold minerals split well from sulfides or waste. Also, steady air flow keeps the foam solid. This is vital for good gold recovery. Continuous operator training is essential for maintaining optimal flotation performance.

The Impact of Ore Composition on Recovery Rate

The rock's makeup has a big say in how well recovery works. Rocks rich in sulfides often do better with flotation than those with oxides. That's because their surfaces naturally push away water more. Yet, mud or plant bits in the input can block bubble making. This cuts the overall results. For tough cases, early treatments like heating or air exposure help boost recovery for hard-to-treat rocks. Optimizing the leaching process further increases gold extraction efficiency.

Sulfide rocks mostly cover sulfide gold types, like quartz vein or heat-changed kinds. They also include mixed-sulfide gold rocks and multi-metal sulfide gold rocks. These types make great picks for flotation boosting. Their easy floating traits help a lot.

How Are Reagents Used in the Gold Flotation Process?

Types of Reagents Applied in Gold Flotation

Collectors

Collectors boost water-repelling traits. They help gold bits cling to air bubbles. Usual ones include xanthates and dithiophosphates. These fit certain rock makeups.

Frothers

Frothers steady the foam build-up on top. They keep the stuck bits afloat long enough to gather. They also guide bubble sizes in the cells.

Modifiers or Regulators

Modifiers tweak pH and handle extra stirring or quieting of minerals we don't want, like pyrite or quartz.

How Is Reagent Dosage Optimized?

Optimizing agent amounts starts with lab tests on sample rocks. These tests find the best mixes for given sites. Too much use raises costs. It can also lower pickiness by waking up extra minerals. During plant runs, steady checks keep the right balance. These links agents use to recover results. It's a main focus we stress at our gold flotation process factory in China.

How Does Equipment Design Affect Gold Flotation Performance?

The Function of Different Types of Flotation Cells

The way flotation cells are built greatly shapes split results:

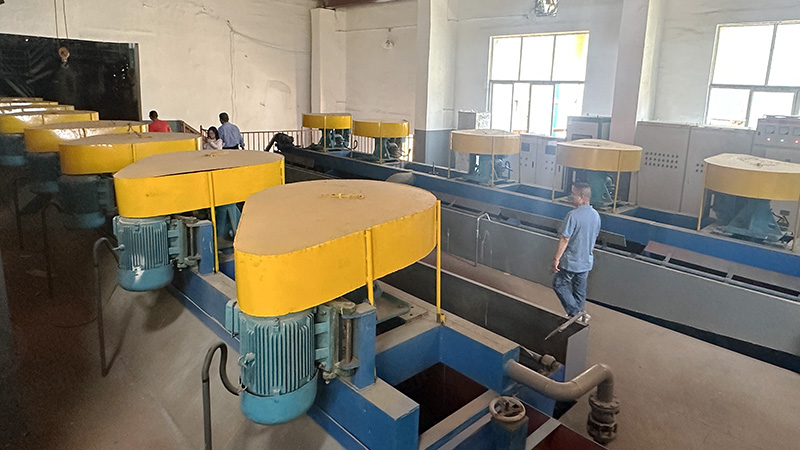

• Mechanical cells use stirrers for blending and air addition. They work well for mid-sized jobs.
• Pneumatic cells depend on pumped air blasts. They save more energy.
• Column flotation systems give better pure output. That's thanks to opposite-flow rinsing that clears stuck waste bits.

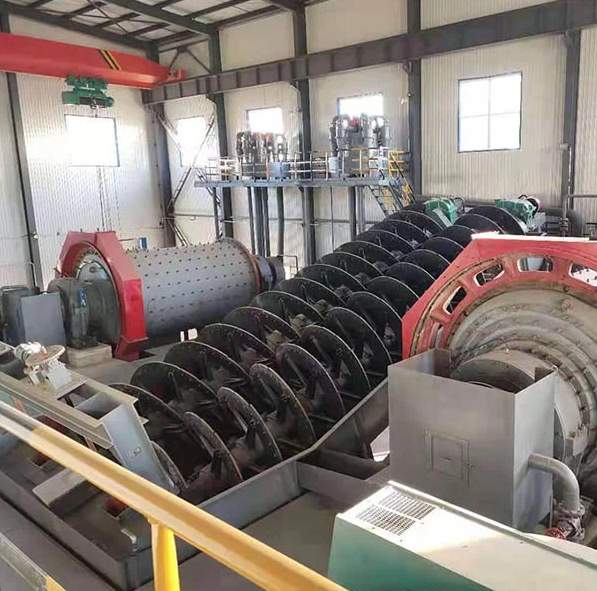

Hongji Mine Machinery lineup covers all these setups. We offers fresh flotation machine options like GF Flotation Machine, BF Flotation Machine, and so on for various rock traits.

The Importance of Pulp Aeration and Agitation Control

Even blending boosts the touch between air bubbles and tiny gold bits. This raises recovery chances. But too much stirring can break bubbles. That leads to less output. To fix this, auto systems in Hongji Mine Machinery's gear keep steady watch on air rates, stir speed, and mix thickness. These factors matter across setups. They ensure smooth work in any modern gold separation plant setup in China.

Hongji Mine Machinery’s Contribution to Efficient Gold Flotation Processing

How Does Hongji Mine Machinery Enhance the Gold Flotation Process?

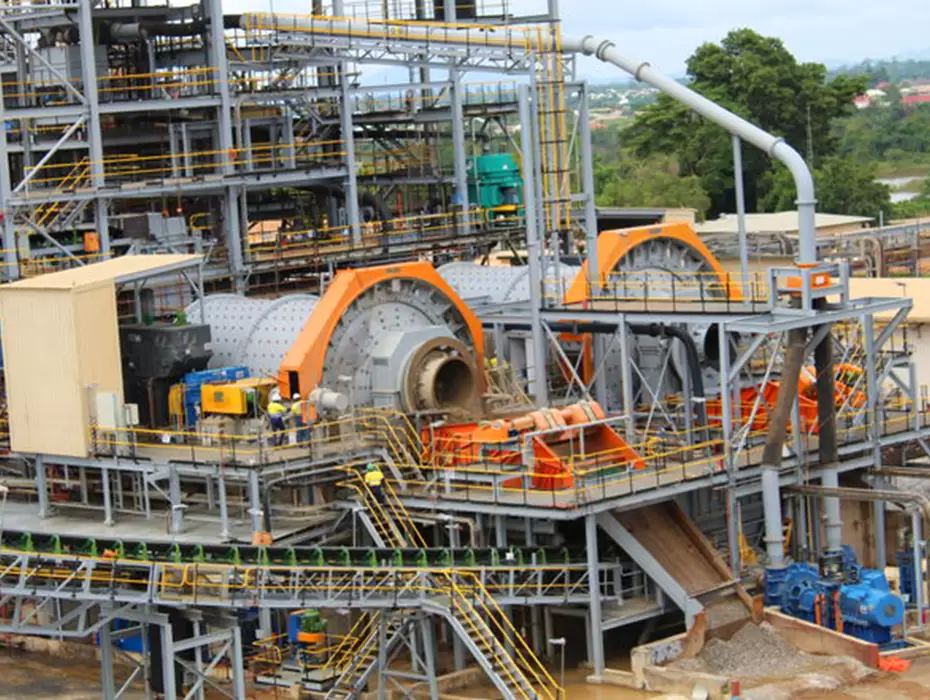

As a top China gold processing plant manufacturer, we at Hongji Mine Machinery focus on building full flotation systems. We tune them to rock traits seen around the world. Examples range from Ghana’s 50TPH rock gold project to Peru’s 150t/d CIL plant. Our systems have smart air control parts. These steady foam-making while cutting energy needs. Every setup targets higher pure grades. It does this with less agent use. We back it with smart process design and operator training programs fit for local spots. This shows our step-by-step style, which allows growing solutions from small test units to big factory plants.

Technological Advantages Offered by Hongji Mine Machinery’s Gold Flotation Equipment

Intelligent Control Systems

Live watch tech boosts steadiness. It auto-tunes work settings from sensor info. This sharpens accuracy in key bubble-bit linking steps.

Modular Design

Our piece-by-piece build eases setup in far-off mine spots. It also cuts stop time for fixes. Clients value this in big gold mine plant runs worldwide.

Energy Optimization Features

Power-saving motors pair with tuned stir shapes. They lower energy use without cutting flow. This marks Hongji Mine Machinery among world mining machinery sellers. We aim for green output goals.

FAQ

Q: What type of gold ore is best suited for flotation?

A: Gold flotation works best with sulfide-type ores containing minerals like pyrite or chalcopyrite that readily attach to air bubbles during processing at any professional gold ore processing plant.

Q: Can flotation be used for recovering free-milling gold?

A: While some free-milling gold can be recovered via flotation, combining it with gravity concentration methods generally improves total recovery rates within integrated gold processing plants.

Q: How does pH affect the gold flotation process?

A: pH directly influences reagent activity. Slightly alkaline conditions (around pH 8–10) typically enhance selectivity by preventing unwanted mineral activation—ensuring optimal performance across diverse ore types handled by our team at Hongji Mine Machinery dedicated to maximizing sustainable gold recovery.
