Froth flotation is a basic process in mineral processing. It separates useful minerals from waste rock by surface chemistry. In gold production, this method plays a key role in concentrating fine gold particles. These particles are often hard to recover by gravity separation or cyanidation. The process starts with a slurry. The slurry contains finely ground ore mixed with water and reagents. Air bubbles are added to the slurry. Hydrophobic gold particles attach to the bubbles and rise to the surface. The froth with these particles is skimmed off for further treatment.
Froth flotation provides a solid method for pulling apart tiny gold bits trapped in sulfide minerals or tricky rock formations. This step boosts gold recovery overall. It works well with low-grade ores by lifting their recovery rates. Operators often pair it with cyanide leaching or bioleaching. That mix leads to better extraction results. A well-planned leaching process adds support to the flotation step. Together they help reach the highest gold recovery possible.
Ores with mixed compositions respond well to flotation because the process offers solid flexibility. Operators often turn to flotation for sulfide-bearing gold ores that float easily. These sulfide ores come in several forms. Most are gold ores found in quartz veins or altered by hydrothermal activity. Others include multi-sulfide gold ores and those carrying multiple metals. This flexibility helps operators earn strong economic returns from tough deposits.
Sulfide minerals such as pyrite and arsenopyrite often hide tiny gold inclusions. These inclusions cannot be recovered by simple gravity methods. Collectors like xanthates change the surface of these sulfides. They make the surfaces hydrophobic. This change promotes attachment to air bubbles during flotation. pH adjustment plays an important role. It controls which minerals float. Alkaline conditions usually favor the selective recovery of gold-bearing sulfides. At the same time, they suppress unwanted gangue minerals.
The first stage involves crushing and grinding to free gold-bearing particles from surrounding rock. Proper process design ensures optimal particle size and maximizes gold recovery. Accurate equipment calibration during this stage guarantees consistent flotation performance. For some operations, a follow-up leaching process may enhance final recovery.
The first stage involves crushing and grinding to free gold-bearing particles from surrounding rock. Proper process design ensures optimal particle size and maximizes gold recovery. Accurate equipment calibration during this stage guarantees consistent flotation performance. For some operations, a follow-up leaching process may enhance final recovery.

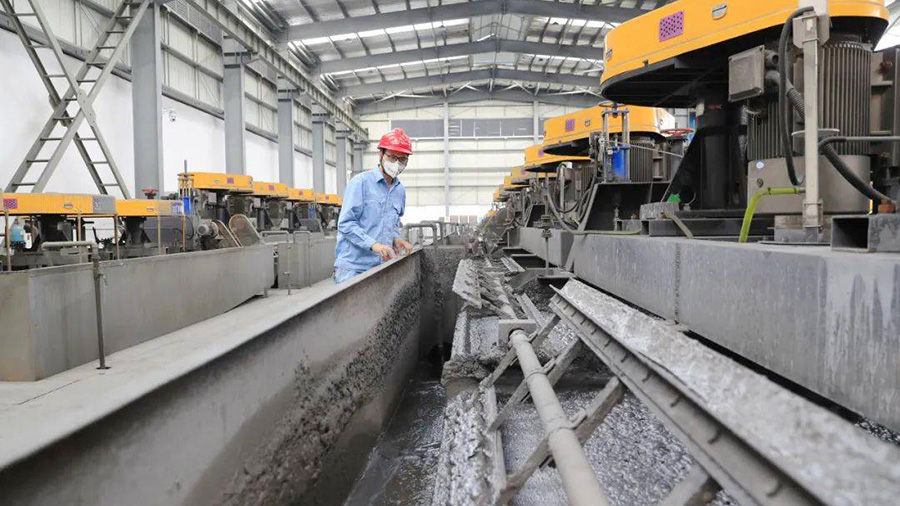

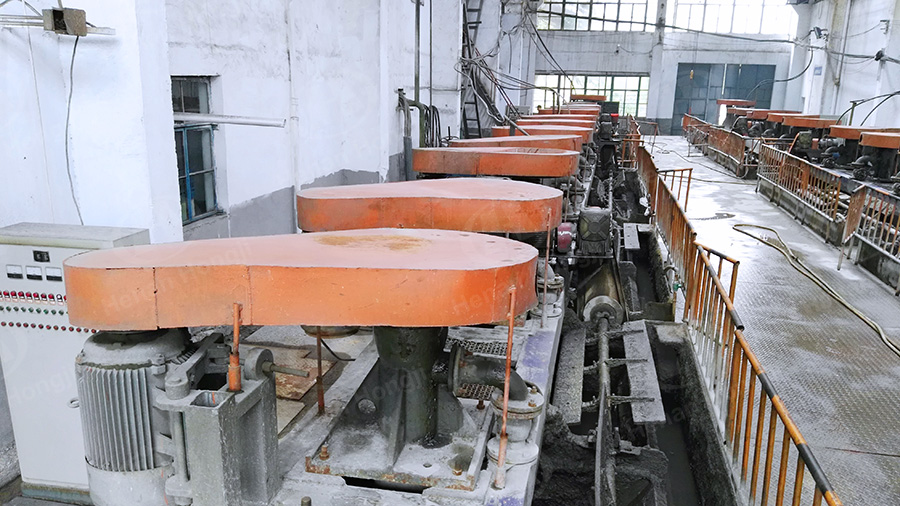

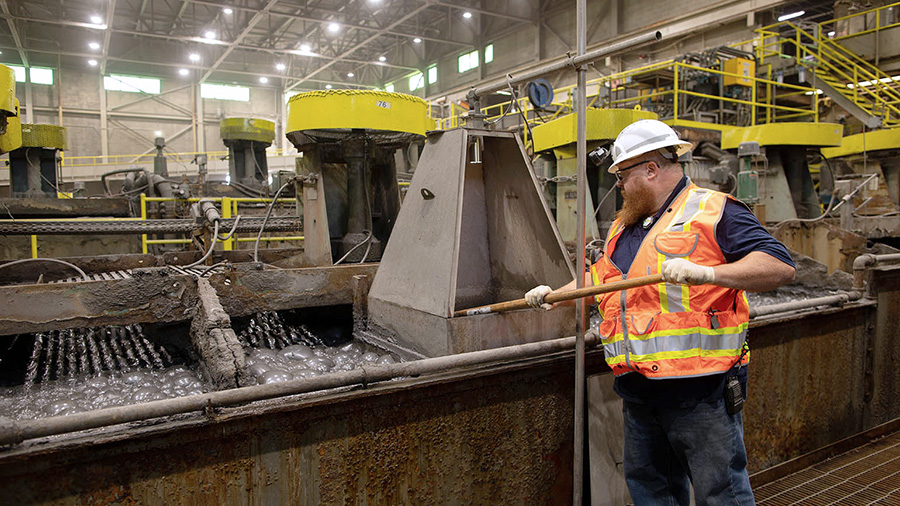

Once reagents are added, air is introduced into the flotation cells. Hydrophobic particles attach to rising bubbles. After the ore pulp and air mix between the blades, they are pushed upward from the upper edge of the impeller. They are stabilized and directed by the stator. They then enter the whole tank. The resulting froth layer carries concentrated gold particles that overflow into collection launders for later processing.
Complex ores cause difficulties. They contain multiple sulfides or oxide phases. These phases interfere with selectivity during flotation. Fine particle sizes can also hinder bubble attachment. They cause unwanted materials to enter concentrates. In our experience as a leading China gold processing plant manufacturer, managing these variables needs advanced equipment design and tailored reagent strategies.
Because the mineral composition of complex ores can vary greatly from one deposit to another, a standard flotation process may not always deliver the desired recovery rate. If you are facing recovery challenges with low-grade or difficult-to-process gold ores, you can contact Hongji Mine Machinery’s technical engineers for a customized solution based on your ore characteristics and production goals.
Sequential or differential flotation separates mineral groups in stages. It first floats one set of minerals before targeting another. This strategy produces high-purity concentrates. These concentrates suit further refining at any gold processing factory.
Depressants suppress unwanted minerals. Activators enhance specific phase floatability. For instance, copper sulfate may activate pyrite surfaces that contain invisible gold inclusions. Lime controls pH balance for better selectivity.
Particle size distribution affects bubble-particle collision probability. Too coarse particles reduce attachment efficiency. Too fine particles lead to entrainment losses. Pulp density influences collision frequency. Higher densities increase interaction. But they may reduce bubble mobility if too much is used.
Hongji Mine Machinery’s SF/XJ self-priming mechanical stirring flotation machines handle these challenges. They ensure uniform aeration throughout cells. They improve the concentrate grade by 4–6%. They improve the recovery rate by 8%. They increase output by 12%. These performance metrics show how optimized physical parameters can produce measurable gains in plant productivity.
Reagent dosage must strike a balance between selectivity and overall recovery rate. Overdosing can cause gangue contamination. Underdosing leads to poor yield. Maintaining proper pH ensures stable interactions among reagents and mineral surfaces. Typically, pH around 8–10 for sulfide-gold systems promotes collector adsorption without excessive frothing.

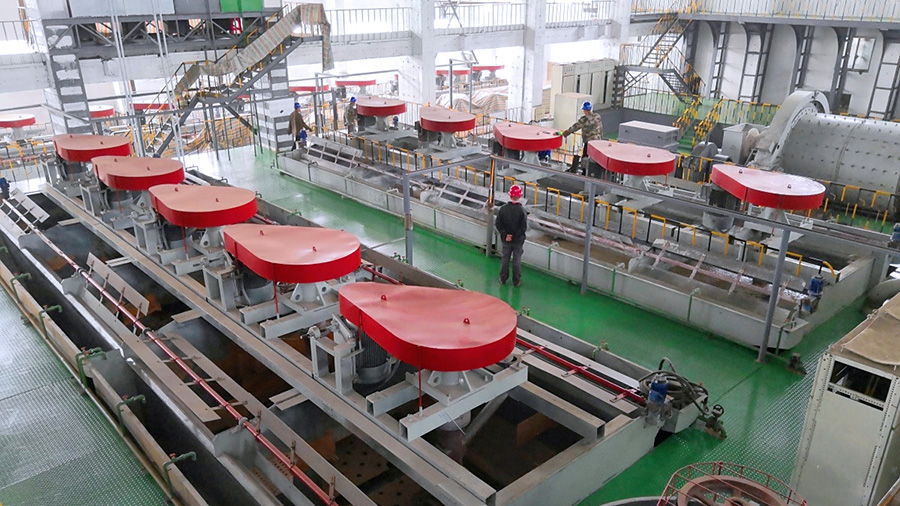

At Hongji Mine Machinery, we specialize in designing advanced flotation cells. These cells are integrated into complete beneficiation circuits. The circuits run across Asia, Africa, and South America. Our portfolio includes SF/XJ mechanical stirring machines, XCF/KYF inflatable units, GF coarse particle models, and aerated columns. All these models are engineered for reliability in both sulfide-rich deposits and refractory complex ores.
Hongji Mine Machinery designs advanced flotation cells tailored for sulfide and complex gold ores. Our systems integrate precise control mechanisms. The mechanisms use PLC-based dosing equipment. They also use efficient aeration modules. These modules help consistent froth formation across varying feed conditions. These advantages are sought by operators who want a trusted China gold processing plant manufacturer.
Our engineering expertise ensures consistent performance across diverse ore types. One example comes from quartz vein deposits in Peru’s 150 t/d CIL project. Another example comes from Ghana’s 50 TPH rock-gold flotation line. Each installation shows our ability to deliver turnkey solutions. These solutions include crushing, grinding, classification, leaching tanks, thickening units, and automated flotation circuits. These circuits are suitable for any modern gold processing factory setup.
We provide customizable configurations. These configurations adapt to different production scales. They range from pilot plants to multi-thousand-ton-per-day operations. This ability makes us one of the most reliable partners among global suppliers engaged in sustainable gold production initiatives.
A: Gold froth flotation works best with sulfide-rich ores. Fine disseminations occur within pyrite or arsenopyrite matrices. These ores respond efficiently to collector reagents. These reagents are designed for hydrophobic surface modification.
A: While coarse free-milling gold is usually recovered economically via gravity concentration, fine or refractory fractions benefit from flotation combined with a proper leaching process. Integrating cyanide leaching, bioleaching, and optimized process design ensures higher gold recovery.
A: Alkaline conditions generally favor the selective adsorption of collectors onto sulfides. At the same time, they suppress unwanted silicate floatability. Maintaining appropriate pH stability ensures optimal reagent activity. This activity is within industrial-scale Chinese gold plant environments managed by Hongji Mine Machinery experts.
