What Operational Advantages Does a Gold Elution Plant Offer in Modern Gold Processing Plants?

What Is Elution in Gold Processing and Where Does It Fit?

In a carbon-in-pulp or carbon-in-leach flowsheet, adsorption loads activated carbon with dissolved gold complexes. A gold elution plant sits after carbon recovery and before the gold room: it removes adsorbed gold, sends solution to electrolysis, and prepares lean carbon for reuse. Elution in gold processing is the controlled bridge between adsorption and final recovery, so the gold elution process affects batch value and plant reliability.

How Does Elution Release Gold from Loaded Carbon?

After adsorption, a carbon screen separates loaded carbon from cyanide pulp. The carbon then enters an elution machine or equivalent circuit where a selected chemical solution and controlled operating conditions strip gold into solution. The resulting solution can be electrolyzed to form gold mud, while the stripped carbon becomes lean carbon. The exact chemistry, temperature, pressure and cycle settings must be established from site tests and equipment design; they should not be assumed from a generic flowsheet.

Why Is the Elution Stage More Than a Carbon-Washing Step?

The stage creates three managed outputs: gold-bearing solution, gold mud after electrolysis, and lean carbon for reuse. This makes a gold elution circuit a production-control area rather than a simple wash tank. Clear records help trace material and identify losses early.

Is an Elution Column Gold System the Same as Electrowinning?

No. Gold elution and electrolysis or electrowinning are connected stages, but they perform different functions. Elution strips gold from loaded activated carbon into a gold-bearing solution, while electrolysis or electrowinning recovers gold from that solution. Understanding this distinction helps define equipment boundaries, operating controls and gold-room interfaces in a gold elution process.

Comparison	Gold Elution	Electrolysis / Electrowinning
Main purpose	Remove adsorbed gold from loaded activated carbon	Recover gold from the gold-bearing solution
Feed material	Loaded activated carbon	Gold-bearing eluate or solution
Main output	Gold-bearing solution and lean carbon	Deposited gold or gold mud and treated solution
Typical equipment	Elution column or gold-loaded carbon desorption system, solution tanks and related heating/circulation equipment	Electrowinning or electrolysis cell, electrodes and related electrical equipment
Position in the process	After loaded-carbon recovery and before electrolysis	After elution and before downstream gold-mud treatment or refining
Key control focus	Solution chemistry, temperature, pressure, flow and elution cycle	Solution condition, electrical current/voltage, electrolyte flow and gold collection

How Does a Gold Elution Plant Improve Recovery Workflow Control?

A dedicated gold elution plant gives the recovery team a defined place to schedule batches, isolate equipment and reconcile carbon movements. Operators can assign responsibility for each transfer and compare feed, solution and gold-mud records. This structure helps coordinate continuous leaching with batch recovery.

How Does a Gold Elution Circuit Separate Production Tasks?

In a well-organized gold elution circuit, carbon separation, pre-treatment, desorption, solution collection, electrolysis and carbon return are distinct tasks with controlled handoffs. The sequence mirrors the broader CIP route: pulp preparation, cyanide leaching, carbon adsorption, loaded-carbon desorption, electrolysis, carbon recycling and pulp treatment. Separating these tasks makes shutdowns easier to plan and allows maintenance on one area without losing visibility of the others.

Which Operating Records Matter in an Elution Plant?

Operators should trend carbon identity, batch timing, solution transfers, electrolysis observations, gold-mud collection and lean-carbon return. A useful elution plant record also notes abnormal flow, chemical additions and cleaning actions, while leaving numerical limits to approved procedures. These records support reconciliation and troubleshooting.

What Resource and Maintenance Advantages Can Elution Deliver?

The principal resource benefit of an elution process is controlled recovery of value from carbon that has already captured gold. The plant also creates a route for lean-carbon treatment and return. Systematic inspection and cleaning make maintenance more predictable.

How Do Carbon Regeneration and Solution Reuse Support Continuity?

Lean carbon can be acid-treated, washed until neutral and returned to the adsorption cycle. That loop reduces dependence on constantly replacing carbon and keeps adsorption supplied. Solution routing should be designed for controlled collection and reuse where approved. These are operating principles, not fixed recovery promises.

Which Design Features Make a Gold Elution Column Easier to Maintain?

When comparing a gold elution column arrangement or another elution machine, buyers should ask how operators access internals, isolate lines, verify flow, remove deposits and collect samples. Drainage, lifting points and inspection ports can shorten maintenance. Testing should confirm the arrangement.

How Do Safety and Process Controls Shape Modern Gold Elution?

Modern gold recovery requires containment, interlocks and documented chemical handling. A gold elution plant should be included in the site risk assessment, with responsibilities for start-up, shutdown, abnormal conditions and transfer to the gold room. Safety design must follow local regulations.

Why Does Closed-System Operation Matter in Gold Elution?

Closed-system operation keeps loaded-carbon treatment and solution transfers inside defined equipment boundaries. It limits uncontrolled exposure points and clarifies isolation during inspection. A closed gold elution process still needs ventilation, emergency response, training and engineering verification.

How Should Operators Connect Elution Controls to the Gold Room?

The handoff should identify the batch, solution status, electrolysis condition and gold-mud destination. In an elution plant, this connects process control with secure gold-room accounting and creates an auditable chain.

How Do Upstream Gold Processing Plants Affect Elution Performance?

Elution cannot compensate for unstable upstream preparation. Grinding and classification influence liberation; leaching and adsorption determine carbon loading; thickening and filtration manage liquid and solids. A gold processing plant should therefore be reviewed as one connected system.

Which Upstream Steps Stabilize Loaded-Carbon Feed?

Ball mills and spiral classifiers support grinding and classification for downstream treatment. Leaching tanks provide the mixing environment for cyanide leaching and carbon adsorption. Stable feed preparation helps the recovery circuit receive more predictable carbon batches, while final settings still require site-specific testing.

Why Do Thickening and Filtration Matter Before Gold Recovery?

Thickeners help manage pulp density and water balance, while a box filter press separates solids into filter cake as liquid passes through filter cloth. These functions support water recycling and orderly pulp treatment after adsorption. They do not replace elution, but they reduce confusion at the solids-liquid interface and make the overall gold processing plant easier to operate and maintain.

How Can Hongji Mine Machinery Support Gold Elution Plant Planning?

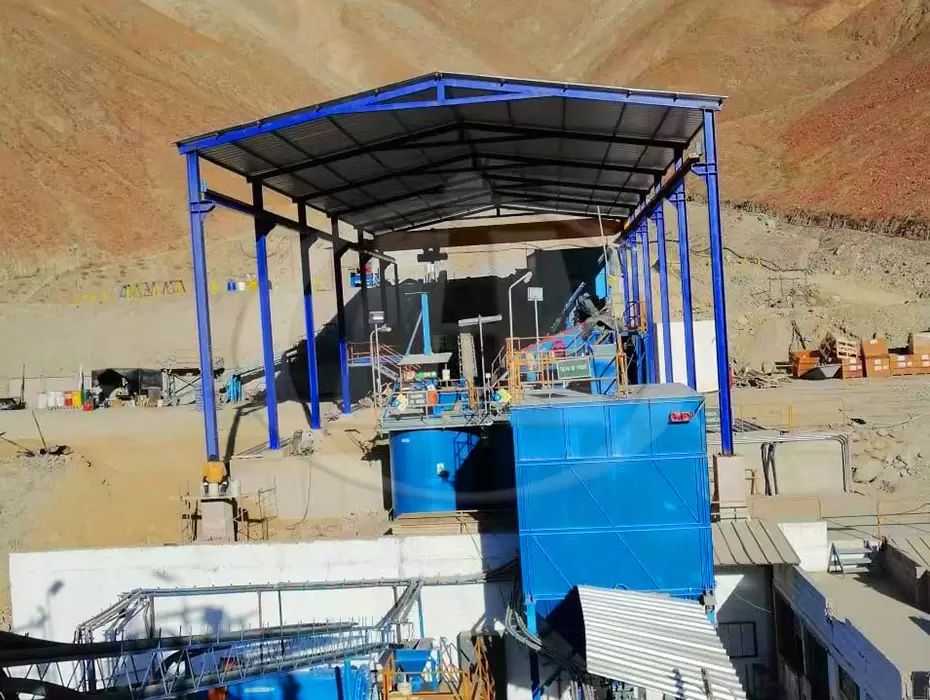

At Hongji Mine Machinery, we approach a gold elution plant as one part of a tested gold-recovery flowsheet. Our scope can include a gold processing plant, leaching tank, energy-saving ball mill, bf flotation machine, thickener and box filter press, selected for the ore and process route. We also provide beneficiation testing and project/process design. Our Peru CIL case provides a more specific project reference: the plant processes quartz vein gold ore at 150 t/d and integrates crushers, ball mills, agitation leaching tanks, activated carbon adsorption columns, carbon screens and a gold-loaded carbon desorption system.

We also provided installation and commissioning support, operator training and ongoing maintenance services. According to the published project feedback, this support helped maintain smooth plant operation while minimizing downtime and supporting productivity. The case demonstrates our experience with CIL processing and gold-loaded carbon desorption systems; it is project context, not a performance guarantee.

Which Hongji Mine Machinery Products Support the Gold Processing Front End?

We use grinding, classification, leaching, flotation and dewatering equipment to establish the interfaces that feed a recovery section. Our energy-saving ball mill and related classification equipment prepare material; our leaching tank supports the leach-adsorption environment; and our thickener and box filter press support liquid-solid separation. Where flotation is part of the ore route, our BF Flotation Machine is mapped to roughing and scavenging duties. The appropriate elution machine and circuit boundary should then be confirmed from test results and operating objectives.

How Do We Scope Gold Elution System Design?

For a buyer searching for gold elution system, we first request ore characteristics, carbon-loading information, target operating mode, utilities, chemical-handling constraints, gold-room arrangement and local engineering requirements. We then use beneficiation testing and process design to define interfaces and equipment duties. We do not attach specific performance claims to a generic concept. Our role is to develop a documented scope for the gold elution plant that can be reviewed by the owner's metallurgical, mechanical and safety teams.
