What Key Processes Take Place in a Copper Refinery Plant After Concentration and Smelting?

A copper refinery plant receives copper that has already passed through concentration and smelting. However, this metal is not yet ready for demanding electrical or manufacturing uses. The refinery carefully prepares anodes. It then transfers copper electrochemically to cathodes. During this stage, the facility manages impurities and carefully checks the finished sheets. This exact sequence also prevents a common purchasing mistake. Refining smelted anodes is not the same route as copper electrowinning from a leach solution. Upstream mineralogy, copper grades, and concentrate moisture still strongly influence all downstream operations.

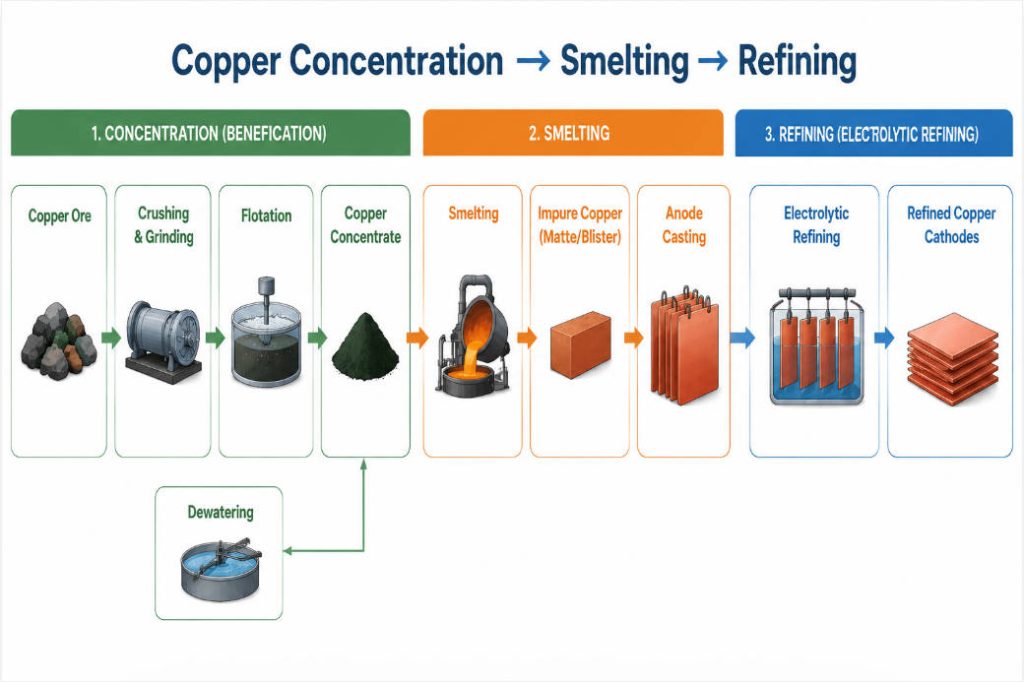

What Happens Between Copper Concentration, Smelting, and Refining?

Why Does Copper Concentrate Need Further Processing?

A copper beneficiation process separates valuable copper minerals from crushed and ground copper ore. Flotation then produces a copper concentrate. This material features a higher copper grade than the initial feed. However, the concentrate still contains gangue, moisture, and various other components. Concentration successfully reduces the overall mass sent forward. Yet, it does not produce finished metal. The material must be thoroughly dewatered. After that, it is prepared for thermal processing.

What Does a Copper Smelter Send to a Refinery?

The copper smelter converts the concentrate into impure metallic copper. This metal can then be cast as anodes. Next, the refinery accepts those specific anodes for thorough purification. The smelter effectively separates copper from much of the surrounding mineral matrix. Meanwhile, the refinery strictly controls the final purification stage. Any changes in concentrate chemistry and copper grades can heavily affect smelting practice. Such changes also impact the overall anode condition.

How Is Anode Preparation Managed Before Copper Electrolysis?

What Is Checked Before Anodes Enter the Cells?

Anodes always need secure suspension. They also require suitable spacing inside the cells. Operators closely inspect the physical condition of each piece. They arrange every anode for consistent contact and proper alignment. Poor positioning can easily create uneven electrical conditions. It might even allow electrodes to touch. Traceable lots help workers connect early anode feed conditions with later quality observations.

How Are Electrolyte and Cathode Blanks Prepared?

Before copper electrolysis actually begins, several items must be completely ready. These include the cells, contacts, electrolyte circuit, and cathode surfaces. The electrolyte actively carries copper ions. Clean contacts and correctly positioned cathode blanks reliably support even deposition. Dedicated teams continuously monitor the solution condition. They also track cell operation according to the selected process design. They do not rely on just one universal setting.

What Takes Place During Electrolytic Refining in a Copper Refinery Plant?

How Does Electrolytic Refining Transfer Copper to the Cathode?

During electrolytic refining, direct current actively drives copper away from the impure anode. The metal moves into the solution and finally onto the cathode. The anode copper loses electrons. It then enters the electrolyte as ions. At the cathode, these ions gain electrons and deposit as solid metal. Consequently, the anode becomes noticeably smaller. At the same time, the cathode grows. A copper refinery plant carefully manages the entire circuit. It controls electrode spacing, fluid circulation, and the overall schedule for highly controlled deposition.

Where Do Non-Copper Materials Go During Refining?

Impurities naturally behave differently. Some elements remain in the solution under strictly controlled conditions. Meanwhile, less soluble material can slowly settle as anode residue. The plant actively prevents unwanted material from contaminating the growing cathode. It also removes the settled residue without disrupting daily operation. Constant monitoring, proper circulation, good housekeeping, and routine maintenance all work closely together. This reliable separation allows copper electrolysis to produce high-quality cathode copper. This final metal is much more suitable for fabrication than the incoming anodes.

How Are Cathode Copper Sheets Handled and Quality-Controlled?

What Happens When Cathode Copper Leaves the Cell?

At the end of a production cycle, cathodes are safely removed. Workers ensure they do not damage the delicate metal surface. The newly deposited copper is then separated from reusable blanks. Alternatively, it is handled as finished sheets. This choice depends entirely on the specific cell system. The cathodes are carefully washed, closely inspected, and accurately weighed. They are then grouped and fully prepared for dispatch. Careful handling successfully limits bends. It also reduces surface deposits and any retained solution.

Which Checks Support Consistent Copper Grades?

Quality control effectively combines representative sampling with strict visual and physical checks. A refinery thoroughly reviews the chemical composition. Inspectors also look closely for nodules, rough growth, or unwanted contamination. They check for any surface irregularities. Accurate weight and dimensional checks strongly support consistent lots. An out-of-specification result can be easily traced back. Teams review anode quality, electrolyte condition, and contacts. They also check spacing, circulation, and past handling records. The main aim is always consistent cathode copper. The goal is not merely a completed cycle.

How Do Beneficiation and Dewatering Affect Refinery Performance?

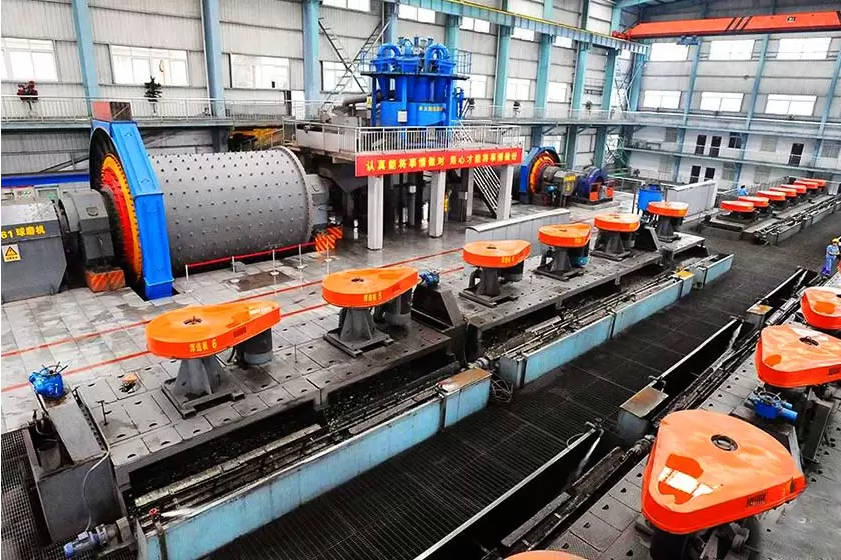

How Does a Copper Beneficiation Process Prepare Copper Ore?

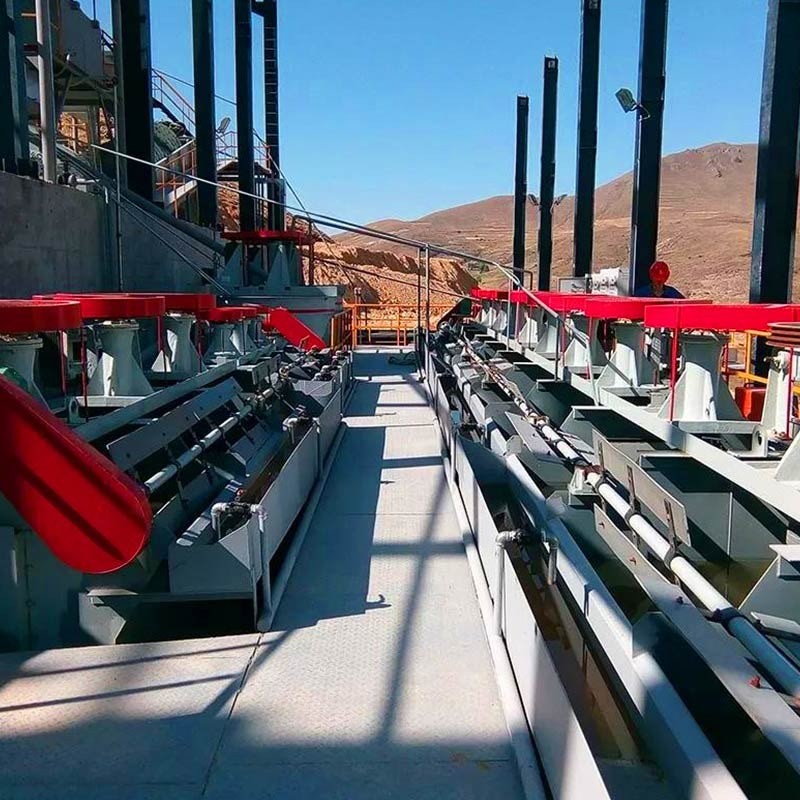

Upstream copper beneficiation always begins with a specific flowsheet. This plan is carefully matched to the unique ore mineralogy. After initial crushing, a ball mill significantly reduces the particle size. This step ensures that copper minerals can easily separate from the waste gangue. A spiral classifier can work smoothly with the mill in a closed circuit. It returns any coarse particles for further grinding. For suitable ores, a BF Flotation Machine strongly supports roughing and scavenging. This happens inside a modern copper beneficiation plant. Highly stable grinding and flotation help prepare a very consistent copper concentrate. This material is then ready for dewatering and smelting.

Why Do Thickening and a Filter Press Matter for Copper Concentrate?

Flotation concentrate is essentially a wet slurry. Therefore, solid-liquid separation is absolutely required before transport or thermal processing. A thickener efficiently settles the heavy solids. It allows the clarified water to overflow safely. A Disc Vacuum Filter or a Box Filter Press then greatly reduces the remaining moisture. In a filter press, sturdy plates and durable cloth retain the solids as a firm cake. Meanwhile, the clear liquid leaves the chamber. These essential steps vastly improve concentrate handling. They also aid water management without actually performing electrolytic refining.

How Is Copper Electrowinning Different From Anode Refining?

What Is Copper EW in a Hydrometallurgical Route?

Copper EW successfully deposits copper from a copper-bearing solution directly onto cathodes. This specific route follows leaching and solution purification. It does not use concentration, smelting, and anode casting. Copper electrowinning and anode refining both heavily use electrical energy. However, their starting feeds differ greatly. Copper electrowinning always begins with a highly purified solution. Conversely, electrolytic refining transfers copper from impure metallic anodes.

When Does SX-EW Copper Differ From Electrolytic Refining?

In an SX-EW copper route, solvent extraction effectively upgrades and cleans the leach solution. This happens right before electrowinning. These are closely linked hydrometallurgical stages. On the other hand, electrolytic refining only starts after a copper smelter has successfully produced solid anodes. Buyers should clearly distinguish ore mineralogy, leach behavior, and specific solution requirements. They must also consider smelting availability before choosing a final route. A copper electrowinning system is definitely not just another name for an anode electrorefinery.

To select the most suitable copper production route, buyers should first understand the key differences between copper SX-EW and conventional electrolytic refining, especially regarding feed materials, process stages, and upstream requirements.

Item	Copper SX-EW	Electrolytic Refining	Main Difference
Starting Feed	Copper-bearing leach solution after solvent extraction and solution purification	Impure copper anodes produced after smelting	SX-EW starts with a purified solution, while electrolytic refining starts with solid copper anodes
Main Process Stages	Leaching → Solvent Extraction (SX) → Electrowinning (EW)	Smelting → Anode Casting → Electrolytic Refining	SX-EW is a hydrometallurgical route, while refining follows a pyrometallurgical route
Copper Deposition Method	Copper ions are directly deposited from the purified electrolyte onto cathodes during electrowinning	Copper dissolves from impure anodes and deposits onto cathodes through electrolysis	Both use electrochemical principles but involve different copper transfer mechanisms
Upstream Requirements	Depends on ore mineralogy, leachability, solution chemistry, and impurity control	Depends on concentrate quality, smelting conditions, and anode quality	The required upstream preparation is significantly different
Final Product	High-purity copper cathodes produced directly from solution	High-purity copper cathodes produced from refined anodes	Both produce cathode copper, but through different processing pathways

How Can Hongji Mine Machinery Support an Integrated Copper Project?

Which Hongji Mine Machinery Products Prepare Copper Concentrate?

At Hongji Mine Machinery, we carefully configure upstream equipment. We base this on specific ore characteristics and the required concentrate preparation route. Our available equipment categories include Jaw Crushers for primary size reduction. We offer Energy-Saving Ball Mills and wet ball mills for efficient grinding. We also provide Spiral Classifiers for reliable closed-circuit classification. Furthermore, we supply BF Flotation Machines for effective roughing and scavenging. Our Thickeners, Disc Vacuum Filters, and Box Filter Presses strongly support solid-liquid separation. They also handle concentrate dewatering.

How Do We Apply Process Design to Copper Electrowinning?

Hongji Mine Machinery also provides excellent project and process design support. This includes smart equipment selection informed by detailed beneficiation testing. Our published Zambia 2000 t/d copper mineral processing project clearly illustrates the upstream project context. In this context, crushing, grinding, separation, and dewatering decisions must work flawlessly as one unified system. For specific hydrometallurgical projects, our copper electrowinning plant solution directly addresses the cathode-production scope. This starts from a suitable copper-bearing solution. We always first clarify whether a buyer needs an upstream copper beneficiation plant, an SX-EW route, or careful coordination with a completely separate copper refinery plant.
