Gold recovery operations today rely on the elution circuit. It helps separate gold from activated carbon once adsorption is complete. The gold elution process works by sending a hot caustic cyanide solution through loaded carbon. This step releases the gold ions that were stuck to the carbon.

In a closed system, the loaded carbon releases its gold rapidly. The solution then proceeds to the electrowinning stage. Gold sludge is formed while the carbon becomes lean again. High temperature and high pressure keep the chemistry steady during this release.

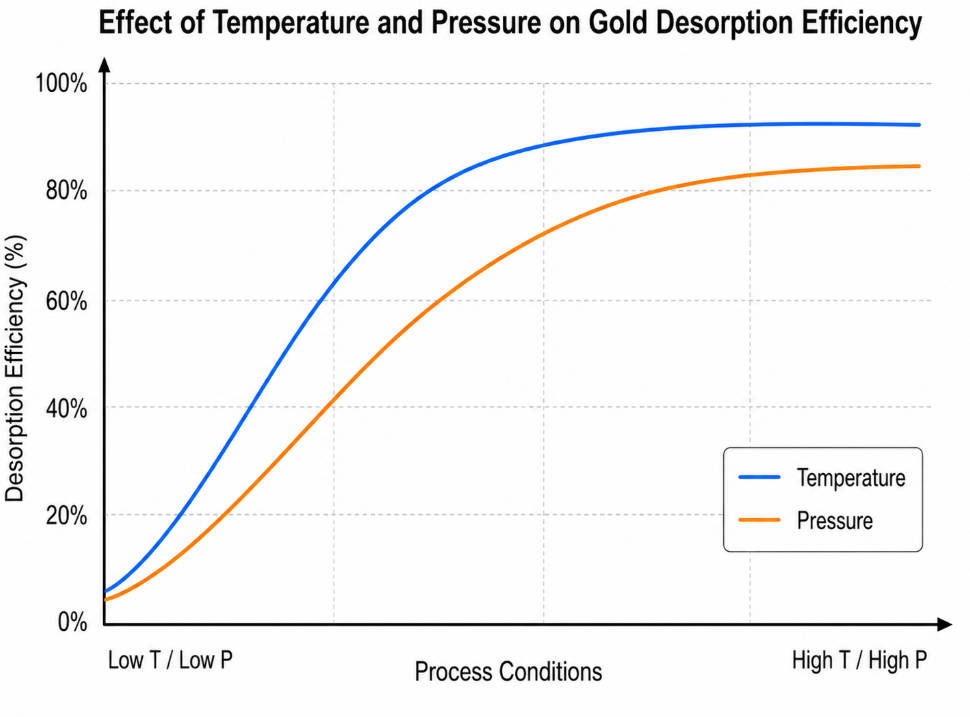

The schematic below illustrates the general effect of temperature and pressure on relative gold desorption efficiency under controlled elution conditions. This schematic is provided for process explanation only and should not be interpreted as plant test data. Actual performance depends on elution chemistry, carbon condition, flow distribution, and circuit design.

The gold-bearing solution next flows to electrowinning cells. Metallic gold settles on the cathodes. Workers later smelt this gold into bullion.

The desorption electrolysis system adds certain anions to the mix. These anions compete with the gold complex for space on the carbon. As a result, AU(CN)₂- moves into the solution. Electrolysis then turns the dissolved gold into solid ingots.

This elution process forms a key step inside Carbon-in-Pulp (CIP) and Carbon-in-Leach (CIL) circuits. Mines around the world use these setups every day.

Key Components of an Elution Circuit

An elution plant operates effectively only when all key components function in coordination. Temperature and pressure must be tightly controlled at all times.

• Elution Column: This column serves as the main vessel. Desorption happens here under high temperature and pressure. Gold ions move from carbon into solution in a steady flow.
• Heat Exchanger and Heater: These units hold the right temperature for stripping. They deliver steady energy to the circuit.
• Electrowinning Cell: This cell pulls gold from the eluate with an electric current. The metal that forms is pure enough for smelting.

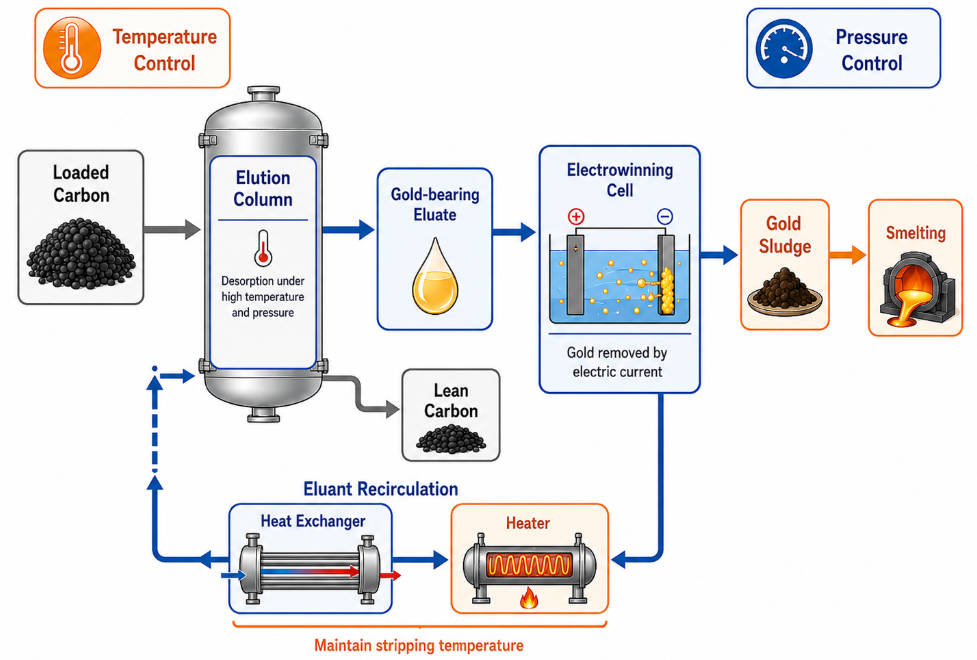

The following flow diagram shows how the main components of an elution circuit work together in a typical gold stripping process.

This flow diagram showing loaded-carbon stripping, heat recovery, electrowinning, and lean-carbon return. Adapted from standard CIP/CIL gold-recovery practice described in Adams and the International Cyanide Management Institute.

How Is Process Control Maintained During Carbon Stripping?

What Parameters Are Monitored to Ensure Stability?

Operators watch temperature, pressure, flow rate, pH, and cyanide levels at all times. Sensors feed data to control systems in real time. Temperature matters most because it determines how fast gold leaves the carbon. Pressure keeps the solution moving evenly through every pore.

Techniques for Achieving Consistent Gold Recovery Efficiency

Feedback loops hold temperature and flow steady inside any gold elution system design in India. Sensors gather fresh readings at regular intervals. SCADA screens show the full picture to the control room. Staff checks and resets instruments on a fixed schedule so numbers stay true over long runs.

Hongji Mine Machinery builds extra backup into the control setup. This keeps the line running even when feed quality shifts.

Factors Influencing the Performance of an Elution Circuit

How Do Temperature and Pressure Affect Gold Desorption?

Temperature and pressure shape the speed of the gold elution process. Higher heat speeds the release, yet too much heat can harm the carbon. Pressure changes how well the solution reaches every tiny pore.

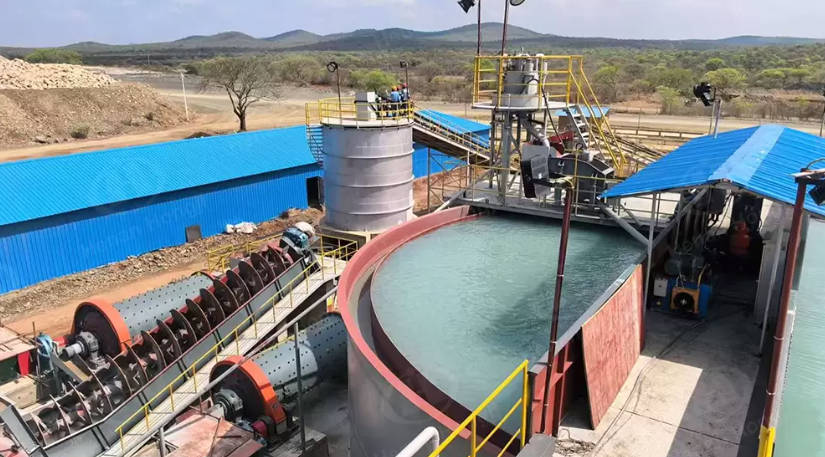

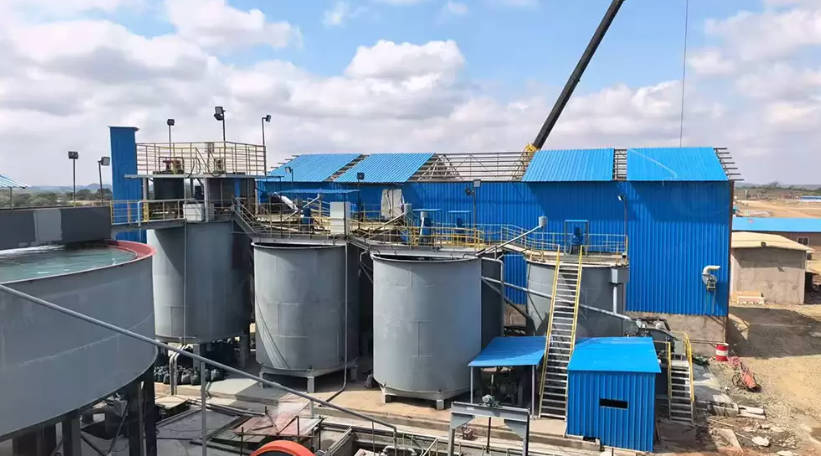

Experience at the 1000 t/d gold mine processing plant in Zimbabwe shows the value of steady heat. Small temperature variations resulted in noticeable improvements in recovery efficiency. The plant uses a ball mill, spiral classifier, leaching tank, thickener, and electrolytic cell to reach its daily target.

Chemical Composition and Carbon Quality Considerations

Reagent strength also affects results. Too much cyanide or caustic can create side reactions and wear the carbon faster. Gold-loaded carbon releases its gold quickly under the right heat and pressure. The remaining lean carbon returns to the circuit for reuse.

Carbon surface area and strength decide both how much gold it can hold and how fast it gives the gold back during each cycle.

Enhancing Process Efficiency Through Optimization Strategies

What Methods Improve Energy Utilization in Elution Circuits?

Energy use drops when plants recover heat from the outgoing solution. Insulated pipes reduce heat loss during transport. Heating steps are timed so power draw stays low without slowing the strip.

Hongji Mine Machinery fits heat exchangers that reuse warmth across many cycles. The design keeps running costs down while output stays high.

Advanced Automation and Data Integration Practices

Real-time analytics combined with past records help predict when parts need attention. SCADA platforms give one clear view of flow, dosing, and power trends. Early alerts catch wear before it stops production. This approach raises uptime and keeps crews safer.

Hongji Mine Machinery’s Contribution to Efficient Gold Elution Systems

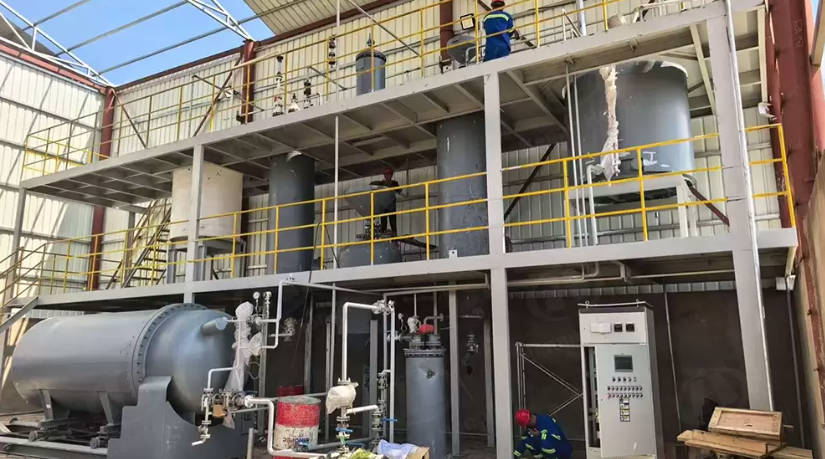

Features of Hongji Mine Machinery’s Elution Circuit for Gold Processing

Hongji Mine Machinery builds gold elution system design India packages for both small sites and large mills. The units keep a steady heat even in tough climates. Built-in temperature and flow controls guide each cycle from start to finish.

All materials resist corrosion from cyanide solutions. This choice extends service life under constant high-pressure use.

Advantages Offered by Hongji Mine Machinery’s Process Control Solutions

Automated controls cut the need for constant hands-on work. Modular layouts fit into existing CIP or CIL plants with little extra construction. Safety interlocks guard staff from contact with hot pressurized liquid.

Hongji Mine Machinery has delivered full systems to the Peru 150 t/d CIL processing plant. That site runs crushers, ball mills, agitation leaching tanks, activated carbon adsorption columns, and support equipment. The setup shows reliable recovery across different ore types.
