When Is a Copper Flotation Plant the Best Option for Concentrating Sulfide Copper Ores?

When Is Flotation Copper the Right Separation Route?

Selecting a copper flotation plant starts with mineralogy. Sulfide copper ores are evaluated for flotation when valuable minerals can be liberated by grinding and selectively collected through froth flotation. Flotation copper describes the separation target, while copper flotation describes the practical method. The decision depends on liberation, oxidation, gangue behavior, and orebody tests.

What Mineral Characteristics Favor Copper Flotation?

The best scenario for copper flotation is an ore where copper-bearing sulfides react well right after grinding. Plant workers look closely at mineral links and particle size. They also check liberation levels, fine slimes, and any competing sulfides. These details show if the roughing stage can catch the copper. It needs to do this without pulling in too much waste rock. Furthermore, the findings reveal if the cleaning steps will yield a solid concentrate. Teams must run tests in a lab or a pilot setup first. This basic testing finds the exact conditions for daily work.

Why Are Oxide and Mixed Copper Ores a Different Decision?

Oxide, sulfide, and mixed ores act in very different ways. This happens because oxidation alters the outer layers of the minerals. It also shifts how they react to chemical reagents. As a result, a standard copper flotation process designed for sulfides will likely need some careful adjustments. This is highly necessary once oxide minerals appear in large amounts. Industry experts often evaluate hard-to-treat oxidized ores using hydrometallurgy. Sometimes, they rely on a combined hydrometallurgy and flotation approach instead. Those specific methods sit outside the main scope of this text. For any ore that is mostly sulfide, the biggest engineering challenge is quite clear. We must figure out how to set up a truly stable beneficiation circuit.

How Does a Copper Flotation Process Concentrate Sulfide Ore?

A practical copper flotation plant links size reduction, classification, pulp conditioning, staged flotation and concentrate dewatering. Crushing prepares feed for grinding. A ball mill reduces size, while a spiral classifier returns coarse particles and passes classified pulp forward. Conditioning prepares pulp for reagent and air contact. Flotation separates copper-rich froth from tailings, and concentrate is thickened or filtered.

How Do Grinding and Classification Prepare Copper Minerals?

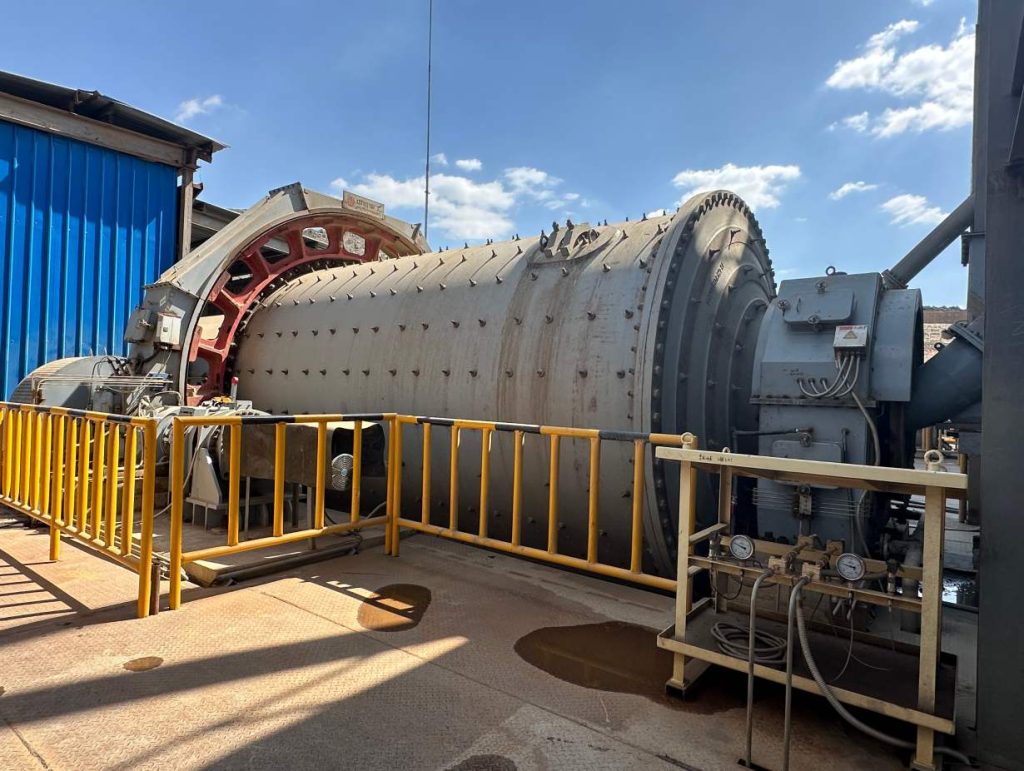

Grinding must expose copper minerals without creating unnecessary slimes. An energy-saving ball mill can be selected for non-ferrous mineral applications, with wet grid or overflow discharge considered according to material and flowsheet needs. A Spiral Classifier forms a closed circuit with the mill, grading ore sand and pulp so that coarse material returns for further grinding. In a copper flotation process, this closed loop helps stabilize the feed presented to conditioning and flotation, but the correct fineness must be confirmed by testwork.

What Do Roughing, Cleaning, and Scavenging Do in Copper Flotation?

Roughing recovers copper-bearing particles into an initial froth. Cleaning upgrades that product by rejecting gangue, while scavenging recovers valuable particles remaining in tailings. Together, these stages form a copper flotation circuit. Recycle, regrinding and cleaning stages depend on the balance between recovery and concentrate quality, so the circuit should be judged on measured tests.

Which Copper Flotation Circuit Design Fits Plant Objectives?

Circuit selection should begin with concentrate quality, recovery priorities, water, ore variability and maintenance access. A copper flotation circuit may use rougher, cleaner and scavenger duties with streams returned for regrinding. The arrangement should remain controllable when mineralogy changes.

How Do Recovery, Grade, and Regrinding Requirements Interact?

Higher recovery and higher grade can pull the circuit in different directions. Aggressive recovery may bring more gangue into rougher concentrate, while additional cleaning can reduce mass flow and lose some liberated copper. Regrinding middlings may improve liberation but adds residence time, power demand and maintenance points. For this reason, a copper flotation circuit should be compared through locked-cycle or pilot evidence where appropriate, with recycle behavior documented before equipment is finalized.

Why Does Concentrate Dewatering Matter After Flotation?

Dewatering turns dilute froth into a manageable copper concentrate stream. A thickener separates clarified water from settled solids by gravity. Vacuum filtration or a box filter press removes additional water and forms a filter cake. These operations complete the copper flotation plant route and support water recovery. These operations do not replace flotation, but protect the separation result.

What Operational Advantages and Limits Should Buyers Expect?

The main advantage is selective concentration before later metallurgical treatment. Flotation can be evaluated for fine-grained or mineralogically complex sulfide ores, while staged duties allow operators to adjust recovery and concentrate quality. The method remains sensitive to liberation, pulp density, reagent dosage, water chemistry, air dispersion and froth stability.

Where Can a Copper Flotation Plant Add Value?

Flotation can reduce the mass moving downstream by enriching copper minerals in a smaller copper concentrate stream, potentially simplifying storage and transport. Separate roughing, cleaning and scavenging controls can also help diagnose copper losses. These advantages require representative-sample verification, not fixed grade or recovery guarantees.

Which Variables Can Reduce Copper Flotation Stability?

Changes in oxidation, mineral association, particle size, slimes and reagent demand can shift froth behavior. Inadequate conditioning may leave copper uncollected; excessive dosage can increase gangue or reduce selectivity. Poor recycle control can build circulating loads. A robust copper flotation process needs sampling, controlled dosing, maintenance access and test-led procedures. Buyers should ask how variability will be managed.

How Can Hongji Mine Machinery Support a Copper Flotation Plant Project?

At Hongji Mine Machinery, we treat a copper flotation plant as part of an integrated Mineral Processing and beneficiation project. Our equipment scope can include an Energy-Saving Ball Mill, Spiral Classifier, BF Flotation Machine, SF/XJ Flotation Machine, Dosing Machine, Thickener, Disc Vacuum Filter and Fully Automatic Hydraulic Box Filter Press. We provide beneficiation testing, process design and project design so the selected equipment reflects the ore and the owner's operating priorities.

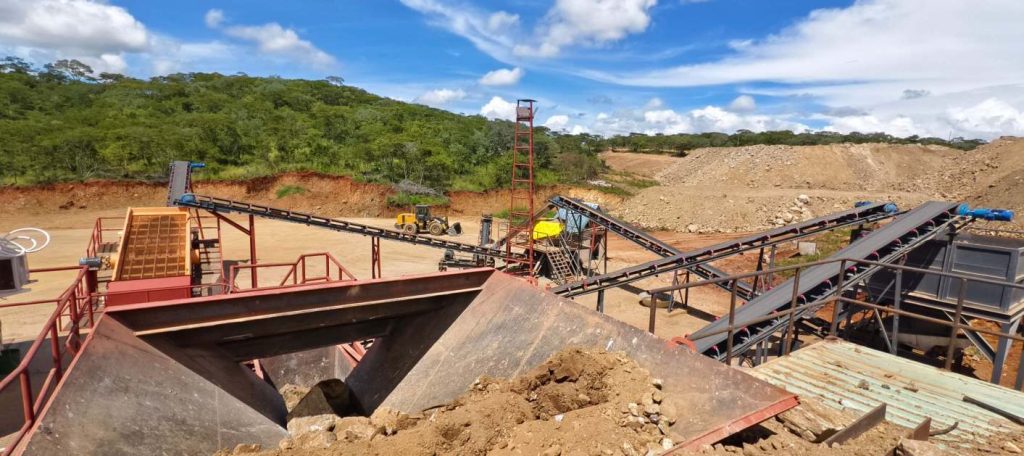

One relevant reference is our Zambia 2000 t/d Copper Mineral Processing Plant case. This project processes copper ore with a specific feed grade, and the grinding stage is designed according to the ore characteristics and liberation requirements to achieve suitable mineral liberation. The production line is configured with crushers, ball mills, spiral classifiers, flotation equipment, flotation tanks and downstream concentrate handling equipment.

Based on the ore properties and process requirements, the plant adopts a connected beneficiation production line integrating crushing, grinding, classification and flotation rather than using standalone equipment. The case demonstrates how equipment selection and process connection are determined according to ore characteristics and production needs, while the actual operating results should be evaluated through site conditions and test data. It does not make any guarantees for final recovery rate or concentrate grade.

Which Hongji Mine Machinery Products Fit the Copper Flotation Front End?

We use our energy-saving ball mill and spiral classifier to establish the grinding-classification interface. Our BF flotation machine is suited to roughing and scavenging duties in large and medium-sized flotation plants, while SF/XJ equipment can be considered for roughing, cleaning or reverse flotation functions. Our dosing machine supports controlled reagent delivery, and our thickener, disc vacuum filter and box filter press support concentrate dewatering. This portfolio lets us map the copper flotation process to a complete beneficiation line instead of treating the flotation tank as an isolated purchase.

To show how these products work together in a practical copper flotation flowsheet, the following table summarizes the main process stages, key equipment and their functions:

Process Stage	Key Equipment	Equipment Function
Crushing and feed preparation	Crusher	Reduces raw ore size and prepares suitable feed for the grinding circuit
Grinding and classification	Energy-saving Ball Mill + Spiral Classifier	Liberates copper minerals through grinding and controls particle size by forming a closed grinding-classification circuit
Reagent preparation and pulp conditioning	Dosing Machine	Provides controlled reagent addition to improve flotation conditions
Roughing and scavenging flotation	BF Flotation Machine	Recovers copper-bearing minerals from pulp and improves overall recovery performance through staged flotation
Roughing, cleaning or reverse flotation	SF/XJ Flotation Machine	Supports different flotation duties according to flowsheet requirements and ore characteristics
Concentrate thickening and filtration	Thickener + Disc Vacuum Filter + Box Filter Press	Removes water from concentrate and prepares the final concentrate product for handling and transportation

This integrated equipment configuration allows the copper flotation process to be designed as a complete beneficiation system, with each unit operation supporting the next stage rather than functioning as an independent machine purchase.

How Do We Scope a Copper Flotation Circuit for Different Ores?

We begin with ore mineralogy, oxidation state, liberation data, samples, water conditions, target concentrate specifications and utilities for the Mineral Processing design. Our beneficiation testing informs grinding, reagent, flotation-stage and dewatering decisions. For buyers comparing a copper flotation circuit, we document feed assumptions, recycle points, sampling duties and maintenance interfaces.
