Smelting can produce copper-rich metal, but the result is not yet clean or consistent enough for demanding electrical uses. A copper electrolysis plant adds the controlled purification stage that smelting cannot provide. Direct current moves copper through an electrolyte and deposits the metal onto cathode sheets while many unwanted constituents stay outside the finished deposit. The same principle supports electrowinning, although that route begins with purified leach solution rather than cast copper anodes.
Although smelting produces copper-rich metal, it cannot achieve the purity level required for advanced electrical applications. Electrolytic refining provides the additional purification step needed to remove residual impurities and produce high-quality cathode copper. The key differences between these two stages are summarized below.
| Aspect | Smelting | Electrolytic Refining |
| Main Purpose | Produce copper-rich metal from copper concentrate | Remove remaining impurities and produce high-purity cathode copper |
| Feed Material | Copper concentrate from mineral processing | Impure copper anodes produced after smelting |
| Process Type | High-temperature metallurgical process | Electrochemical purification using direct current |
| Copper Product | Anode copper with about 99% purity | Cathode copper with up to 99.99% purity |
| Impurity Removal | Removes most unwanted materials but leaves trace impurities | Separates impurities into electrolyte or residue while copper deposits on cathodes |
| Key Control Factors | Ore quality, concentrate grade, and smelting conditions | Current density, electrolyte condition, electrode spacing, and deposition time |
| Final Application | Requires further purification before electrical use | Suitable for demanding electrical applications due to high conductivity |
In electrolytic refining, impure copper anodes and stainless-steel cathode blanks are immersed in an aqueous copper sulfate and sulfuric acid electrolyte. A copper electrolysis plant applies direct current, causing copper to dissolve from the anode and travel through the solution as copper ions. Copper then plates onto the cathode surface. The controlled transfer raises purity without remelting the entire copper inventory, while electrolyte circulation supports stable chemistry throughout the tankhouse.
Cathode quality can be managed through current distribution, solution condition, electrode spacing, deposition time, and surface inspection. These controls produce sheets with a defined composition and physical form that can be washed, stripped, sampled, bundled, and shipped. Molten copper leaving fire refining still contains residual elements and offers fewer opportunities for selective separation.
Sulfide ore normally passes through grinding and flotation before smelting. The resulting copper concentrate contains much more copper than the mined ore, but gangue minerals, sulfur-bearing material, and trace elements remain. Smelting and converting remove a large share of those constituents and can produce copper-rich metal of about 99% purity. That level sounds high, yet small impurity concentrations can still reduce conductivity or disrupt later fabrication. The metal is therefore cast into anodes for another purification step.
The anode becomes the copper source rather than the final product. Within a copper electrolysis plant, copper dissolves under controlled electrical conditions and deposits onto the cathode. Less suitable constituents either remain in the electrolyte or form residue instead of joining the cathode deposit. Electrolyte analysis, controlled current density, and scheduled residue removal keep the separation stable. This selective transfer can produce cathode copper at 99.99% purity when the feed, chemistry, and operating conditions are properly managed.

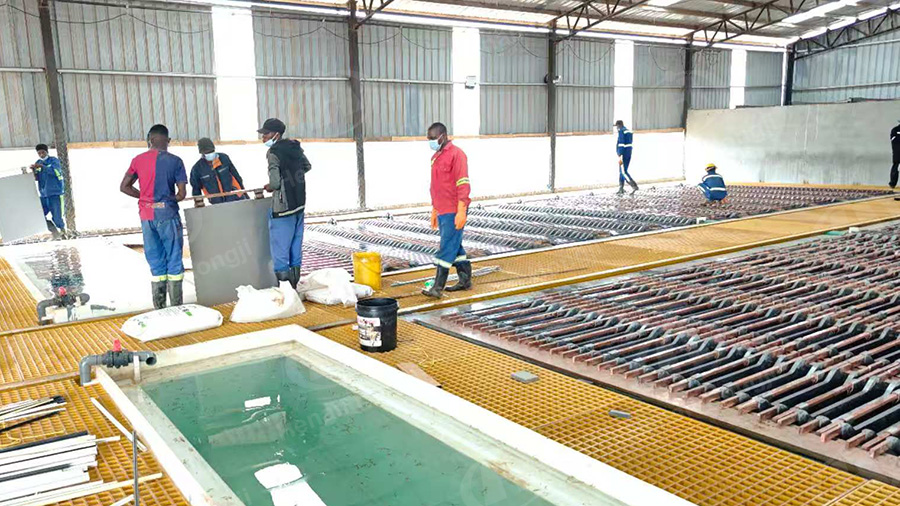

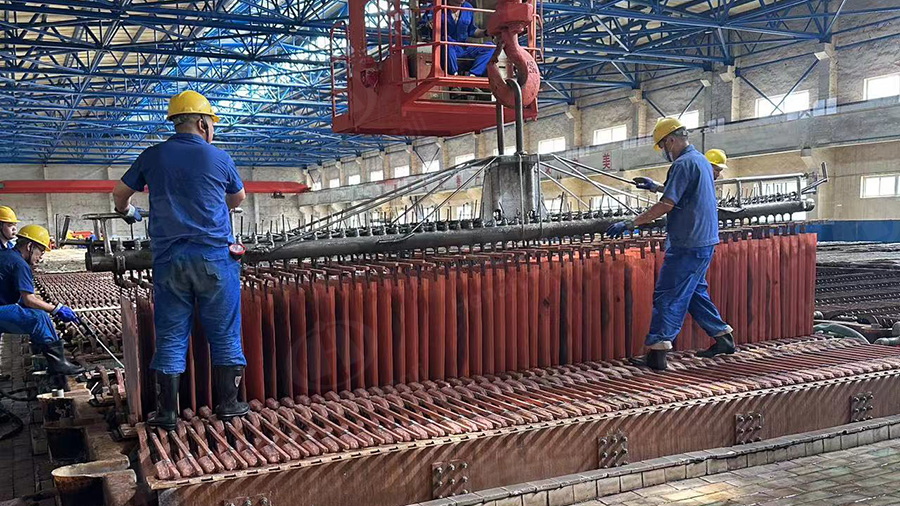

Each cell forms part of a larger electrical and hydraulic circuit. Rectifiers supply direct current, busbars distribute that current, and solution systems circulate filtered electrolyte between cells. Inside the copper electrolysis plant, the anode gradually loses copper while a coherent copper layer grows on the cathode blank. After the planned deposition period, handling equipment removes the cathode, washes the surface, and strips the copper sheet from the reusable blank. Fresh blanks then return to service.
Good cathode production depends on balance rather than one isolated setting. Operators monitor copper and acid concentration, electrolyte temperature, flow, impurity buildup, current distribution, electrode alignment, short circuits, and deposit appearance. Poor alignment can create uneven growth, while unstable chemistry can produce rough or contaminated sheets. Ventilation and acid-mist capture also protect the working environment.
A copper EW circuit and an electrorefinery both deposit copper onto cathodes, but the feed is different. Electrolytic refining starts with cast anodes produced after smelting sulfide concentrate. Electrowinning starts with copper already dissolved in a purified electrolyte, commonly after leaching and solvent extraction. A copper electrolysis plant must therefore be designed around the selected feed route: anode handling and anode residue for refining, or solution purification and cathode recovery for EW.

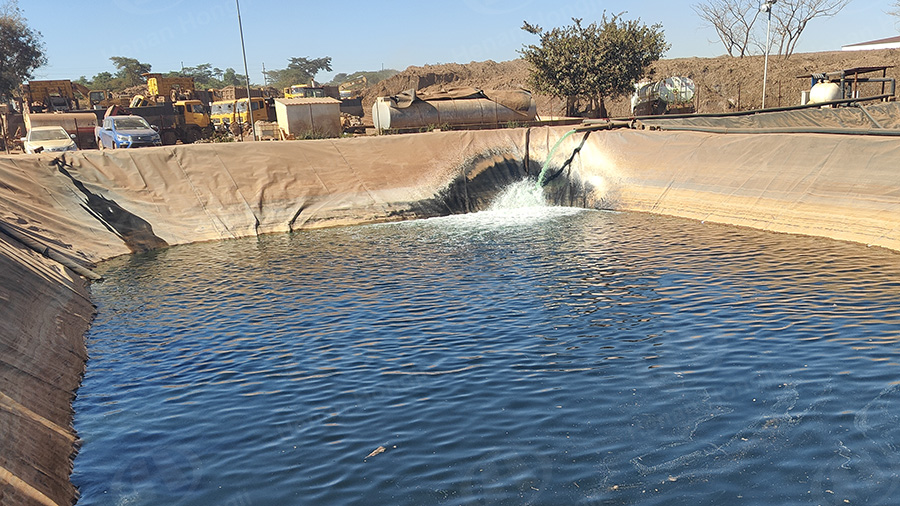

Oxide ore and some low-grade material can respond well to acid leaching. The copper-bearing pregnant leach solution moves to solvent extraction, where copper is selectively transferred into a cleaner, more concentrated electrolyte. Electrowinning then deposits SX-EW copper directly onto cathode blanks. This route can bypass concentrate smelting, but mineralogy, acid consumption, permeability, solution impurities, water balance, and power supply still require testing. The presence of copper in ore alone does not prove that an SX-EW route will be economical.

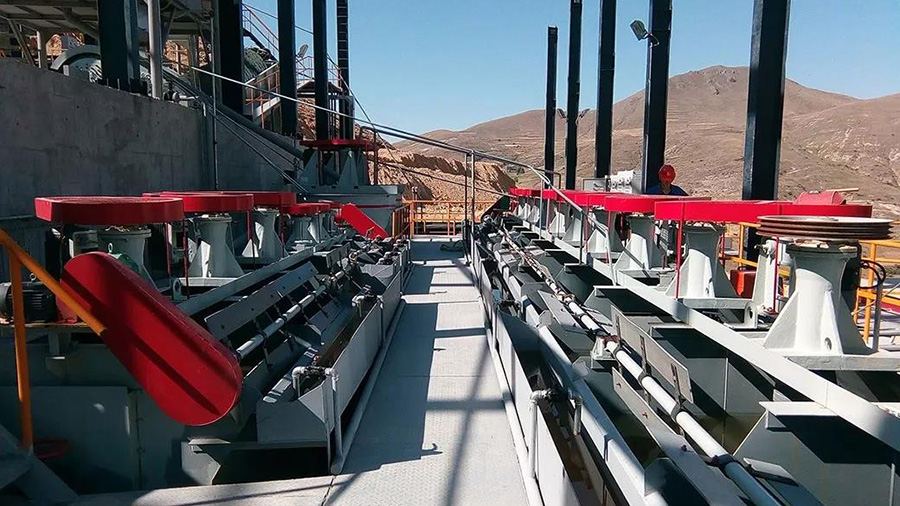

During copper beneficiation, crushing and grinding liberate copper minerals before separation. Flotation machines recover valuable sulfide minerals into a copper concentrate, while thickeners and filters remove water before transport or smelting. A controlled copper beneficiation process should deliver consistent particle liberation, concentrate grade, moisture, recovery, and impurity behavior. Accurate assays for copper in concentrate help the smelter and refinery plan blending, anode quality, electrolyte control, and residue management.
A copper beneficiation plant should begin with mineralogical and metallurgical testing. Sulfide-dominant ore commonly follows grinding, flotation, concentrate dewatering, smelting, and electrolytic refining. Oxide-dominant or difficult mixed ore may favor leaching followed by solvent extraction and electrowinning. The selected copper electrolysis plant must match the material produced upstream, whether that material is a cast anode or a purified copper-bearing solution.
To address the challenges of inconsistent ore quality and unstable feed conditions in the upstream beneficiation stage, Hongji Mine Machinery organizes upstream equipment around ore behavior and the selected downstream route. Our Jaw Crusher and Energy-Saving Ball Mill support size reduction and mineral liberation. The BF Flotation Machine can serve roughing or scavenging duties in suitable copper circuits. Thickeners, Disc Vacuum Filters, and Fully Automatic Hydraulic Box Filter Presses support solid-liquid separation and concentrate dewatering. These products prepare ore or concentrate; none should be confused with the electrolytic cell that produces cathode copper.
Hongji Mine Machinery's verified copper electrowinning plant solution brings solvent-extraction integration, electrowinning equipment, automated handling, acid-mist capture, and a compact pre-engineered layout into one cathode-production concept. Our solution is relevant when testing supports a copper EW or SX-EW copper route. Final cell arrangement, electrolyte management, current capacity, ventilation, materials of construction, and automation scope still require project-specific engineering. A qualified proposal should therefore begin with ore data, solution chemistry, target cathode specification, utilities, site conditions, and planned production scale.
A: The main purpose is to use controlled electrochemical deposition to produce high-purity cathode copper. An electrorefinery transfers copper from cast anodes, while an electrowinning circuit deposits copper from purified leach solution. Both routes separate cathode production from the less selective thermal stages used earlier in the flowsheet.
A: No. Copper EW starts with copper dissolved in a purified electrolyte, often after leaching and solvent extraction. Electrolytic refining starts with impure copper anodes produced after smelting. Both use electricity to form cathodes, but feed preparation, impurity control, equipment layout, and residue handling differ.
A: Yes, but not usually in one direct step. A sulfide-route plant produces copper concentrate for smelting and anode casting before electrorefining. A leach-route plant produces copper-bearing solution that must be purified before electrowinning. The upstream flowsheet and the cathode-production route must be designed as one connected system.
