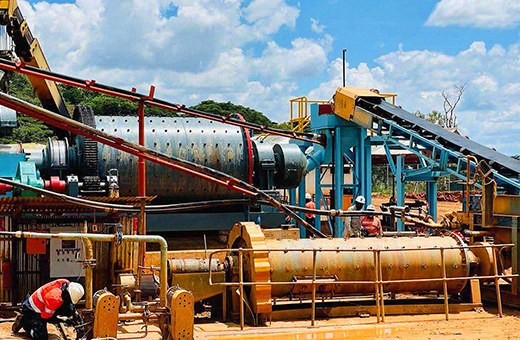

Smelters typically do not receive raw run-of-mine copper ore as their final feed. Useful copper minerals are usually mixed with waste rock and other low-value substances. A copper concentrator process improves the feed by freeing the copper minerals. It then separates them and produces a dried copper concentrate with a much more steady makeup.
A concentrator lowers the amount of useless rock sent to the smelter facility. After the copper minerals are freed, the system gathers them into a smaller bulk called copper concentrate. This reduces waste handling and improves furnace capacity utilization. The main goal is a good balance between concentrate grade and copper recovery. It is not just about getting the highest test score at any expense.
Run-of-mine ore serves as the raw mine feed. Meanwhile, copper in concentrate indicates the copper amount in the sorted product. A larger ratio usually means fewer unwanted minerals move along with each unit of copper. Water content, harmful elements, mineral shapes, and grain size are still important. Therefore, grade is merely one piece of the total requirement.
The copper beneficiation process starts by breaking down raw mine chunks to a size that later machines can easily process. First and second crushing steps build a steady feed. They also break apart some mineral bonds. Staged crushing reduces ore progressively and helps limit excessive fines before grinding.
In industrial crushing circuits, feed and product sizes can vary from hundreds of millimeters at primary crushing to tens of millimeters after secondary or fine crushing; Hongji Mine Machinery equipment, for example, provides adjustable discharge settings down to approximately 3–64 mm on its cone crusher range. The final crushing size should be confirmed through ore testing according to hardness, liberation characteristics, plant capacity, and the feed-size requirements of the grinding circuit.

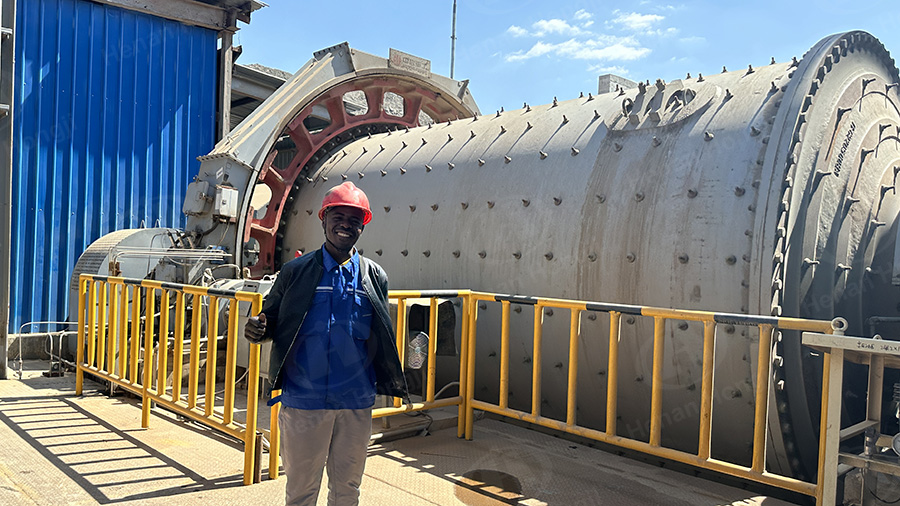

Grinding offers smaller breaking when copper minerals remain stuck inside the main rock. A ball mill uses hitting and rubbing in a wet mix. At the same time, a classifier or hydrocyclone sorts out particles based on water movement. Coarse particles go back for more grinding. Properly sized particles move forward to the flotation stage. A closed-loop setup stops poor grinding and avoids too much mud from grinding for too long.

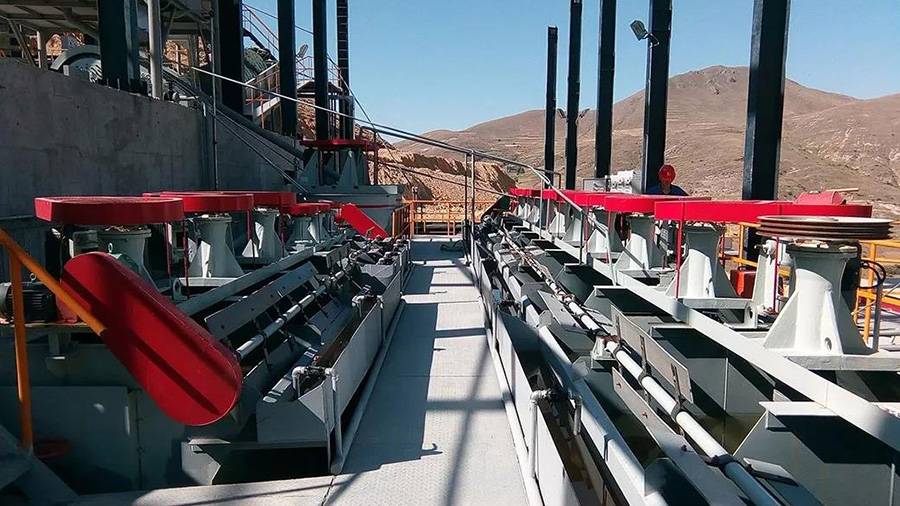

During flotation, special chemicals prepare the wet mix. This lets chosen copper-bearing particles stick to tiny air bubbles. These bubbles float up into a foam. This foam is then taken off as a rougher product. Scavenger tanks process the rougher waste. They catch copper left behind during the first try. Air flow, mix thickness, passing time, and chemical amounts must be set right for the rock type.
Cleaner flotation removes trapped waste from the rougher output. A few cleaner steps can boost sorting when copper minerals are freed. Sometimes, extra grinding is added. Too little chemical might drop the catch rate. On the other hand, too much or badly timed chemical can float gangue minerals. Mixer spinning, air spread, and mix flow affect touching time. They also change the final concentrate quality.
Flotation output is a very wet mix. A thickener lets solid particles sink. It then pours off clear water before the filter stage. A disc vacuum filter or a hydraulic box filter press takes out more water. This forms a solid filter cake. Good drying lowers shipping water weight and helps with moving the product and keeping water levels right.
Workers must check copper grade, catch rate, water amount, size spread, and harmful elements together. Taking samples must show the feed, final product, intermediate streams, and waste. Sampling should not be based on just one single batch. Beneficiation testing connects these checks to the plan and guides machine sizing, chemical choices, and running limits.
Sulphide rocks are often checked for crushing, grinding, sorting, and flotation. This happens because useful minerals can usually be gathered into a concentrate. Mixed rocks need tests. Sulphide and rusted copper react in different ways. Hard rusted rocks might need liquid chemical steps or a mixed plan. Mineral types, rusting speed, acid use, water needs, and product rules must guide the final choice.
People looking for copper EW or SX-EW copper are mostly seeking an electric sorting path. This is often called SX-EW copper. Acid melts the copper. Then, liquid sorting cleans the solution. Finally, electric current places copper on a metal plate. This is not the same as making flotation concentrate for a smelter. The pick relies on rock type, local setup, water, chemicals, and the wanted end item.
The table below summarizes the key differences between flotation and SX-EW copper routes for easier flowsheet comparison.
| Comparison Factor | Flotation Route | SX-EW Route |
| Typical Ore Type | Mainly sulphide copper ores | Mainly oxidized or acid-leachable copper ores |
| Main Processing Route | Crushing, grinding, classification, and flotation | Acid leaching, solvent extraction, and electrowinning |
| Separation Approach | Copper-bearing minerals are recovered into a concentrate | Copper is dissolved into solution, purified, and recovered electrically |
| Main Product | Copper concentrate for downstream smelting | Electrowon copper deposited on metal plates |
| Key Selection Factors | Mineral type, liberation behavior, water requirements, and concentrate specifications | Degree of oxidation, acid consumption, water requirements, and final product requirements |
| Mixed Ore Consideration | Metallurgical testing is required to confirm flotation response | Metallurgical testing is required to confirm leaching response |
Begin with true samples. Write down mineral makeup, rust level, hardness, freeing size, dirt amount, starting grade, and changes. State the processing speed, concentrate grade, catch rate, water limit, and waste rules. A copper beneficiation plant must be chosen based on these facts. The selection should not depend on a liked brand name. Testing can match grinding size, flotation steps, chemical plans, thickening, and filtering.
A well-run loop sends the right flows to the exact right spot. Coarse particles go to grinding. Scavenger stuff goes back for catching. Picked intermediate particles move to cleaning or extra grinding. Thickness, flow, and sample tests help spot shifts before they hit the final concentrate. Crushers, screens, mills, sorters, flotation tanks, thickeners, and filters must match test facts. They also need a clear running plan.
At Hongji Mine Machinery, we plan mineral-sorting paths based on the rock and the buyer's desired item. Our Jaw Crusher, Vibrating Feeder, Vibrating Screen, Ball Mill, Rod Mill, Spiral Classifier, BF Flotation Machine, Thickener, Disc Vacuum Filter, and Hydraulic Box Filter Press can be tested as pieces of a copper concentrator process. We pair machines and paths after real beneficiation tests. We do not offer just one set of rules for every rock type.

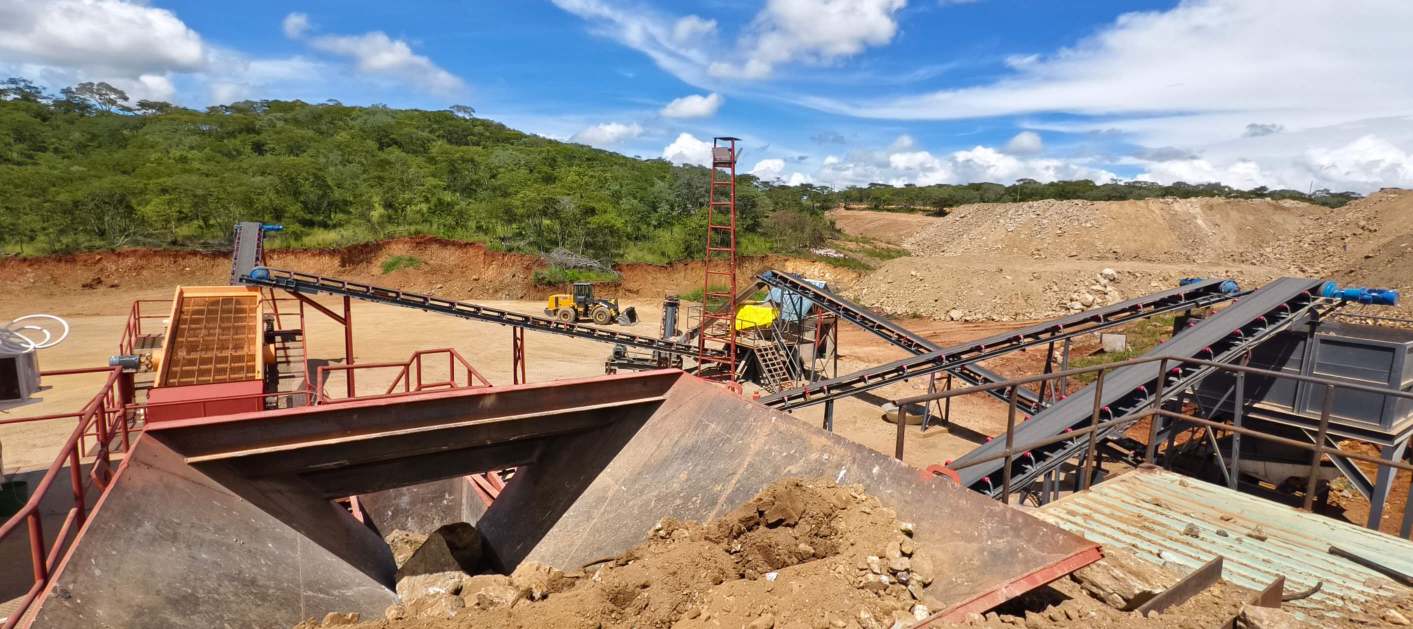

Our Zambia 2,000 t/d Copper Mineral Processing Plant used a holding bin, crushing and screening, grinding and sorting, flotation, and concentrate drying. The shared report notes copper rock as the starting material. The first copper grade was 7.0%. The noted copper concentrate grade reached 26.5%. The product making rate was 25.1%, and copper catch was 95.0%. These numbers detail the specific job. They are not a broad promise. They prove why sampling, path planning, and drying must be looked at all together.
A: A copper concentrator process frees copper-bearing minerals. It sorts them away from waste rock. The process takes out water from the caught product. This makes a more packed and easy-to-manage feed for smelting or another later copper step.
A: Rock makeup, freeing size, grinding care, flotation sorting, chemical amounts, cleaner work, trapped waste, sampling, and final drying all change the grade. The best running spot balances grade, catch rate, water amount, and bad elements.
A: No. Flotation usually makes a copper concentrate that can go to a smelter. SX-EW copper is made through acid melting, liquid sorting, and electric catching. Thus, the right path relies on the rock and the needed final product.
