Step-by-Step Gold Elution Process: How Gold Recovery Is Achieved

What Is the Gold Elution Process and Where Does It Fit in Gold Recovery?

How does the gold elution process work after adsorption?

The gold elution process starts when activated carbon captures the dissolved gold. This step takes place inside a carbon-based recovery plant. Gold CIP serves as a practical method for gold extraction by cyanidation. It relies on a specific carbon adsorption process. This process targets monovalent gold cyanide [KAu (CN)2]. This action occurs right after the cyanide leaching of gold-bearing materials. The adsorption phase eventually finishes. Next, the loaded carbon moves directly into the elution circuit. In this area, a hot chemical liquid strips the adsorbed gold away from the carbon surface.

This stage is central to gold elution because the gold is still not a saleable product while it remains attached to carbon. In a closed system, gold-loaded carbon can be rapidly desorbed and electrolyzed into gold mud and lean carbon under high-temperature and high-pressure conditions. The stripped solution, often called pregnant eluate, then moves to electrowinning and later smelting.

Which stages come before and after elution in a gold plant?

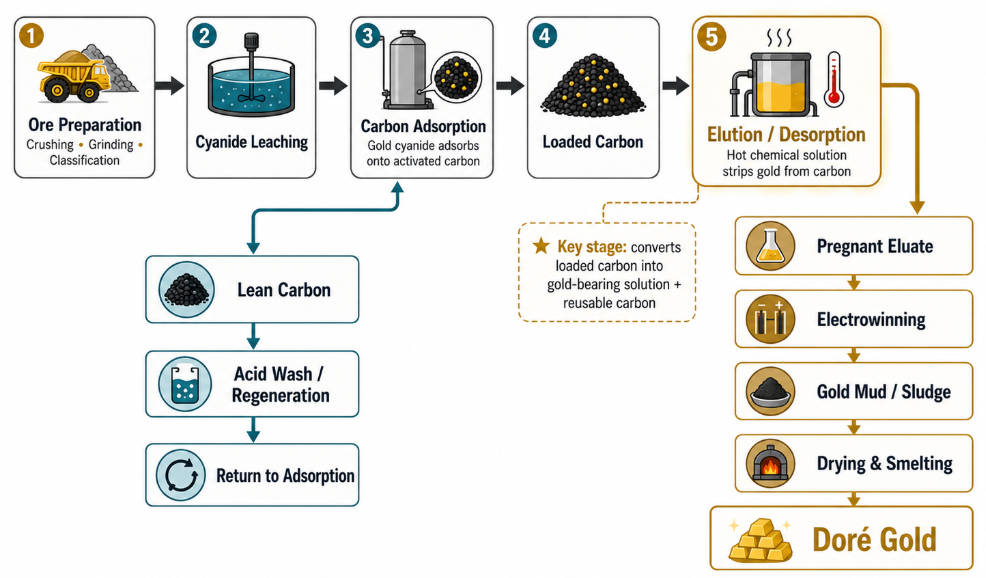

For general readers asking what elution in gold processing is, it helps to view it as one link in a full chain. Before elution in gold processing, ore usually passes through crushing, grinding, classification, leaching, and adsorption. The gold CIP process includes seven operation stages: preparation of leaching pulp, cyanide leaching, carbon adsorption, gold-loaded carbon desorption, electrolysis to obtain muddy gold, de-gold carbon recycling, and treatment of leaching pulp.

The preparation side is also important. Grind the gold-containing material to a particle size suitable for cyanidation， generally less than 28 mesh. After adsorption, the downstream path typically includes the gold elution circuit, electrowinning, sludge or muddy gold collection, drying, and smelting into doré. This makes elution the transition point between chemical extraction and final metal production.

Why is elution necessary for recovering gold from activated carbon?

Adsorption is efficient because it concentrates dissolved gold from slurry onto activated carbon, but recovery remains incomplete until that gold is removed. The cyanide pulp enters the stirring adsorption tank (carbon slurry tank). Add carbon to the leaching tank, and the carbon adsorbs the gold in the pulp to become gold-loaded carbon.

Elution is therefore necessary to turn loaded carbon into two useful outputs: gold-bearing solution and reusable lean carbon. The desorbed lean carbon is first soaked in 1.5% ~ 2.0% nitric acid solution for 24 hours to remove calcium and then washed with clean water until neutral. Return to the adsorption cycle. Efficient stripping improves plant economics because less gold remains locked on carbon, and the adsorption circuit can continue operating without interruption.

Which Conditions Control the Gold Elution Process?

What temperature, pressure, and chemistry affect elution efficiency?

Temperature is one of the strongest drivers of gold elution performance because higher heat speeds desorption. In many systems, pressure is used to maintain the required thermal conditions safely inside the elution column gold setup. In a closed system, gold-loaded carbon can be rapidly desorbed and electrolyzed into gold mud and lean carbon under high-temperature and high-pressure conditions.

Chemistry matters just as much. Four methods are currently available for Desorption:

• Hot caustic sodium cyanide solution desorption.
• Low concentration caustic sodium cyanide solution plus alcohol desorption.
• Desorption with acidic sodium cyanide solution under heating and pressure conditions.
• Desorption of high-concentration caustic sodium cyanide solution.

Different ores and plant designs call for different reagent strengths, cycle times, and operating windows.

How do carbon quality and loading level change the results?

Activated carbon quality affects both adsorption and later stripping. Hardness, pore structure, contamination level, and attrition resistance all influence how well the gold elution process performs. Heavily loaded carbon may require a longer stripping cycle, while fouled carbon may never elute cleanly.

Plant operators also watch for scaling, organic fouling, and fine carbon losses. These issues reduce contact efficiency in the gold elution column design and can leave residual gold behind. Screening, washing, acid treatment, and carbon maintenance help keep the elution circuit stable and predictable.

What operating issues can reduce recovery during elution?

Common operating problems include poor temperature control, weak reagent strength, channeling, and insufficient contact time. As a reference, atmospheric Zadra circuits typically operate at about 95–100°C with approximately 1% NaOH and 0.2% NaCN, while pressurized Zadra or AARL systems may operate at 110–140°C with shorter cycles.

Contact time varies by process: atmospheric Zadra elution may require up to 72 hours, whereas pressurized systems often take about 10–12 hours. Actual limits should be based on plant design, solution analysis, and barren-carbon gold assays rather than fixed values alone.

These operating issues directly lower recovery because some gold stays on the carbon instead of entering the pregnant eluate. Routine monitoring of flow, temperature, pressure, reagent strength, and barren carbon assays is essential for consistent output from a gold elution plant.

How Is Gold Recovered Step by Step After Elution Begins?

What happens during carbon preparation and elution column feeding?

Loaded carbon is first transferred from adsorption tanks or carbon columns into the elution system. Before stripping, it is usually washed to remove pulp solids, scale, and other impurities that could interfere with the elution circuit. In some plants, acid washing is added to dissolve mineral deposits.

The cleaned carbon is then charged into the elution column and prepared for circulation. Good feeding practice supports even solution distribution and better stripping efficiency across the full carbon bed.

How is gold stripped from carbon in the elution circuit?

Step by step, a hot chemical solution is circulated through the loaded carbon. Heat and chemistry weaken the bond between the gold cyanide complex and the activated carbon surface. As desorption proceeds, the dissolved gold reports into the circulating solution, creating pregnant eluate.

What comes after elution in electrowinning and smelting?

After elution, the gold-bearing solution enters electrowinning cells where dissolved metal is deposited onto cathodes or steel wool. In a closed system, gold-loaded carbon can be rapidly desorbed and electrolyzed into muddy gold and lean carbon under high temperature and high-pressure conditions. The collected sludge or muddy gold is then removed, dried, and prepared for smelting.

It can smelt the obtained muddy gold into gold ingots after simple pickling and impurity removal. This is the final conversion from solution chemistry to solid metal output.

Why Do Plant Design and Equipment Selection Matter in the Gold Elution Process?

How do elution columns, heaters, and electrowinning units affect performance?

Core equipment determines how reliably the gold elution process runs. The elution column gold configuration controls solution contact with carbon, while heaters maintain stripping temperature and electrowinning units recover metal from eluate. A poor column layout can cause channeling, while unstable heating can slow desorption.

That is why gold elution column design is closely tied to plant capacity, operating continuity, and recovery consistency. Matching the column, heater, pumps, tanks, and electrowinning section to the ore and throughput is essential in any gold elution plant.

What should general buyers look for in a gold elution process solution?

Buyers should consider ore adaptability, processing capacity, automation level, energy use, maintenance access, and after-sales support. Integrated design matters because upstream leaching and adsorption strongly influence downstream gold elution results.

Technical guidance also matters during commissioning and optimization. A complete solution is not just a single machine; it is a coordinated process line from size reduction and leaching through adsorption, elution, and recovery.

How does Hongji Mine Machinery present gold elution process?

At Hongji Mine Machinery, we present our gold elution process as part of a broader mineral processing solution rather than as an isolated unit. Our expertise as a professional crusher, dryer, and rotary kiln manufacturer, together with our free production-line design service, reflects how we approach complete plant coordination. Our product range also shows wide system coverage, including Gold Mining Equipment and beneficiation-related layouts such as Gold ore processing plant.

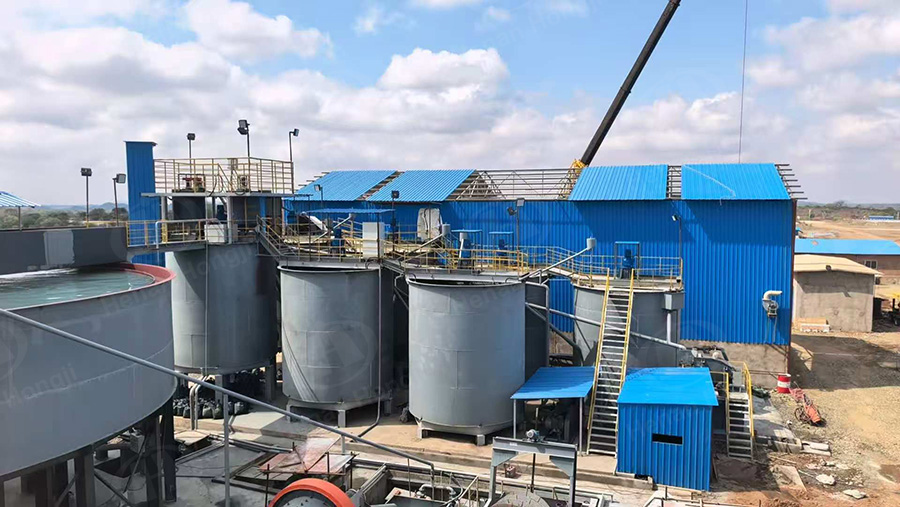

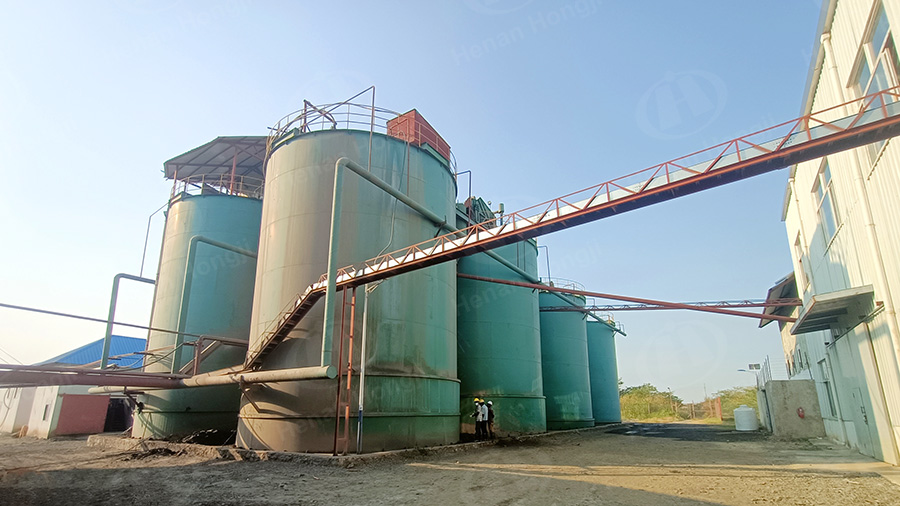

For practical reference, our project cases include gold operations with complete leaching and recovery sections. The 1000 t/d gold ore processing plant in Zimbabwe has the following main equipment: ball mill, spiral classifier, leaching tank, thickener and electrolytic cell. Another example is the 150 t/d Gold CIL (Carbon in Leach) processing plant in Peru, whose main equipment includes crusher, ball mill, agitation leaching tank, activated carbon adsorption columns and auxiliary equipment.
