What Common Operational Risks Affect Gold Recovery in a CIL Gold Plant?

A CIL gold plant can lose recovery even when every major machine is running. The cause is usually not one dramatic failure, but a chain of smaller operating deviations: inconsistent feed, weak cyanide control, poor oxygen transfer, carbon losses, short-circuiting, or delayed maintenance. Because leaching and adsorption occur together, one unstable variable can affect several stages before operators see the loss in the final residue assay.

The practical response is to manage the circuit as a connected system. Feed mineralogy, grind size, slurry density, pH, dissolved oxygen, cyanide concentration, residence time, carbon activity, and screen condition must be trended together. A stable gold CIL process depends on disciplined sampling and timely correction, not on a single set point.

Which Feed Conditions Create the First Recovery Risk?

Variable mineralogy and unrepresentative testwork

Ore that changes from free-milling material to clay-rich, sulfide-bearing, or preg-robbing zones can respond very differently under the same operating recipe. A design based on one composite sample may therefore misstate reagent demand and achievable recovery. Before changing plant settings, operators should compare head grade, mineralogy, diagnostic leach results, and residue trends by ore domain.

Grind size, clay, and slurry density

Coarse gold may remain locked when grinding is insufficient, while excessive fines can raise viscosity and restrict oxygen transfer. Clay can also interfere with screening and carbon movement. The grinding circuit and thickener should deliver a controlled feed rather than a nominal average. In a CIL processing plant, regular particle-size checks and density measurements are early warnings that the leach circuit is receiving different material from the design basis.

How Do Chemistry and Mass Transfer Reduce Leach Performance?

pH, cyanide, and dissolved oxygen drift

Cyanidation needs enough free cyanide and dissolved oxygen under an alkaline pH that supports both extraction and safe operation. Low oxygen slows dissolution; uncontrolled cyanide addition raises cost and may not solve a mass-transfer problem. Poor pH control can also create a serious safety hazard. Operators should use calibrated instruments, verify automatic readings with manual checks, and examine trends by tank instead of relying only on one discharge sample.

Inadequate mixing and residence time

Solids suspension, air dispersion, and slurry movement determine whether reagents reach exposed gold surfaces. Worn impellers, blocked air lines, sanding, or uneven tank levels can produce dead zones and short-circuiting. These faults reduce effective residence time even when the calculated tank volume looks adequate. A cil gold processing plant should track agitator load, airflow, tank levels, and tracer-test results alongside extraction profiles.

Where Can Activated Carbon Management Fail?

Low carbon activity and poor stage inventory

Carbon loses adsorption capacity through fouling, scaling, abrasion, or incomplete regeneration. Recovery can fall when the active carbon concentration is too low in the stages that need adsorption most. The operating team should measure carbon activity, inventory by tank, loading, and transfer frequency. Carbon movement must support the intended counter-current profile rather than follow a fixed schedule after feed conditions change.

Screen damage and carbon loss

Interstage screens protect the carbon inventory while allowing slurry to pass. Damaged panels, blocked apertures, incorrect spray-water pressure, or excessive carbon attrition can send gold-loaded carbon to tailings. Daily screen inspection and carbon-fines accounting are therefore metallurgical controls, not merely maintenance tasks. In CIL/CIP gold processing, unexplained inventory loss should trigger a physical inspection before operators adjust chemistry.

Why Do Mechanical and Maintenance Risks Become Metallurgical Risks?

Tank condition, instruments, and utilities

Corrosion, lining damage, agitator wear, pump instability, or unreliable air and power supplies change the conditions under which leaching occurs. A planned gold CIL tank refurbishment should examine shell integrity, lining, baffles, agitators, air distribution, access, and instrumentation as one scope. Replacing only visible worn parts can leave the original hydraulic or oxygen-transfer problem unresolved.

Sampling and control discipline

Poor samples can make a stable circuit look unstable, or hide a genuine loss. Sampling points should be accessible, representative, and used at consistent intervals. Laboratories need agreed procedures for head, solution, carbon, and residue assays. A useful operating dashboard links those results to feed tonnage, density, pH, cyanide, oxygen, carbon inventory, and downtime so corrective action follows evidence.

How Should Operators Compare CIL and CIP Risk Profiles?

The operational difference between CIL and CIP

The difference between CIL and CIP is the timing of adsorption. CIL adds activated carbon while leaching is still occurring, whereas CIP generally separates leaching from the later adsorption stages. This means a CIL upset can affect dissolution and adsorption at the same time. A CIP circuit gives each stage a clearer boundary but adds transfer and inventory-control demands.

Comparison point	CIL	CIP
Adsorption timing	Activated carbon is added while leaching is still occurring.	Adsorption generally follows the leaching stage.
Process arrangement	Leaching and adsorption occur together.	Leaching is separated from the later adsorption stages.
Operational implication	An upset can affect dissolution and adsorption at the same time.	Stages have clearer boundaries, but transfer and inventory-control demands are added.

Making a practical CIP vs CIL decision

A CIP vs. CIL review should start with ore response, preg-robbing behavior, required residence time, water balance, operating skill, and expected variability. The phrase CIL/CIP is often treated as a simple flowsheet choice, yet the better option is the circuit that can be controlled reliably under actual site conditions. Neither arrangement compensates for weak testwork, poor sampling, or inadequate maintenance.

How Can Hongji Mine Machinery Help Control CIL Project Risk?

Equipment selection around the complete circuit

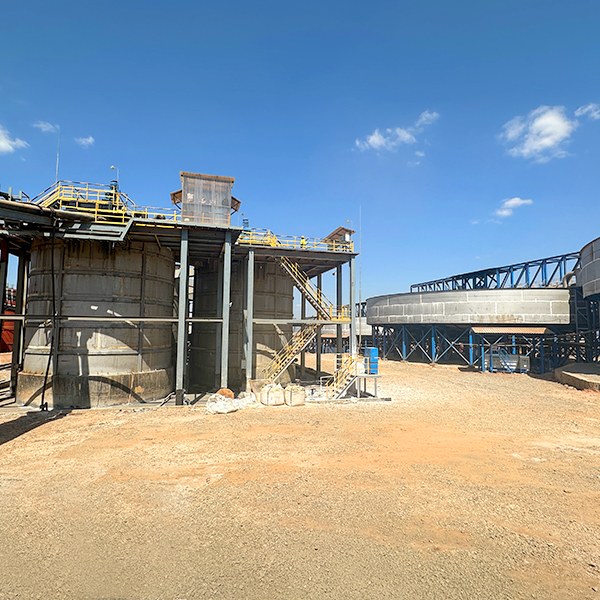

At Hongji Mine Machinery, we match gold processing plant solutions to ore characteristics, capacity, and testwork rather than treating the CIL plant as a collection of isolated machines. Our product range covers crushing, grinding, thickening, agitation, leaching, carbon handling, and downstream recovery. Our leaching tanks are intended for agitation, leaching, and carbon adsorption duties, with gas distribution and slurry mixing considered in equipment selection.

The process sequence also matters. Gold-bearing material is prepared to a suitable size and slurry density before cyanide leaching and carbon adsorption. Loaded carbon then moves to desorption and electrowinning, while regenerated carbon returns to adsorption, and treated slurry proceeds to filtration or tailings handling. We use this circuit view to identify where instrumentation, transfer equipment, or standby capacity can prevent a local fault from becoming a recovery loss.

A relevant 150 t/d CIL project example

One Peru 150 t/d gold CIL project processed quartz-vein gold ore. We supplied a solution including crushing, ball milling, agitation leaching tanks, activated-carbon adsorption columns, and auxiliary equipment. The plant was configured for 150 t/d throughput.

We reported that the integrated system maintained stable throughput even when ore conditions varied, and optimized process balancing enabled a gold recovery rate above 94%. Following installation and commissioning, operator training and ongoing maintenance support helped keep the plant running smoothly, minimizing downtime and supporting productivity.

These operating results show why risk control begins with equipment matched to ore and throughput, then continues through commissioning, process balancing, operator training, and maintenance. For a buyer planning a new CIL gold plant or an upgrade, we recommend testwork and a site-specific process review before final equipment sizing.
