What Design Considerations Help Ensure Stable Operation of a Gold Elution Circuit?

What Factors Influence the Stable Operation of a Gold Elution Circuit?

How Does the Gold Elution Circuit Work in the Overall Processing System?

The gold elution circuit plays a key role in gold recovery. It removes gold from activated carbon using heat and chemical solutions. In the broader context of a gold processing system, it comes after adsorption. Gold ions attach to carbon particles at this point. The gold CIP process includes seven operational stages. These stages are preparation of leaching pulp, cyanide leaching, carbon adsorption, gold-loaded carbon desorption, electrolysis to obtain muddy gold, de-gold carbon recycling, and treatment of leaching pulp. During the CIP process, maintaining optimal temperature and reagent concentration is crucial to improve efficiency.

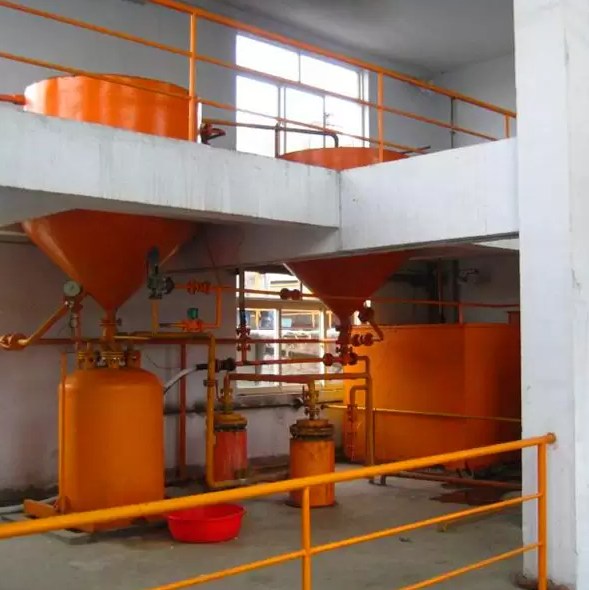

During the elution process, temperature and pressure are closely controlled. This step helps achieve efficient desorption of gold ions from the carbon surface. In a closed system, gold-loaded carbon can be rapidly desorbed and electrolyzed into gold mud and lean carbon under high-temperature (typically around 110-140°C) and high-pressure (approximately 0.3-0.5 MPa, or about 3-5 bar) conditions. The mix of heat and reagent concentration helps facilitate this transfer. Operators often use caustic sodium cyanide or similar agents.

Why Is Stability Crucial in Gold Elution Circuit Design?

Stable operation ensures that each stage of the gold elution process reaches maximum recovery efficiency. Unstable parameters such as fluctuating temperatures or inconsistent reagent dosing can lead to incomplete desorption or equipment stress. Operators maintain consistent thermal profiles and chemical balance. This practice stops unwanted variations in output quality. A stable elution circuit cuts downtime and lowers operational costs. It does so by ensuring predictable performance across multiple production runs.

Key Design Parameters for Efficient Gold Elution Performance

What Are the Core Engineering Considerations?

Engineering design directly shapes how well a gold elution circuit performs. The reactor must support a uniform temperature distribution. This action stops localized overheating or incomplete desorption zones. Heat exchangers should be properly sized to maintain steady thermal input throughout each cycle. Pressure vessels need materials that resist both cyclic loading and chemical corrosion. Repeated exposure to caustic reagents at elevated temperatures makes this choice important. These structural points together support long-term reliability.

How Do Process Variables Affect Circuit Efficiency?

The flow rate determines how long the eluent stays in contact with the activated carbon. If the flow moves too fast, desorption may stay incomplete. If the flow moves too slowly, energy use goes up. Solution concentration also affects the completeness of desorption. Higher reagent strength speeds reaction rates but raises operational cost. Balancing these variables supports optimization between energy use and recovery performance within the elution circuit.

Managing Heat, Pressure, and Chemical Balance in Gold Elution Systems

How Can Temperature Control Improve Circuit Stability?

Temperature regulation stands as one of the most critical aspect that affects system stability during the gold elution process. Precise heating stops carbon degradation that may occur at excessive temperatures. It also ensures the complete release of adsorbed metals. Automated control systems can adjust heat input dynamically based on feedback from sensors. This action keeps steady-state conditions throughout operations. Energy-efficient heaters or recuperative designs further cut operating costs without harming reliability.

What Role Does Pressure Play in Maintaining Uniform Operation?

Pressure management keeps consistent solvent penetration through carbon pores. It also prevents vapor lock or channeling within columns. Controlled pressure levels support even flow distribution across all sections of the reactor bed. Relief systems calibrated for variable conditions guarantee safe operation under transient loads. These loads often appear during startup or shutdown phases.

How Is Chemical Composition Balanced for Optimal Recovery?

Chemical equilibrium within an elution circuit sets the overall extraction efficiency. Cyanide leaching remains a core step in many plants, while cyanide-free or low-toxicity reagents are seeing growing use for safer environmental compliance. They still maintain strong performance metrics. Adjusting pH stabilizes metal complex formation during desorption reactions. Optimizing carbon adsorption and maintaining proper carbon recycling ensures efficient gold recovery and prevents precipitation that could foul equipment surfaces. Continuous monitoring of reagent strength ensures consistent extraction cycles over prolonged use.

Enhancing Operational Reliability Through Monitoring and Automation

Why Should Automation Be Integrated into Gold Elution Circuits?

Automation improves consistency by controlling key parameters such as flow rate, temperature, and reagent dosing through real-time feedback loops. Data acquisition systems record operational metrics. This step enables predictive maintenance strategies before mechanical faults develop. Integration with plant-wide control networks allows seamless coordination between upstream leaching tanks and downstream electro-winning units. The result is a synchronized production flow.

How Can Maintenance Strategies Support Long-Term Stability?

Preventive maintenance practices support sustainable operation in any industrial elution process. Scheduled cleaning avoids scaling within heat exchangers or pipelines that might restrict fluid circulation. Regular calibration of sensors guarantees accurate readings crucial for automated control accuracy. Standardizing spare parts simplifies replacement procedures during servicing intervals. This action minimizes downtime.

Hongji Mine Machinery’s Approach to Reliable Gold Elution Circuit Design

What Makes Hongji Mine Machinery’s Gold Elution Circuit Distinctive?

At Hongji Mine Machinery, we design our gold elution circuits using advanced thermal management technologies. These technologies improve both energy efficiency and operational stability across varying ore grades. Hongji Mine Machinery offers professional crusher, dryer, rotary kiln manufacturer services with free design of entire production lines. Our systems employ corrosion-resistant materials capable of sustaining high-temperature operations over extended service periods. Modular construction allows easy integration into existing plants with with minimal modifications.

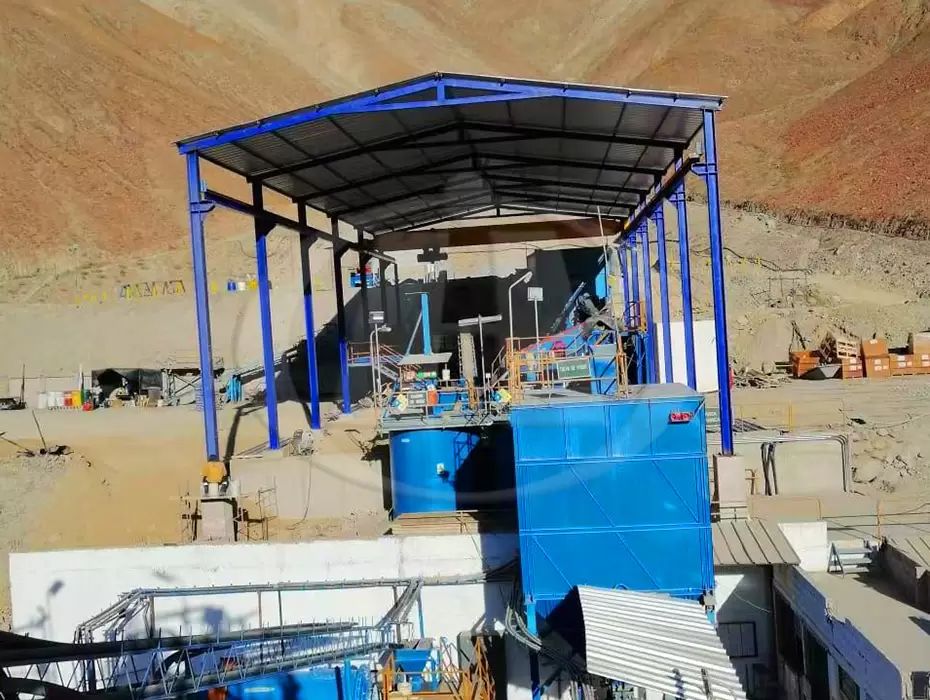

We have implemented these principles successfully in several international projects, such as the Peru 150t/d Gold CIL (Carbon in Leach) processing plant. Main equipment includes a crusher, a ball mill, an agitation leaching tank, activated carbon adsorption columns, and auxiliary equipment. This work shows our ability to deliver stable performance even under diverse mineralogical conditions.

How Does Hongji Mine Machinery Ensure Consistent Performance Across Operations?

Before delivery, each Hongji Mine Machinery system goes through thorough testing steps. These steps check pressure strength, flow consistency, and heat balance under simulated load conditions. Our smart control interfaces allow remote monitoring. Operators can follow performance data live from one central dashboard. Our engineering team offers steady technical help. This keeps the system running well across its full service life. The help starts at installation and continues through regular maintenance cycles.

FAQ

Q: What Is the Purpose of a Gold Elution Circuit in Mining Operations?

A: A gold elution circuit strips the gold stuck to activated carbon once cyanidation leaching ends. This step helps the recovered metal proceed to refining. It heads into refining through electro-winning or precipitation stages.

Q: How Can Operators Improve the Efficiency of Their Gold Elution Process?

A: Efficiency improvements come from maintaining stable temperature profiles within reactors. They also come from optimizing reagent concentrations according to ore characteristics. Ensuring proper column geometry supports even flow distribution. Deploying automated monitoring systems helps with precise variable control.

Q: What Maintenance Practices Help Extend the Life of a Gold Elution Circuit?

A: Routine inspection of valves, pumps, heaters, and pipelines, combined with timely seal replacement, prevents leaks or blockages. Regular cleaning removes scale buildup. Sensor calibration maintains measurement accuracy. All these steps contribute to reliable long-term operation within any modern elution circuit setup used by Hongji Mine Machinery clients worldwide.
