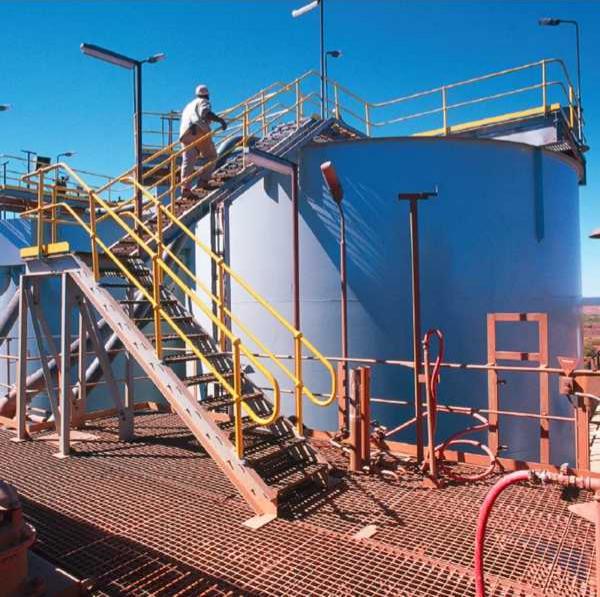

How Does a CIP Gold Processing Plant Work for Gold Recovery?

What Is a CIP Gold Processing Plant and How Does It Work?

A Carbon-in-Pulp (CIP) gold processing plant serves as a facility built to pull gold from ore. It relies on cyanidation and carbon adsorption. The leaching method works well for gold recovery. A CIP gold processing plant fits argillaceous oxidized ore, flotation gold concentrate, and gravity tailings. This setup delivers solid recovery rates and keeps costs in check. It ranks among the trusted approaches in gold metallurgy today.

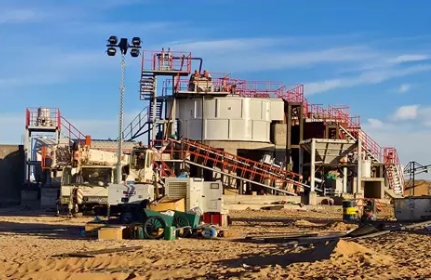

How Does the Carbon-in-Pulp (CIP) Process Recover Gold?

The gold CIP process starts by dissolving gold from crushed ore in a cyanide solution. Gold CIP stands as a method of gold extraction by cyanidation. It uses carbon adsorption on monovalent gold cyanide [KAu (CN)2] after cyanide leaching of gold-bearing materials. Activated carbon then takes in the dissolved gold ions from the leach solution. This creates loaded carbon. The gold gets stripped later through desorption and electrowinning. The steps support steady recovery with little loss, even on low-grade ores.

Why Is CIP Preferred Over Other Gold Extraction Methods?

CIP technology brings clear edges over older methods like amalgamation or direct cyanidation. It uses fewer chemicals and lowers environmental risks through better reagent control. The CIP plant gold mining machine setup also supports high metal recovery while holding down costs. These points make CIP processing a fit for sustainable mining work today.

What Are the Main Stages in a CIP Gold Processing Plant?

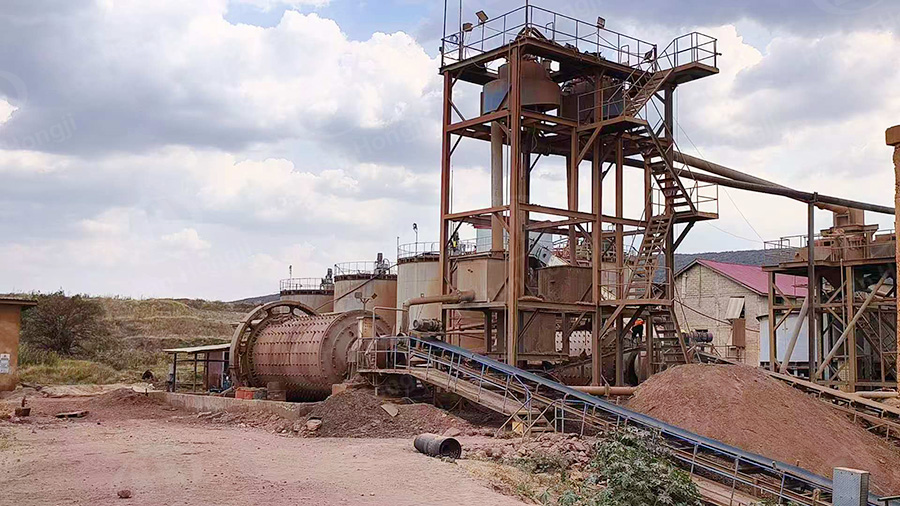

Ore Preparation and Crushing Stage

Raw ore first goes through crushing and grinding. This step boosts surface area for leaching. Grind the gold-containing material to a particle size fit for cyanidation, usually under 28 mesh. Remove impurities like sawdust. Concentrate and dehydrate the pulp until it reaches 45%-50% solids. Even particle sizes help ore contact the leach solution better and raise dissolution rates. Screening takes out oversized bits before the next steps.

Leaching and Adsorption Stage

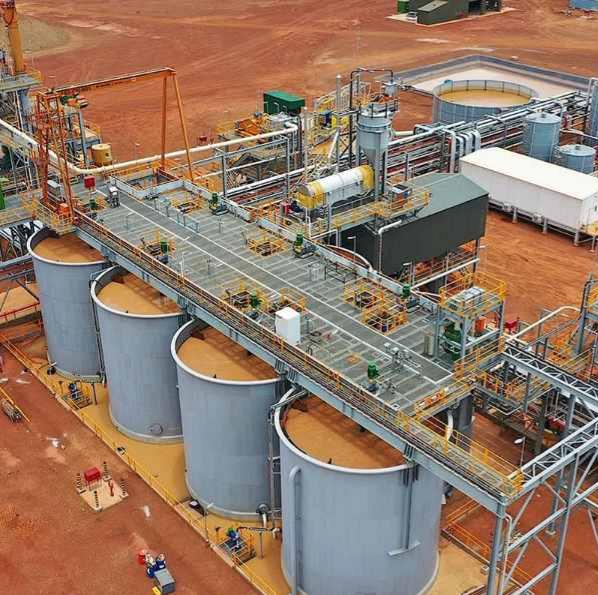

The milled slurry moves into large tanks. There, it mixes with cyanide solution under steady agitation. Activated carbon gets added to pull out dissolved gold ions. The gold CIP process covers seven main steps. These include leaching pulp prep, cyanide leaching, carbon adsorption, gold-loaded carbon desorption, electrolysis for muddy gold, de-gold carbon recycling, and leach pulp treatment. Mixing keeps solids, liquids, and carbon in good contact. This lifts adsorption rates inside each CIP tank.

Hongji Mine Machinery’s agitation tanks support steady mixing while cutting energy use. In the 300t/d Suriname project, this stage reached over 94% recovery through tuned tank design and reagent control.

Desorption, Electrowinning, and Smelting Stage

Loaded carbon moves to desorption under set conditions. Gold moves into a rich solution. In a closed system, gold-loaded carbon desorbs and electrolyzes quickly into muddy gold and lean carbon under high temperature and pressure. The muddy gold can be smelted into ingots after simple pickling and cleaning. Electric current then plates the gold onto cathodes.

The end product takes a muddy or sponge form. It is refined by smelting into bullion bars for sale. Lean carbon gets chemical treatment before reuse in adsorption. This keeps performance steady over many cycles.

How Is Process Efficiency Maintained in a CIP Gold Plant?

What Factors Affect Gold Recovery Rates?

Gold recovery in a CIP plant depends on several connected operating conditions. Stable temperature supports the leaching reaction, while proper pH keeps the slurry alkaline and reduces unnecessary cyanide loss. Cyanide concentration must remain high enough to dissolve exposed gold but should not be overdosed, as excessive addition increases chemical and tailings-treatment costs.

Activated carbon quality is equally important. Carbon with low activity, surface contamination, or poor regeneration absorbs gold more slowly and may leave more dissolved gold in the final slurry. Agitation, slurry density, oxygen supply, and retention time also affect how well the ore, solution, and carbon contact one another.

Key Factor	Effect on Gold Recovery	Main Control Focus
Temperature	Influences leaching and adsorption reaction rates	Keep tank conditions stable and avoid sudden changes
pH level	Maintains safe alkaline conditions and limits cyanide loss	Monitor continuously and adjust lime dosing
Cyanide concentration	Controls the dissolution of exposed gold	Match dosing to ore demand and residual cyanide levels
Carbon activity	Determines how quickly dissolved gold is adsorbed	Check carbon quality, washing, and regeneration
Agitation and slurry density	Affect mixing, suspension, and reagent distribution	Prevent dead zones and maintain steady pulp flow
Retention time	Gives gold enough time to dissolve and adsorb	Balance tank volume with the plant feed rate

These factors should be reviewed together. For example, a drop in recovery may appear to be caused by low cyanide, but weak agitation, poor oxygen transfer, inactive carbon, or short retention time may be the real reason. Increasing reagent dosage without checking the full circuit can raise costs without solving the problem.

Monitoring and Control Systems for Process Optimization

Modern CIP plants use sensors to monitor flow rate, pH, reagent concentration, temperature, tank level, and slurry density in real time. Operators can respond quickly when conditions move away from the target range. This improves recovery consistency, reduces reagent waste, and strengthens process safety.

At Hongji Mine Machinery, intelligent control systems are integrated into CIP plant designs. Centralized monitoring reduces the need for repeated manual adjustment, while alarm and trend functions help operators identify unstable flow, abnormal dosing, or equipment wear before these problems cause a shutdown.

In Hongji Mine Machinery’s 300 t/d Suriname project, coordinated agitation-tank design and reagent control helped the leaching and adsorption stage achieve a recovery rate of more than 94%. The case shows that stable recovery comes from combined control of equipment, reagents, carbon, and slurry conditions rather than from one parameter alone.

Routine inspections remain important even in an automated plant. Regular checks of pumps, agitators, interstage screens, dosing systems, and carbon-transfer equipment can detect wear early, reduce unplanned downtime, and keep production output stable.

How Does Hongji Mine Machinery Support Efficient CIP Gold Processing?

Hongji Mine Machinery’s Expertise in Designing CIP Gold Processing Plants

Hongji Mine Machinery builds full turnkey systems for different ores. These cover argillaceous oxidized ore and flotation concentrates. Designs start from feed analysis and match each case.

The engineering team adds automation. This holds output steady and trims energy across crushing to smelting. Full support covers install, startup, and training so clients reach strong returns on CIP plant projects.

Key Features of Hongji Mine Machinery’s CIP Gold Processing Solutions

Integrated System Design for Seamless Operation

Modular layouts ease setup and allow later growth. This suits miners who scale output step by step. Compact mini-CIP units fit inside larger lines, as seen in projects in Ghana and Peru.

Energy-Efficient Equipment Configuration

Tank shapes cut power needs during agitation and pumping. Running costs drop without loss in recovery. This sets Hongji Mine Machinery’s CIP gold processing solutions apart in a competitive field and backs sustainable mining practices.

FAQ

Q: What Is the Difference Between CIP and CIL Processes?

A: CIP adds activated carbon after leaching. CIL adds it during the leach stage. Both recover metal well. CIP gives tighter control over adsorption timing. This helps with complex ores that contain several metals.

Q: How Long Does It Take to Complete the CIP Process?

A: Time varies with ore type, tank size, and circuit layout. The full run from crushing to bullion may take several days. Automation cuts manual checks and keeps throughput steady in modern CIP gold processing plants.

Q: Can Small Mining Operations Use a CIP System?

A: Yes. Modular versions let smaller teams use the same method at lower volumes. Recovery rates stay high, matching those of larger plants. The approach gives a practical path for responsible small-scale gold work worldwide.
