The most common type of chrome ore is chromite, which is an iron-containing chromium oxide and an important chrome ore resource in industry. Due to its high specific gravity and magnetic properties, chromite is usually separated by gravity separation and magnetic separation in the beneficiation plant.In the field of chromite beneficiation, the type and characteristics of the mineral are the key factors in selecting the beneficiation process, so a full understanding of the ore is required before beneficiation.

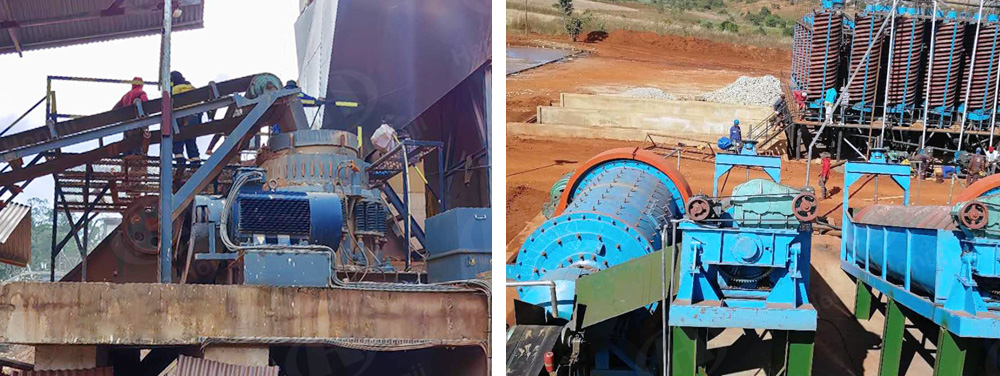

1.Comminution & Liberation (Crushing & Grinding)

• Primary & Secondary Crushing: Run-of-Mine (ROM) ore is reduced in size using a heavy-duty Jaw Crusher, followed by a Cone Crusher operating in a closed circuit with vibrating screens to ensure a uniform feed size (typically -3 mm).
• Controlled Grinding (The Rod Mill Advantage): The screened ore enters a Rod Mill rather than a traditional ball mill. Because chromite is highly brittle, ball mills tend to over-grind the mineral, creating ultra-fine "slimes." Rod mills provide line-contact grinding, minimizing over-shattering and preserving optimal particle sizes for gravity recovery.

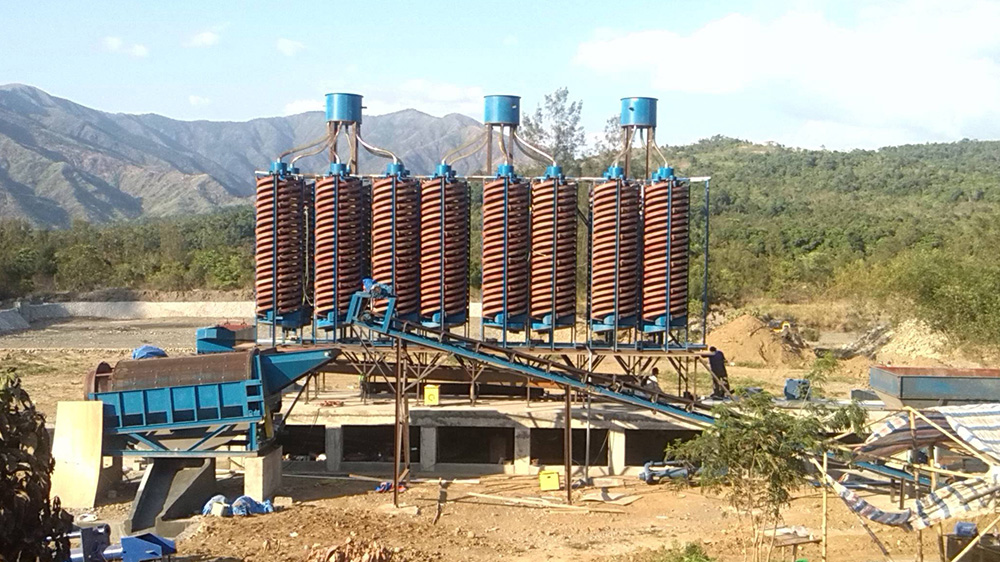

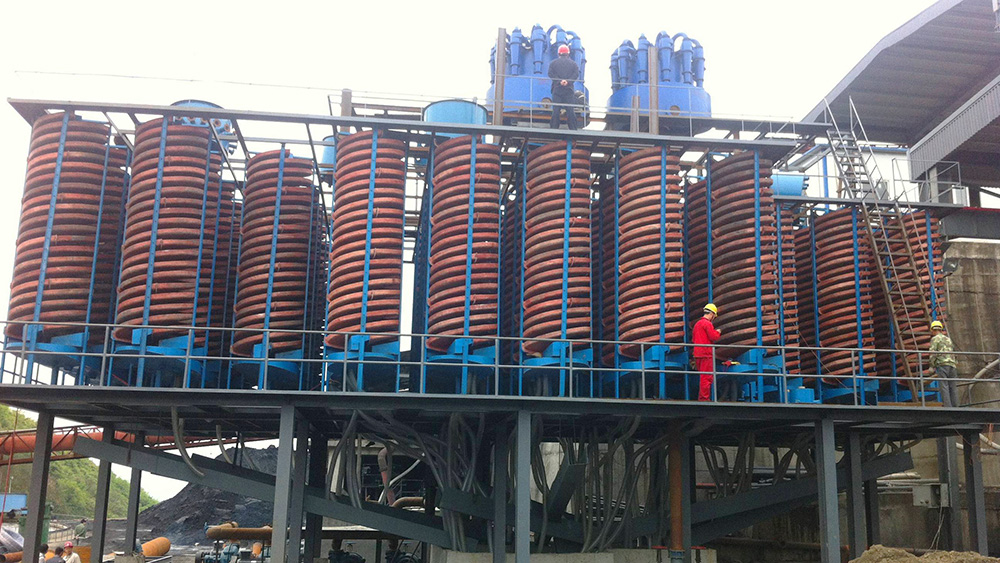

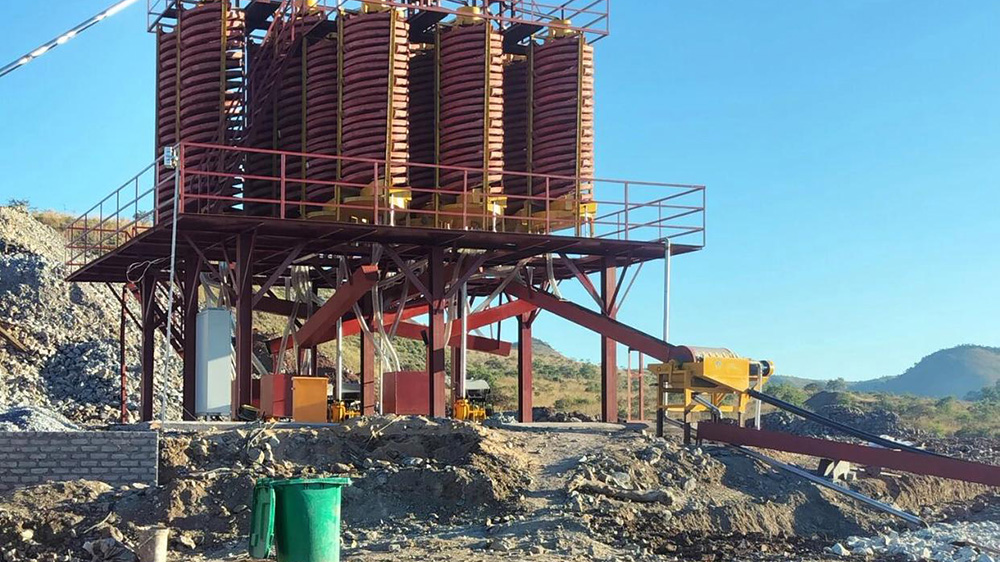

2.Chrome ore gravity separation process

Gravity separation is an effective method in chrome ore beneficiation technology. It is mainly used to process coarse-grained materials and can effectively separate chromite from minerals. The core of gravity separation technology is to use the effect of gravity field to make minerals with different densities move at different speeds in water or air through equipment such as sedimentation, jigging or shaking table, so as to separate target minerals from gangue minerals. However, it is worth noting that gravity separation technology is not suitable for processing fine-grained chrome ore. Therefore, gravity separation is often combined with other mineral processing methods such as magnetic separation and flotation to achieve ideal mineral processing effects.

3.Chrome ore magnetic separation process

Chromium ore usually contains ferromagnetic mineral chromite, which can be attracted in the magnetic field, thereby separating chromite from other non-magnetic or weakly magnetic impurity minerals. Magnetic separation can significantly improve the grade of chromium ore, and by precisely controlling the magnetic field strength and processing efficiency, efficient recovery of chromite can be achieved.

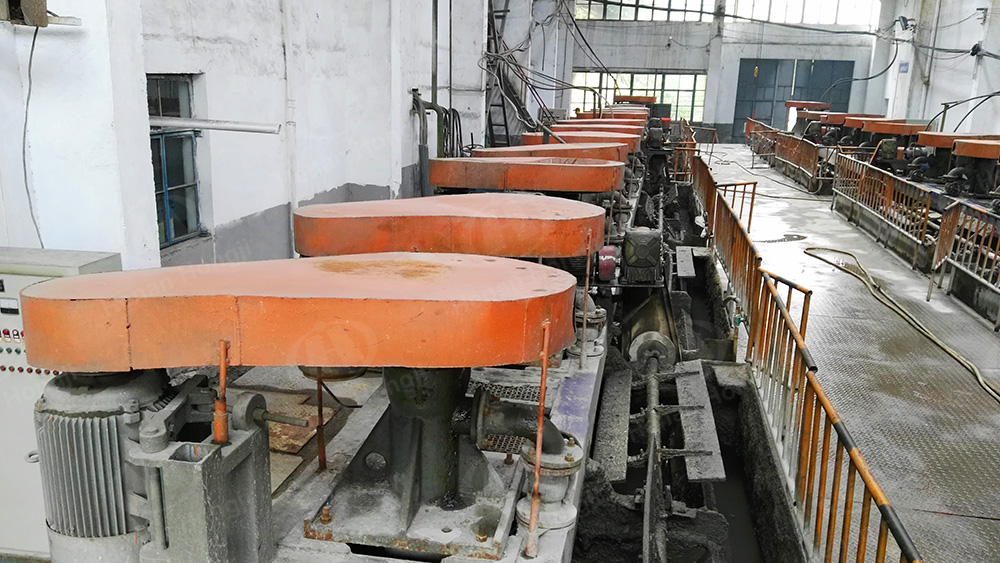

4.Chrome ore flotation process

Flotation is a commonly used method for chromium ore beneficiation. Unlike gravity separation, flotation is more suitable for processing fine-grained chromium ore. By accurately controlling various parameters such as pH value, type and dosage of flotation reagents, and flotation time during the flotation process, the overall beneficiation efficiency and product quality can be improved while improving the recovery rate of chromite. When processing complex paragenetic ores, the use of multi-stage flotation and concentration can achieve the separation of multiple different minerals, obtain high-grade chromium concentrate, and efficiently utilize chromium ore resources.

5.Key points in the chrome ore beneficiation process

When using the gravity separation process to treat chromium ore, it is necessary to control the flow rate and density of the slurry. A slight change in the slurry flow rate will affect the separation efficiency of the minerals.
The adjustment of the magnetic field strength in the magnetic separation process is also a key point in the chromium ore beneficiation process, which will directly affect the recovery rate of magnetic minerals.
In the chromium ore flotation process, the stability of the foam and the amount of reagent added are two key factors affecting the beneficiation indicators.

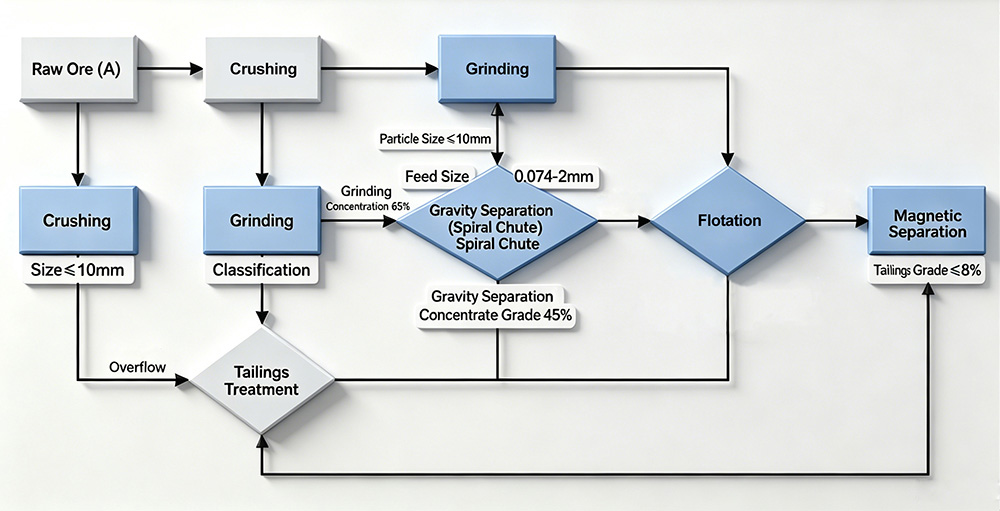

In actual production, the design of chrome ore dressing process and the configuration of dressing equipment should be specifically analyzed in combination with the characteristics of ore mineral composition, embedded particle size, density difference, etc., and fully consider the production scale, process requirements, economic benefits and environmental protection standards for optimization and adjustment.
