How Does CIL Gold Processing Affect Operating Stability and Carbon Management in Daily Production?

What Is CIL Gold Processing and How Does It Work?

Key Principles of the Carbon-in-Leach Process

CIL, or Carbon-in-Leach, is a hydrometallurgical method. It merges leaching and adsorption into one continuous process. The goal is efficient gold extraction. In a CIL gold processing plant, gold dissolves in a cyanide solution. At the same time, it adsorbs onto activated carbon particles. This integration cuts the time needed for extraction. It also raises recovery efficiency when compared with conventional cyanidation.
The leaching method works well and sees wide use for gold extraction. A carbon-in-pulp (CIP) plant is mainly suitable for argillaceous oxidized ore, flotation gold concentrate, and gravity tailings. CIP keeps leaching and adsorption in separate stages. CIL runs both at once. This setup gives faster kinetics and better contact between the slurry and carbon particles.

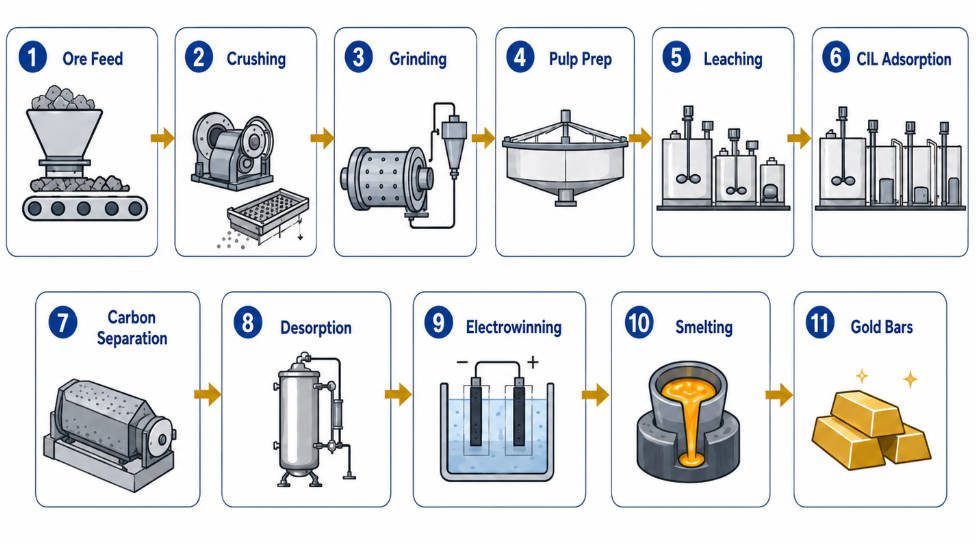

Main Stages in CIL Gold Processing

• Crushing and Grinding: The ore is crushed and ground. This step frees fine gold particles from the surrounding minerals. Grind the gold-containing material to a particle size that suits cyanidation. The size is generally less than 28 mesh. Remove impurities such as sawdust. Concentrate and dehydrate the pulp until its concentration reaches 45%-50%.
• Leaching Stage: Cyanide and oxygen dissolve the exposed gold into solution inside agitated tanks. The steps match those of conventional cyanidation. Five to eight mixing tanks are used in most cases.
• Carbon Adsorption: Activated carbon goes straight into the leaching tanks. There, it adsorbs the dissolved gold ions. The cyanide pulp moves into the stirring adsorption tank, also called the carbon slurry tank. Carbon is added to the leaching tank. The carbon picks up the gold from the pulp and becomes gold-loaded carbon. Once adsorption finishes, a carbon extraction screen separates the carbon from the pulp.
• Desorption and Electrowinning: Gold-loaded carbon is desorbed under high temperature and pressure. Electrolysis then recovers the metallic gold. In a closed system, the gold-loaded carbon is rapidly desorbed and electrolyzed. Muddy gold and lean carbon result under high-temperature and high-pressure conditions. The muddy gold can be smelted into gold ingots after simple pickling and impurity removal.
• Smelting: The final stage produces pure bullion ready for refining.

How Does CIL Gold Processing Influence Operating Stability?

What Factors Affect Daily Operational Balance in a CIL Plant?

A CIL plant must keep operating parameters steady. Only then can output remain stable. Slurry density consistency affects leaching efficiency because it changes reagent diffusion rates. Proper pH also matters. It stops cyanide losses through volatilization or unwanted metal precipitation that could slow adsorption. Balanced carbon concentration prevents fouling or poor use of adsorption capacity.

Managing Process Variables for Continuous Operation

Real-time control systems adjust temperature, flow rate, and reagent dosing. These adjustments stop fluctuations that could break steady-state operation. Preventive maintenance on pumps, agitators, and pipelines reduces downtime from mechanical issues. Skilled operator training helps staff make quick fixes when readings stray. This training is key for steady throughput in CIL gold processing systems.

Why Is Carbon Management Crucial in CIL Gold Processing?

How Carbon Quality Affects Gold Recovery Efficiency

Activated carbon quality directly shapes overall recovery performance. A high surface area and a uniform pore structure improve the adsorption kinetics of [KAu(CN)₂] complexes that form during leaching.
The desorbed lean carbon is first soaked in a 1.5% ~ 2.0% nitric acid solution for 24 hours. This removes calcium. It is then washed with clean water until neutral before it returns to the adsorption cycle.
This regeneration process brings back activity lost through fouling or chemical degradation during operation.

Strategies for Effective Carbon Circulation and Regeneration

Efficient circulation spreads loading evenly across all tanks in a CIL plant circuit. Regular screening removes worn or broken granules before they hurt performance. Controlled thermal regeneration revives spent carbon without harming its structure. This step is vital for keeping recovery rates high in continuous operations.

Enhancing Daily Production Through Process Optimization

How Can Process Control Improve Recovery Rates?

Modern automation allows precise reagent control through automated dosing systems. These systems hold chemical balance steady and cut waste. Advanced sensors spot early changes in oxygen levels or cyanide concentration. Timely adjustments keep recovery efficiency at its peak in CIL vs CIP operations. Data analytics supports further gains by spotting performance trends across production cycles.

Environmental Considerations in Daily Operations

Environmental care is part of modern CIL gold processing practices. Good cyanide management lowers ecological risk while keeping precious-metal dissolution efficient. Water recycling systems cut consumption by returning filtered process water to the circuit after filtration. A filter press treats the leaching pulp. The slag is stacked, and the water is recycled. Proper tailings handling meets environmental rules through controlled discharge.

Hongji Mine Machinery’s Contribution to Efficient CIL Gold Processing Systems

What Makes Hongji Mine Machinery’s CIL Technology Reliable?

At Hongji Mine Machinery, we design integrated CIL plant solutions. These solutions stress automation reliability, energy efficiency, and safety control features. The features suit many ore types. We design integrated systems that focus on automation, energy efficiency, and safety control across equipment such as crushers, ball mills, rotary kilns, and dryers.

Our modular design supports flexible installation at mines of different sizes. It works for small pilot setups as well as full-scale plants. The approach suits CIL and CIP plant design projects in India that need to adapt to varying ore grades.

How Hongji Mine Machinery Supports Operational Stability in Daily Production

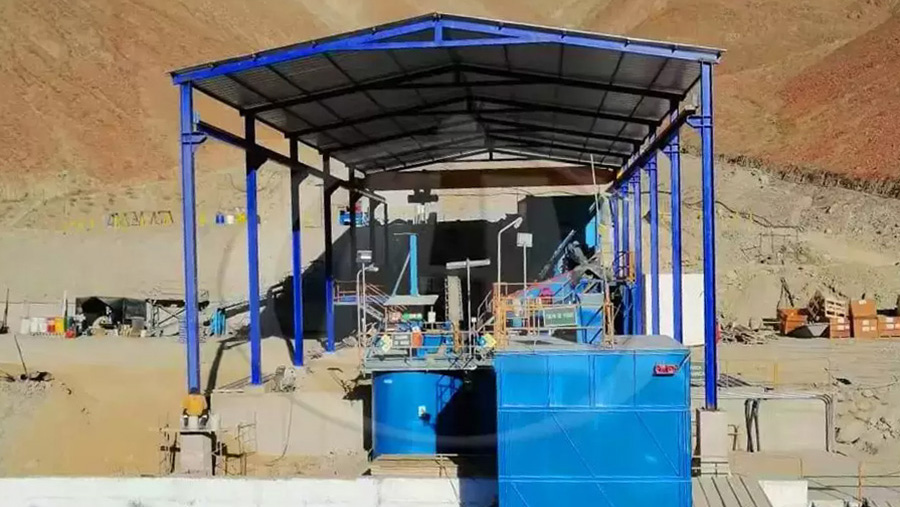

We tailor every CIL gold processing plant to site-specific ore traits. This tailoring lowers reagent use and energy demand while supporting balanced carbon management on site. At our Peru 150t/d Gold CIL (Carbon in Leach) processing plant project, we used quartz vein ores. Main equipment included a crusher, a ball mill, an agitation leaching tank, and activated carbon columns. The project shows how our integrated system keeps throughput steady and reaches recovery rates above 94% through optimized process balancing, as seen at other sites worldwide.

Our technical support teams run hands-on training. The training raises operator skill in holding steady-state balance across all parameters. Our R&D division keeps refining system designs to match changing environmental rules around the world.
